ASSEMBLY INSTRUCTIONS

holes in the base of the shaft. Lock the guard

in place by tightening the two screws (M) with a

Phillips screwdriver (not included).

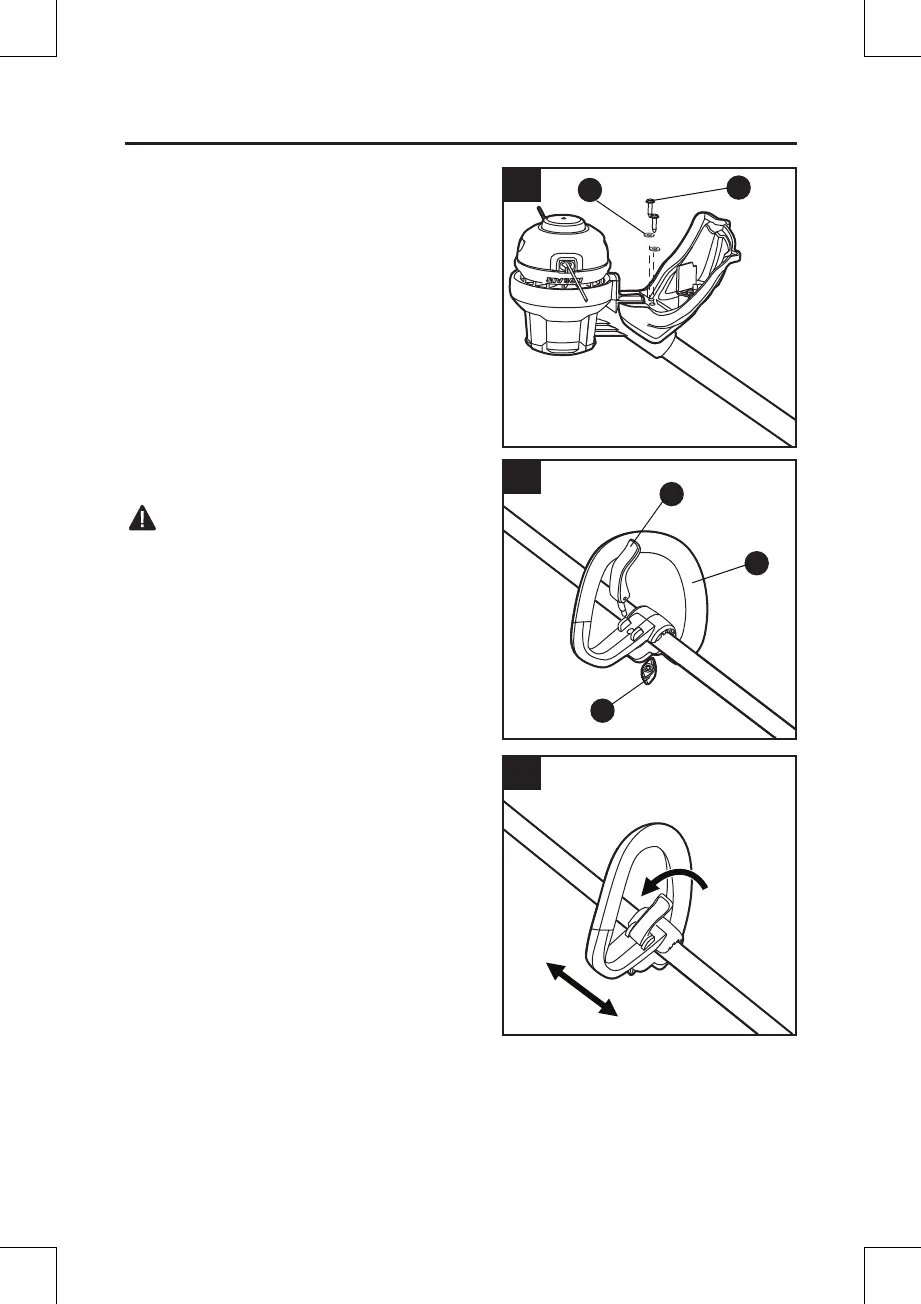

3. Mounting the Front-Assist Handle

WARNING

• Always remove the battery pack from the

product when you are assembling parts, making

adjustments, cleaning, or when the product is

not in use.

a. Remove the battery pack (not included) from

the trimmer.

b. Remove the screw knob (J) and the adjusting

lever (I) from the front-assist handle (H).

c. To attach the front-assist handle on the shaft,

insert the adjusting lever into the front-assist

handle, and then tighten the screw knob.

Make sure that the front-assist handle faces

upwards so that it points toward the top of the

handle.

d. Lower the adjusting lever to secure the front-

assist handle onto the shaft so that it cannot

move on the shaft during operating.

To Adjust the Front-Assist Handle Position

The handle should be adjusted so that your front

arm will be straight when using the trimmer.

To adjust the front-assist handle (H) position,

lift the adjusting lever so that the front-assistant

handle can be moved to the desired position of the

shaft. Lower the adjusting lever so that the handle

cannot move on the shaft during operating.
