Kobalt 3DPCWB2013 User Manual

11

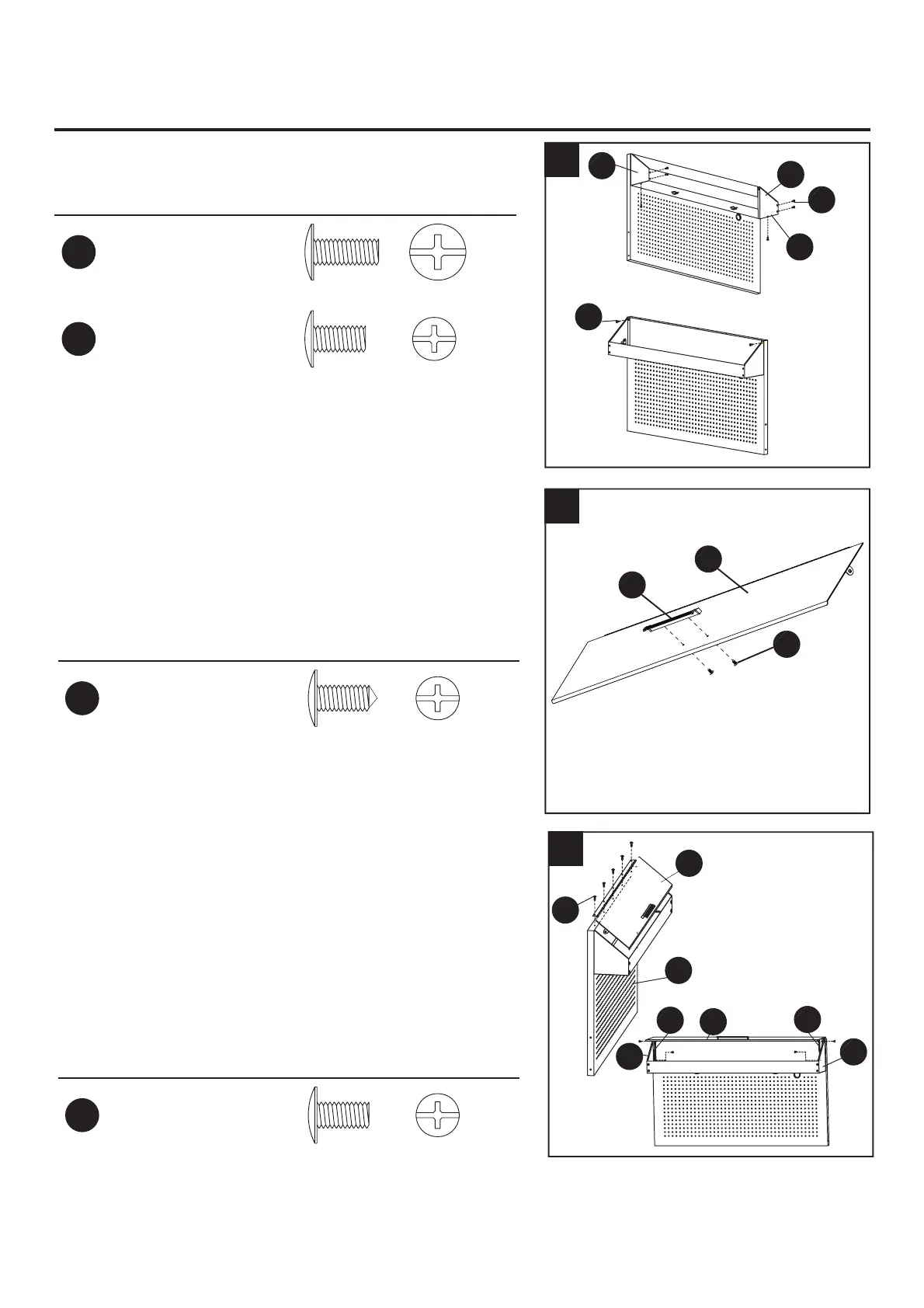

ASSEMBLY INSTRUCTIONS
18. Secure the left and right storage cage side panels
(23L and 26R) with screws (AA and BB).
Hardware Used
AA
M6x10 mm
Screw
x 2
BB
M4x6 mm
Screw
x6
BB
AA
27
25
26R
23L
18
19
20. Align the hinged edge of the storage cage lid (25)
19.Align the storage cage lid (25) with the storage cage lid
drawer pull (34). Secure using the screws (DD).
with the top of the pegboard (28). Secure using
screws (BB). Remove the screws from inside the
storage cage installed on the left storage cage side
panel (23L), the storage cage lid (25) and the right
storage cage side panel (26R). Install the left hinge
(24L) and the right hinge (24R) using the removed
screws.
Note: Attach the short leg of the hinge to the sides of the
cage and fold the hinge forward.
Hardware Used
BB
M4x6 mm
Screw
x 5
Hardware Used
DD
M3.2x6 mm
Screw
x 2
25
28
BB
23L
24L
25
24R
26R
20
34
DD
