ASSEMBLY INSTRUCTIONS

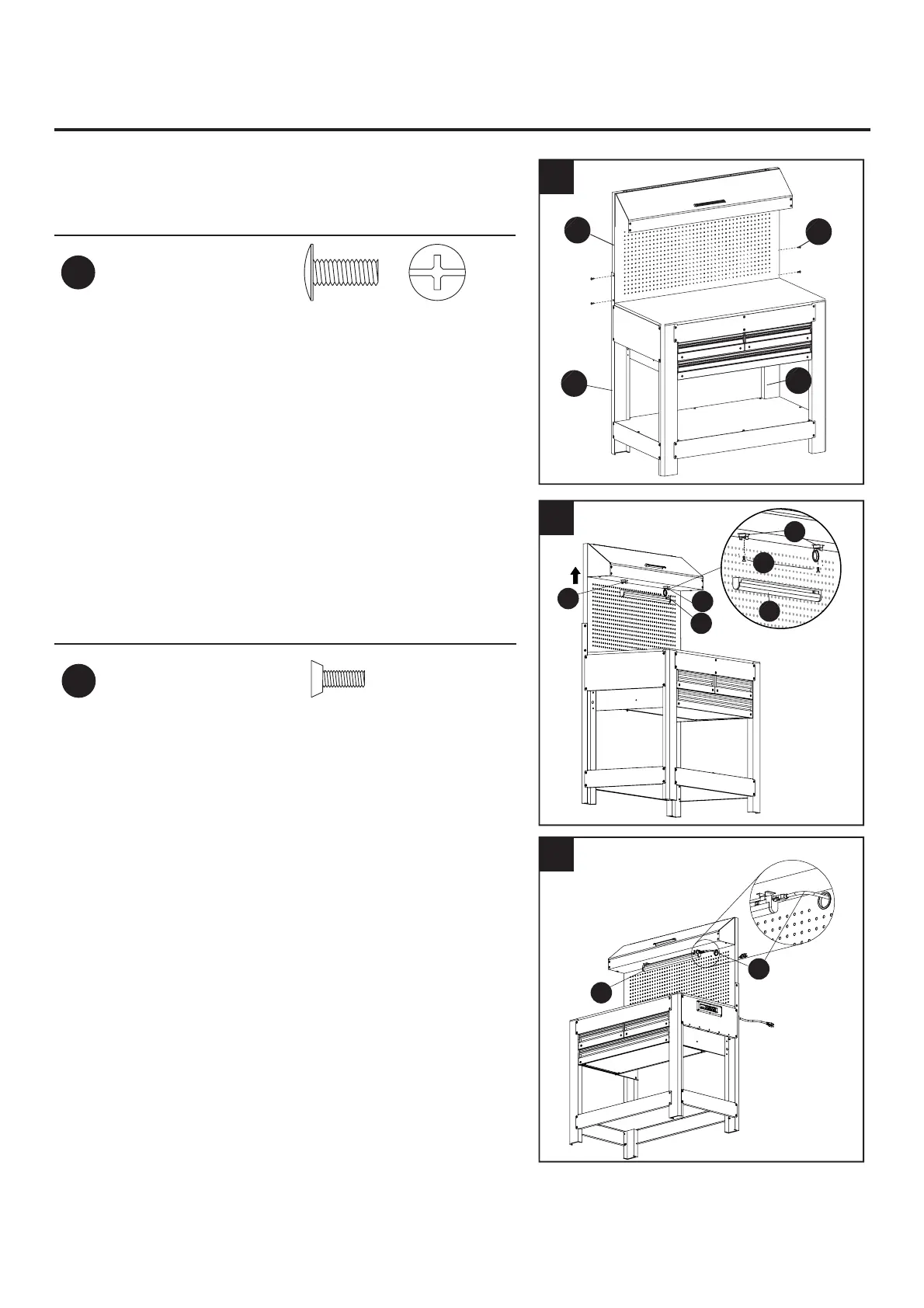

22. Attach the light support brackets (29) to the
underside of the storage cage bottom panel (27)
using screws (CC) packaged with the light support
bracket (29). The light support bracket (29) is packed
in the box with the light (30).
Hardware Used
CC
M4x8 mm
Screw
x 2
23. Install the light (30) into the light support brackets
(29). Feed the light power cord (31) through the
grommet in the pegboard (28). Plug the light power
cord (31) into the light (30).
21. Attach the pegboard (28) to the left rear leg (1L) and
the right rear leg (5R) using screws (AA).
Hardware Used
AA
M6x10 mm
Screw
x 4
22
21
23
5R
1L
28
AA
29
29
30
27
30
CC
29
30
