ASSEMBLY INSTRUCTIONS
4. To Attach/Remove Battery Pack
To Attach Battery Pack
a. Align the raised portion of the battery pack with
the grooves on the battery port, then slide the

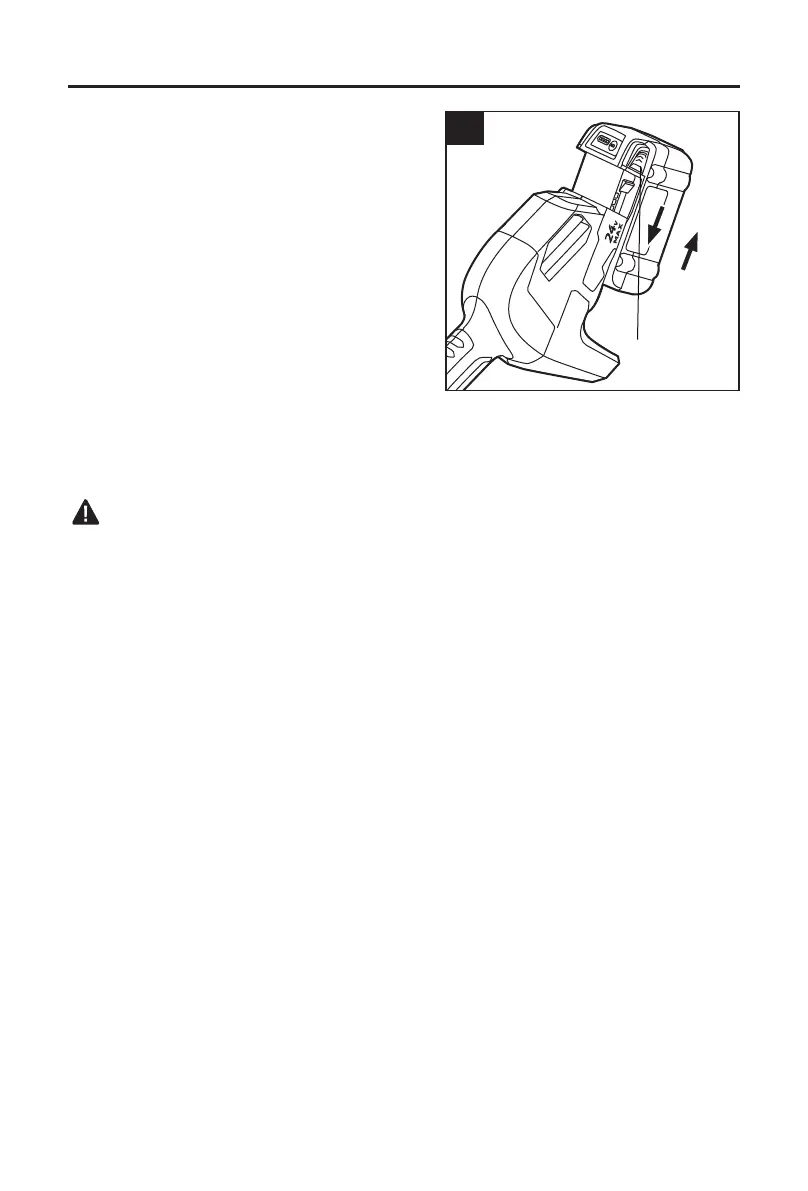

battery pack onto the tool, as shown in Fig. 4.
b. Make sure that the latches on the battery
pack snap into place and the battery pack is
secured to the tool before beginning operation.
NOTICE: When placing the battery pack on the
tool, be sure that the raised rib on the battery pack
aligns with the groove on the tool and the latches
snap into place properly. Improper assembly of
the battery pack can cause damage to internal
components.
To Remove Battery Pack
a. Press the battery-release buttons to release the battery pack.
b. Pull the battery pack backward to remove it from the tool.
WARNING
• Battery tools are always in operating condition. Therefore, the trigger switch should always be
in the OFF position when the tool is not in use or when carrying the tool at your side.
4
Battery-release
Button
