OPERATING INSTRUCTIONS
11. Bevel Cutting
a. Remove the battery pack.
b. Adjust the angle of cut to any desired setting
between 0° and 50°. Securely tighten the
bevel-locking knob (Q).
c. Replace the battery pack.
d. Align the cutting line with the 45° blade-guide
notch (L) on the base shoe (M) when making
45° bevel cuts.
e. Make a trial cut in scrap material along a
guideline to determine the amount to offset the
guideline on the cutting material.
WARNING
• Attempting a bevel cut without having the bevel-locking knob securely locked in place can
result in serious injury.

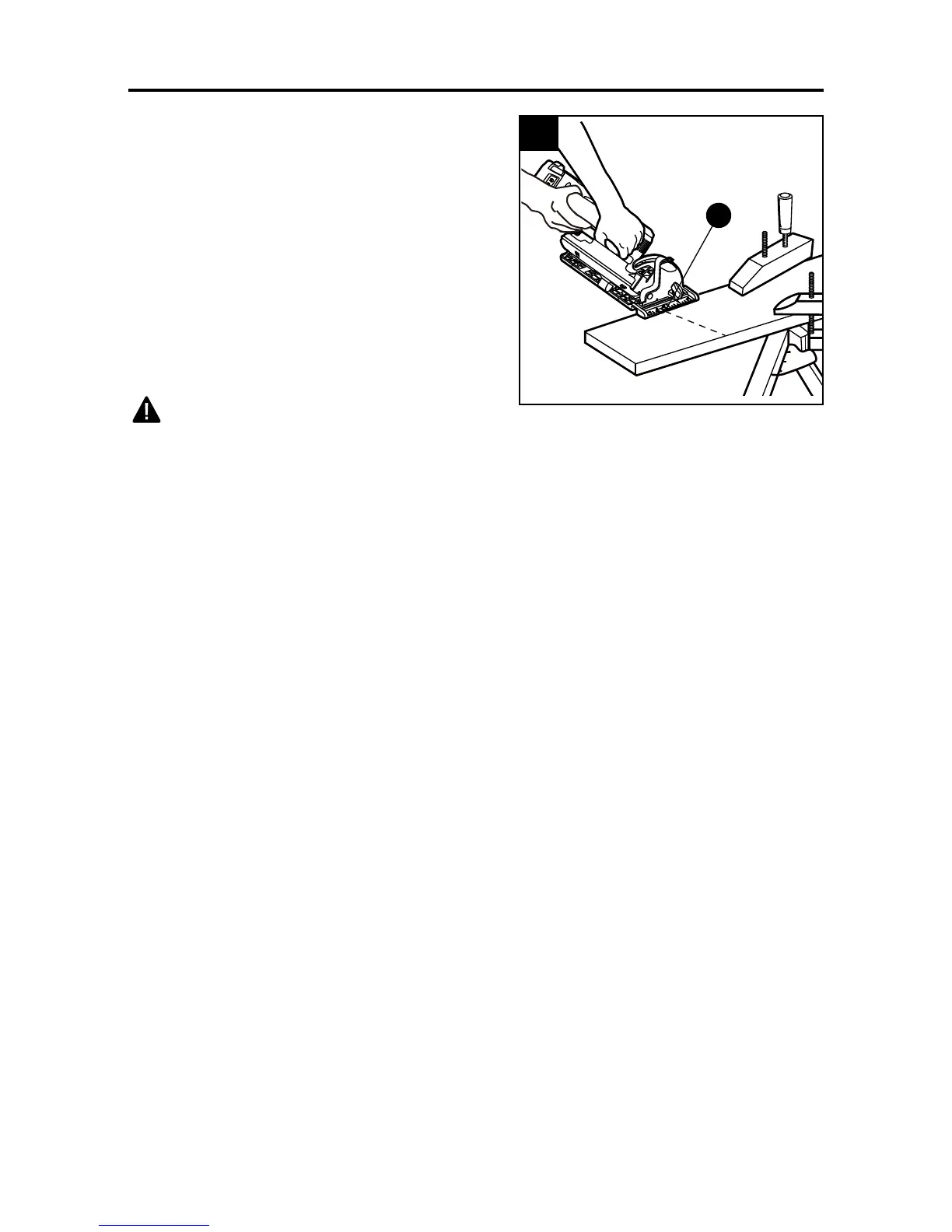

f. Hold the saw rmly with both hands, as shown.
g. Rest the front edge of the base shoe on the workpiece without touching the blade to the
workpiece.
h. Start the saw and allow the blade to reach full speed.
i. Guide the saw into the workpiece and make the cut.
j. Release the trigger switch and allow the blade to come to a complete stop.
k. Lift the saw from the workpiece.
11
L
