3

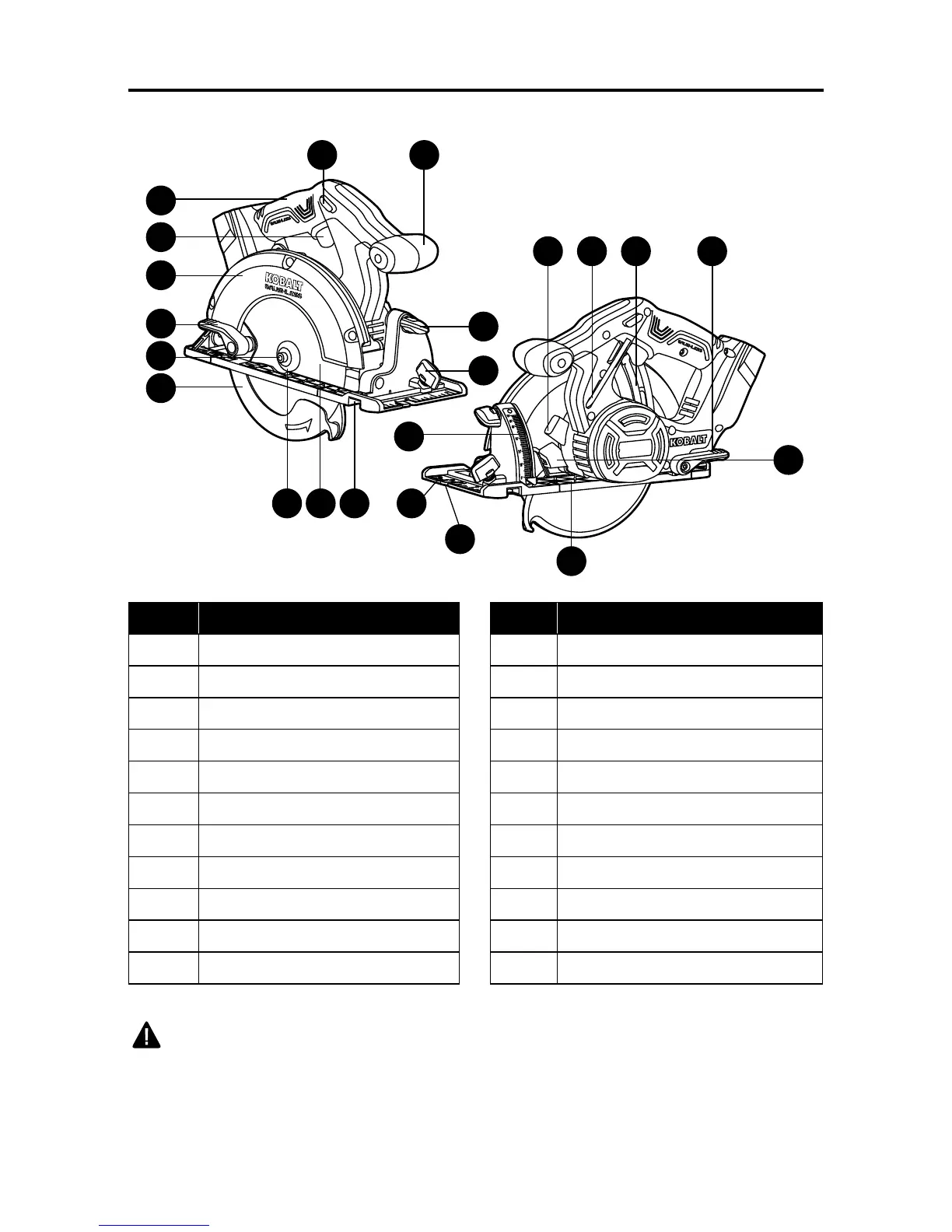

PACKAGE CONTENTS
Q
P
O
R S T U
V
C
D
E
F
G
H
B
I J K N
L
M
A
PART DESCRIPTION PART DESCRIPTION
A Auxiliary handle L 45° blade-guide notch
B Lock-off button M Base shoe
C Main handle N 90° blade-guide notch
D Trigger switch O Bevel scale
E Upper blade guard P Edge-guide locking knob
F Blade-guard lever Q Bevel-locking knob
G Blade bolt R Spindle-lock button
H Lower blade guard S Blade wrench
I Blade outer ange T Depth scale
J Blade U Depth-locking lever
K Edge-guide slot V LED worklight
WARNING
• Remove the tool from the package and examine it carefully. Do not discard the carton or any
packaging material until all parts have been examined.
• If any part of the tool is missing or damaged, do not attach the battery pack or use the tool
until the part has been repaired or replaced. Failure to heed this warning could result in
serious injury.
