ASSEMBLY INSTRUCTIONS
4. To Attach/Remove Battery Pack
To Attach Battery Pack
a. Make sure that the switch is in the OFF
position.
b. Align the raised portion on the battery pack
(not included) with the grooves on the bottom
of the tool, then slide the battery pack onto the
tool as shown.
c. Ensure that the battery-release buttons on the
battery pack snap into place and the battery
pack is secured to the tool before beginning
operation.
NOTICE: When placing the battery pack on the
tool, be sure that the raised rib on the battery pack
aligns with the groove on the tool and the latches snap into place properly. Improper assembly
of the battery pack can cause damage to internal components.
To Remove Battery Pack
a. Make sure that the switch is in the OFF position.
b. Press the battery-release buttons to release the battery pack.
c. Pull rearward on the battery pack to remove it from the tool.
WARNING
• Battery tools are always in operating condition. Therefore, the trigger switch should always be
in the OFF position when the tool is not in use or when carrying the tool at your side.
4

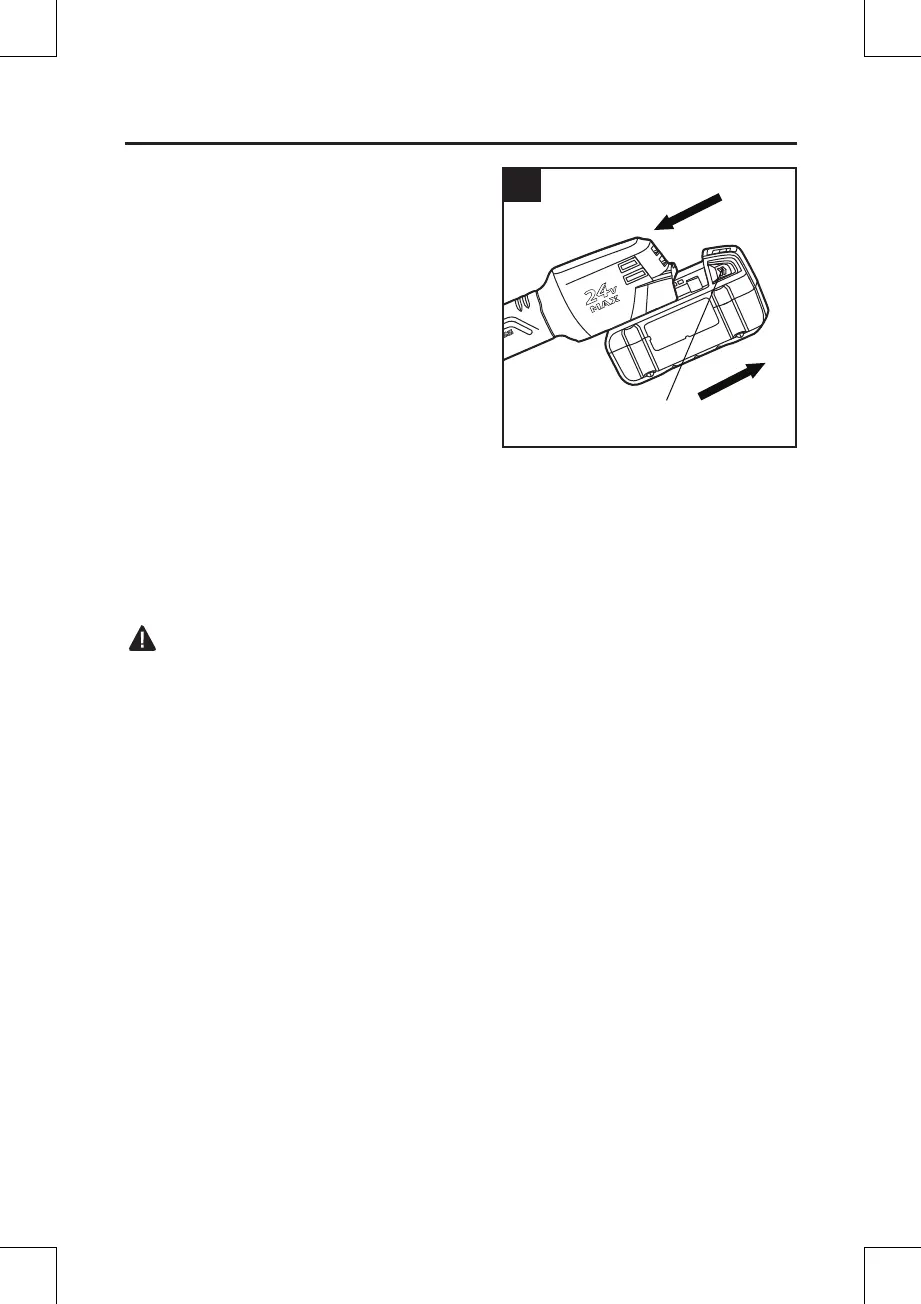

Battery-release Button
