ASSEMBLY INSTRUCTIONS
• Replace the battery or charger immediately if the battery case or charger cord is damaged.
• Always make sure the string trimmer switch is OFF before inserting or removing the battery.
• Always make sure the battery is removed and the switch turned OFF before inspecting, adjusting,
or maintaining any other part of the string trimmer.
• Read, understand, and follow the Battery Charger instructions.

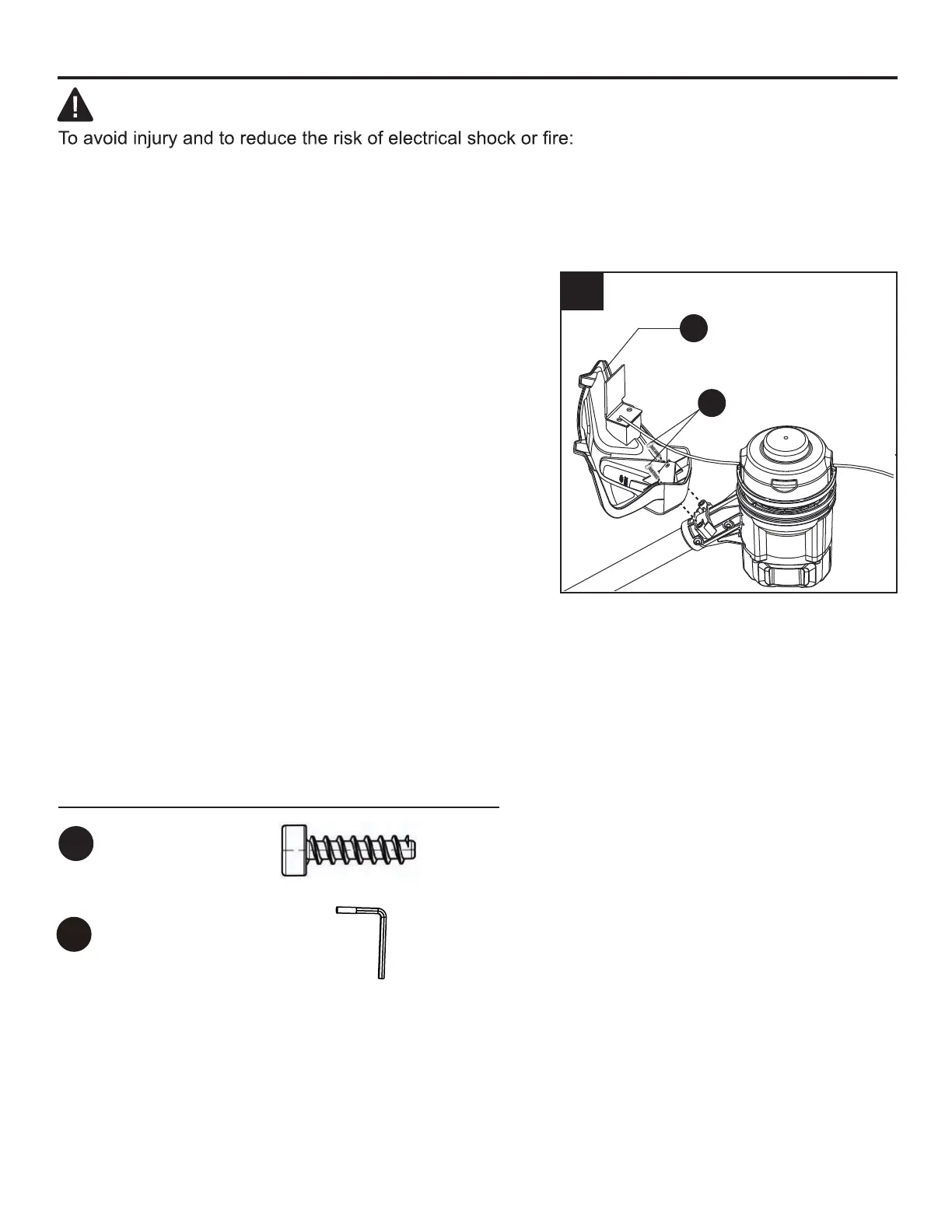

1. Guard
To avoid injury, always remove the battery before
installing the guard, changing a cutting line, or making
any adjustments.
If the guard is damaged, do not use the grass
trimmer/edger until it is replaced.
Note: Install the protective guard before operating
the grass trimmer/edger. It should not be removed or
disassembled.
a. Remove the battery.
b. Invert the grass trimmer/edger to access the
trimmer head.
c. Using a hex wrench, remove the pre-installed
screws (AA) from the trimmer head.
d. Place the guard (H) on to the trimmer head.
e. Align the screw holes on the guard with the screw
holes on the trimmer head.
f. Insert the screws into the trimmer head, fastening
the guard in place.
1
WARNING
Hardware Used
Screw
x 2
AA
AA
H
Hex Wrench
x 1
DD
To Next Page
