12
ASSEMBLY INSTRUCTIONS

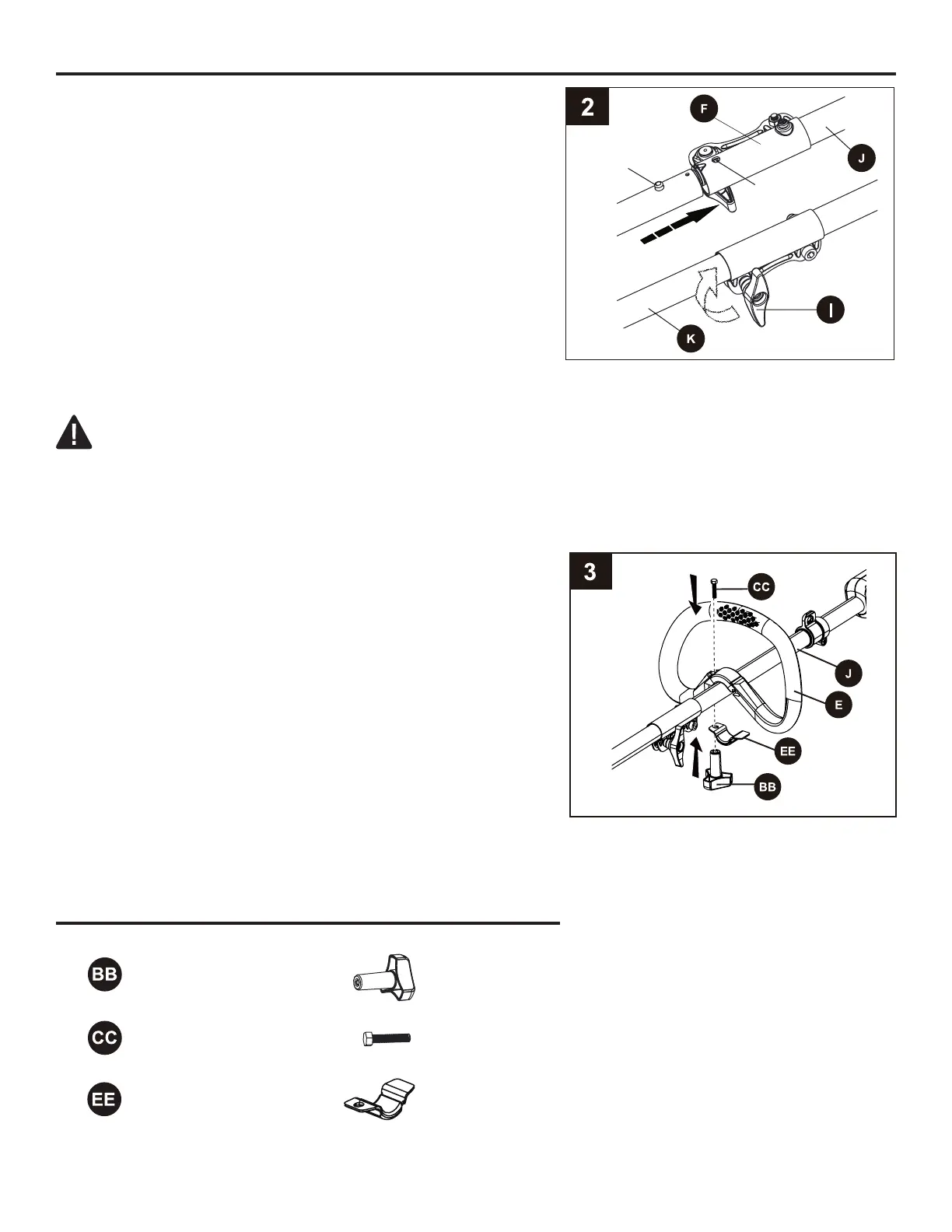

2. Connect upper/lower trimmer tubes
a. Loosen the attachment knob (I) on the coupler.
b. Push in the release button located on the lower
tube (K). Align the release button with the
positioning hole on the upper tube (J) and slide the
two tubes together. Rotate the lower tube until the
release button locks into the positioning hole.
b. Tighten the attachment knob securely.
To avoid injury, adjust the auxiliary handle for optimum control and balance. Do not overreach when
operating grass trimmer/edger. Keep proper balance at all times for better control of the tool in
unexpected situations.
3. Front handle
a. Position the front/auxiliary handle (E) onto the
upper portion of the trimmer section by sliding over
the upper tube (J).
b. Once the front handle is in the desired position,
align the hole on the handle with the hole on the
bracket (EE), then slide the bolt (CC) through the top
of the handle and secure with the fastening knob (BB).
Tighten until there is no movement in the handle.
c. The front handle can be adjusted to a suitable
position.
Note: Do not overtighten the fastening knob. It could
cause the fastening clamp to break.
WARNING
Hardware Used
Release
button
Positioning
hole
Fastening knob
Bolt
Bracket
x 1
x 1
x 1
To Next Page
