11

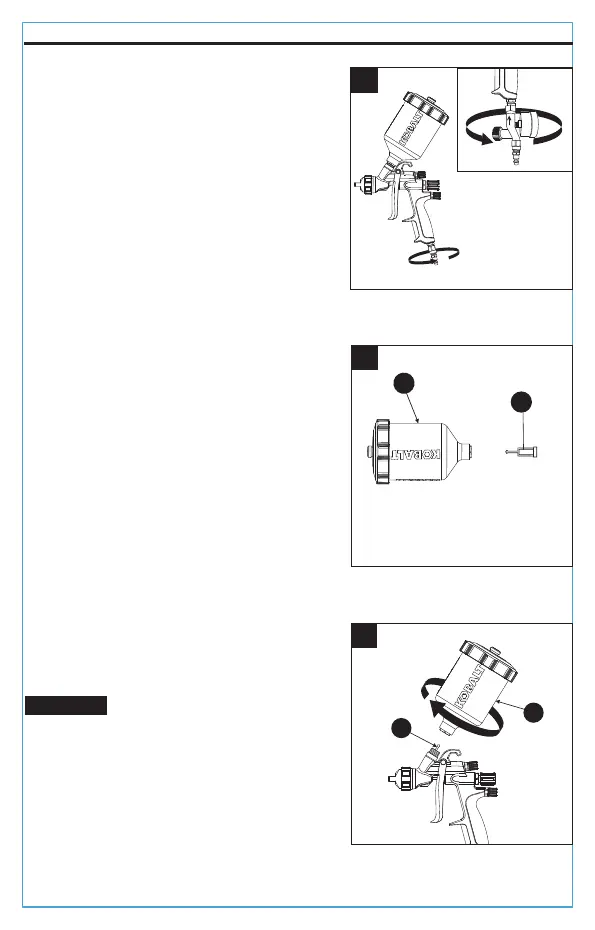

ASSEMBLY INSTRUCTIONS
2. Attach paint cup (H) to spray gun by hand
turning the cup clockwise until the cup is
tight.
1. Tighten female plug (not included), turning
clockwise with a 5/8 in.wrench
(not included) for air tight connection
(See Figure 1a).
DO NOT OVERTIGHTEN.
NOTE: Use threaded sealant tape
(not included) on the threading of the
male plug on the bottom of the spray gun.
NOTE: As an option,you can connect an Air
Pressure Regulator to the bottom of the
spray gun and then attach the female plug
to the bottom of the air pressure regulator.
Do not overtighten!
CAUTION:
2
1a
1b
H
K
IMPORTANT: Make sure the Paint Filter (K)
is installed in the bottom of the Paint Cup (H)
prior to attaching the Paint Cup to the sprayer
(See Figure 1b).
H
K
Air Flow
