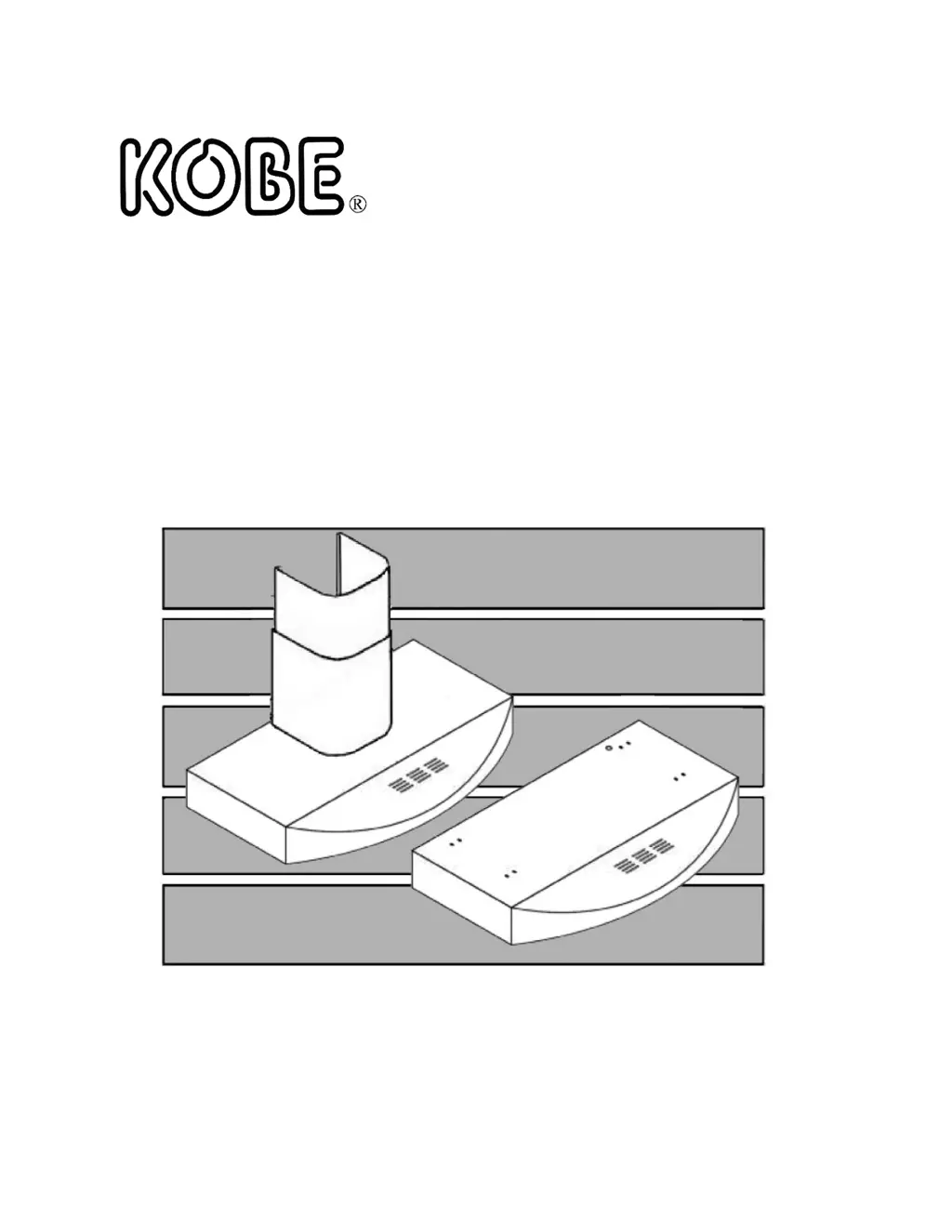

KOBE CHX3830SQBD-3 - User Manual

Questions and Answers

C
Cheyenne AndersonJul 27, 2025
Why is my KOBE Ventilation Hood not venting out correctly?
- A
  Andrea VaughnJul 27, 2025
  If your KOBE Ventilation Hood isn't venting correctly, it might be due to several reasons. First, ensure the hood is installed within the recommended clearance of 26” to 30” above the cooktop (or 30” to 36” for island hoods). Insufficient make-up air in your house can also be a factor; try opening a window to improve airflow. Obstructions in the ductwork can hinder performance, so remove any obstacles. Finally, check that the ducting matches the manufacturer's suggested size.
A
Amy WongAug 1, 2025
What to do if KOBE Ventilation Hood lights are working, but the motor isn't?
- J
  James DayAug 1, 2025
  If your KOBE Ventilation Hood lights are working, but the motor isn't, the motor itself may be defective and need replacement. Alternatively, the capacitor(s) could be faulty and require replacement. In some cases, a defective control panel or processor board might be the cause, necessitating their replacement.
A
Amanda HoffmanAug 6, 2025
Why is my KOBE Ventilation Hood vibrating?
- K
  Kyle HarrisAug 6, 2025
  If your KOBE Ventilation Hood is vibrating, it could be due to a few reasons. Start by checking and tightening the turbine impeller/squirrel cage and air chamber, as the blower system might not be secure. If the vibration persists, the turbine impeller/squirrel cage might be unbalanced and need replacement. Also, ensure the hood is securely mounted by checking the installation and tightening the mounting bracket.
M
mannamyAug 10, 2025
Why is cold air coming into my home from my KOBE Ventilation Hood?
- J
  Jamie JenkinsAug 10, 2025
  If cold air is coming into your home through the KOBE Ventilation Hood, inspect the pipe installation to ensure it's properly sealed. Also, verify that the damper is correctly installed. Installing the damper can help prevent air backflow.
S
stewartpatrickAug 16, 2025
What to do if the motor is working but the lights aren't on my KOBE Ventilation Hood?
- S
  Sarah BarnettAug 16, 2025
  If the motor in your KOBE Ventilation Hood is working, but the lights aren't, the LED light fixture(s) might be defective and need replacement. Another possibility is loose light wiring(s); check the wire continuity from the processor board to the light transformer and LED light fixture(s). In some cases, a defective control panel or processor board might be the cause, requiring their replacement.
Y
yharrisonAug 20, 2025
How to troubleshoot KOBE Ventilation Hood when both motors and lights are not working after installation?
- W
  Wanda AveryAug 21, 2025
  If neither the motors nor the lights are working on your KOBE Ventilation Hood after installation, first ensure that the circuit breaker and the unit's power are ON, and use a voltage meter to check the power supply. Next, check and tighten the wire connections to ensure they are secure. Also, verify the wire continuity from the control panel to the processor board. If the issue persists, the control panel or processor board may be defective and require replacement.

Summary

IMPORTANT PRE-INSTALLATION GUIDANCE

Initial Checks and Problem Resolution

Guides users through initial inspection, damage checks, and steps to resolve issues before installation.

Return and Exchange Conditions

Outlines specific conditions under which returns, refunds, or exchanges will not be accepted.

IMPORTANT SAFETY INSTRUCTIONS

Fire, Electric Shock, and Injury Prevention

Provides critical warnings regarding installation, electrical wiring, venting, and general handling to prevent hazards.

Grease Fire Safety Measures

Details essential precautions and actions to minimize risk and respond effectively to range top grease fires.

SPECIFIC SAFETY PROCEDURES

Grease Fire Response and Gas Leak Safety

Explains procedures for managing grease fires and responding to gas detection, emphasizing safety.

Operational Cautions and Electrical Hazards

Highlights operational warnings, ductwork requirements, and electrical shock risks during installation and use.

COMPONENTS OF PACKAGE

Range Hood and Duct Cover Contents

Lists all included parts for both the range hood unit and the optional duct cover.

INSTALLATION CALCULATION AND GUIDES

Under Cabinet and Wall Mount Measurements

Provides essential measurement tables and diagrams for accurate under cabinet and wall mount installations.

INSTALLATION PRECAUTIONS AND SECTIONS

Handling Safety and Tool Usage

Warns about sharp edges on the hood and advises caution when using electrical screwdrivers.

Installation Type Overview

Indicates the separate installation sections for under the cabinet and wall mount configurations.

UNDER CABINET INSTALLATION STEPS

Preparation and Hood Mounting

Details pre-installation checks, temporary wiring, and the process of physically mounting the hood under a cabinet.

UNDER CABINET WIRING AND FINALIZATION

Power Supply Connection and Safety

Explains safe electrical wiring, grounding, and power connection procedures for the hood.

Accessory Installation and Checks

Covers installing accessories like filters and performing final operational checks after installation.

WALL MOUNT INSTALLATION STEPS

Wall Preparation and Bracket Mounting

Guides on preparing the wall, framing, and securely mounting the hood's support bracket.

Securing the Hood to the Wall

Details the process of aligning and fastening the hood onto the mounted bracket for stability.

WALL MOUNT DUCT COVER AND FINALIZATION

Duct Cover Installation Procedure

Provides step-by-step instructions for installing the duct cover, including bracket and screw placement.

Accessory Installation and Checks

Covers installing filters and performing final operational checks for wall mount installations.

OPERATING INSTRUCTIONS

Fan and Light Control Operation

Explains how to use the control panel buttons for fan speed (Quiet, Low, High) and light functions.

MAINTENANCE AND CLEANING GUIDELINES

Hood Surface and Baffle Filter Care

Provides detailed instructions and cautions for cleaning the hood's exterior and internal baffle filters.

PRODUCT SPECIFICATIONS

Model, Dimensions, and Accessories

Lists detailed specifications including model numbers, physical dimensions, and optional accessory compatibility.

Performance Data and Weight

Details technical performance metrics such as air capacity, sound levels, and unit weight.

MEASUREMENTS AND DIAGRAMS

Under Cabinet and Wall Mount Dimensions

Presents comprehensive diagrams with precise measurements for both under cabinet and wall mount installation types.

COMPONENT DIAGRAMS AND MEASUREMENTS

Mounting Brackets and Support Dimensions

Illustrates and provides measurements for the hood mounting bracket, duct cover bracket, and duct cover support.

PART LIST

Range Hood and Duct Cover Parts

Provides a detailed list of all replaceable parts with their corresponding model and part numbers.

PARTS DIAGRAMS

Visual Part Identification

Offers visual representations of the hood and duct cover components, referencing part numbers from the list.

CIRCUIT DIAGRAM

Electrical Wiring Schematic

Presents a schematic illustrating the electrical connections for the hood's motors, capacitor, and control system.

TROUBLE SHOOTING GUIDE

Common Issues and Solutions

Offers a structured guide to diagnose and resolve common operational problems encountered with the range hood.

WARRANTY CERTIFICATE DETAILS

Warranty Coverage and Exclusions

Defines the scope of the warranty, specifying covered defects and listing excluded items or conditions.

WARRANTY CONDITIONS AND SERVICE

Voiding Conditions and Contact Info

Details circumstances that invalidate the warranty and provides essential contact information for service requests.

WARRANTY INFORMATION FORM

Customer Record and Contact

Instructs users on filling out and retaining the warranty form for future service needs, including contact details.

LEGAL AND USAGE NOTES

Overseas Use Risks and Disclaimer

Advises against overseas use due to electrical incompatibility and voids warranty, along with general product information.

KOBE CHX3830SQBD-3 Specifications

General

Brand	KOBE
Model	CHX3830SQBD-3
Type	Under Cabinet
Width	30 inches
Material	Stainless Steel
Lighting	LED
Number of Speeds	3
Filter Type	Baffle
Duct Size	6 inches
Voltage	120V
Venting Type	Ducted
Color/Finish	Stainless Steel
Control Type	Button
