KIMA00H1 (0204)
24

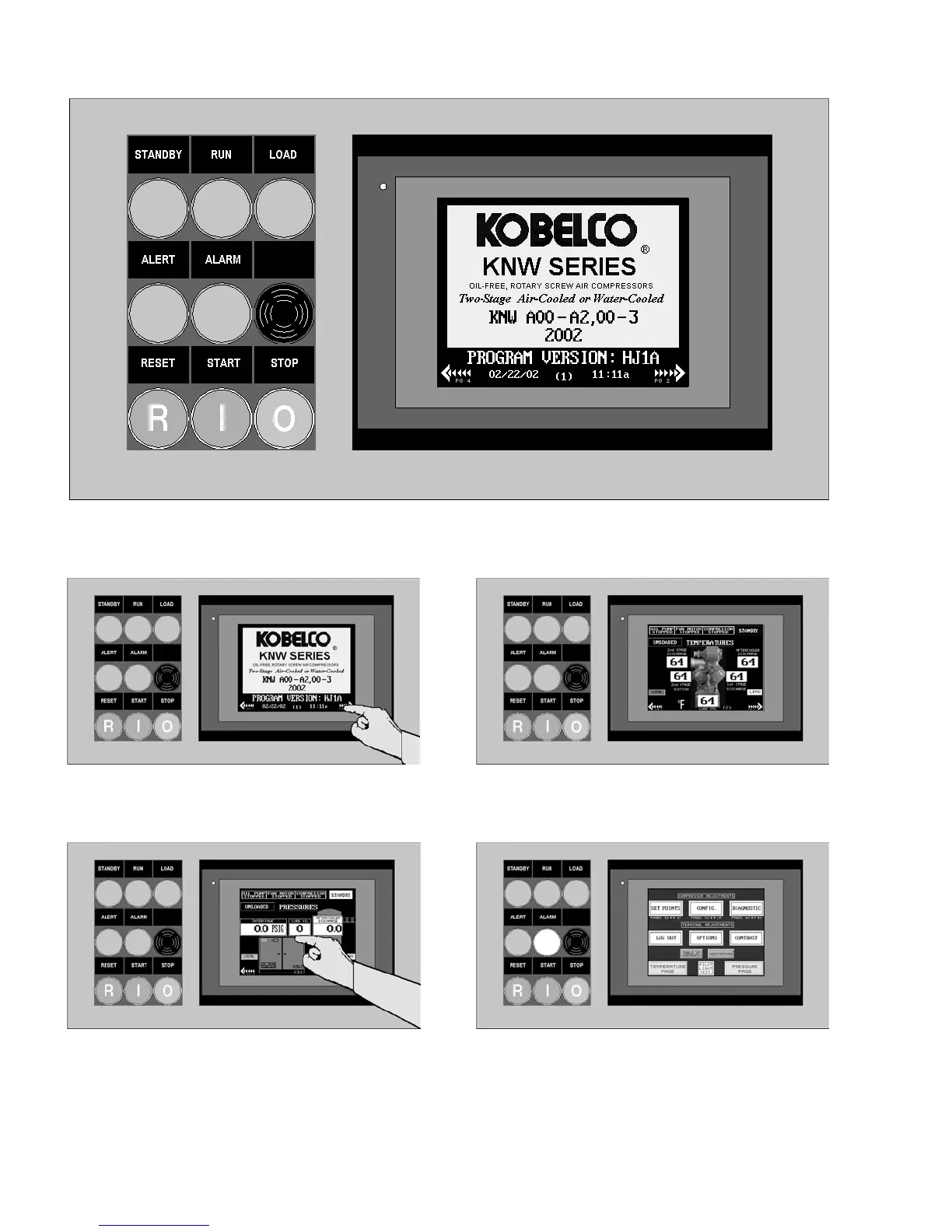

FIGURE 24 - COMPRESSOR OPERATOR PANEL WITH GT TERMINAL
FIGURE 25A FIGURE 25B
PRESS ARROW KEY TO CHANGE PAGE SHOWN ON GT TERMINAL
FIGURE 26A FIGURE 26B
PRESS CENTER OF SCREEN FOR UTILITY PAGE
