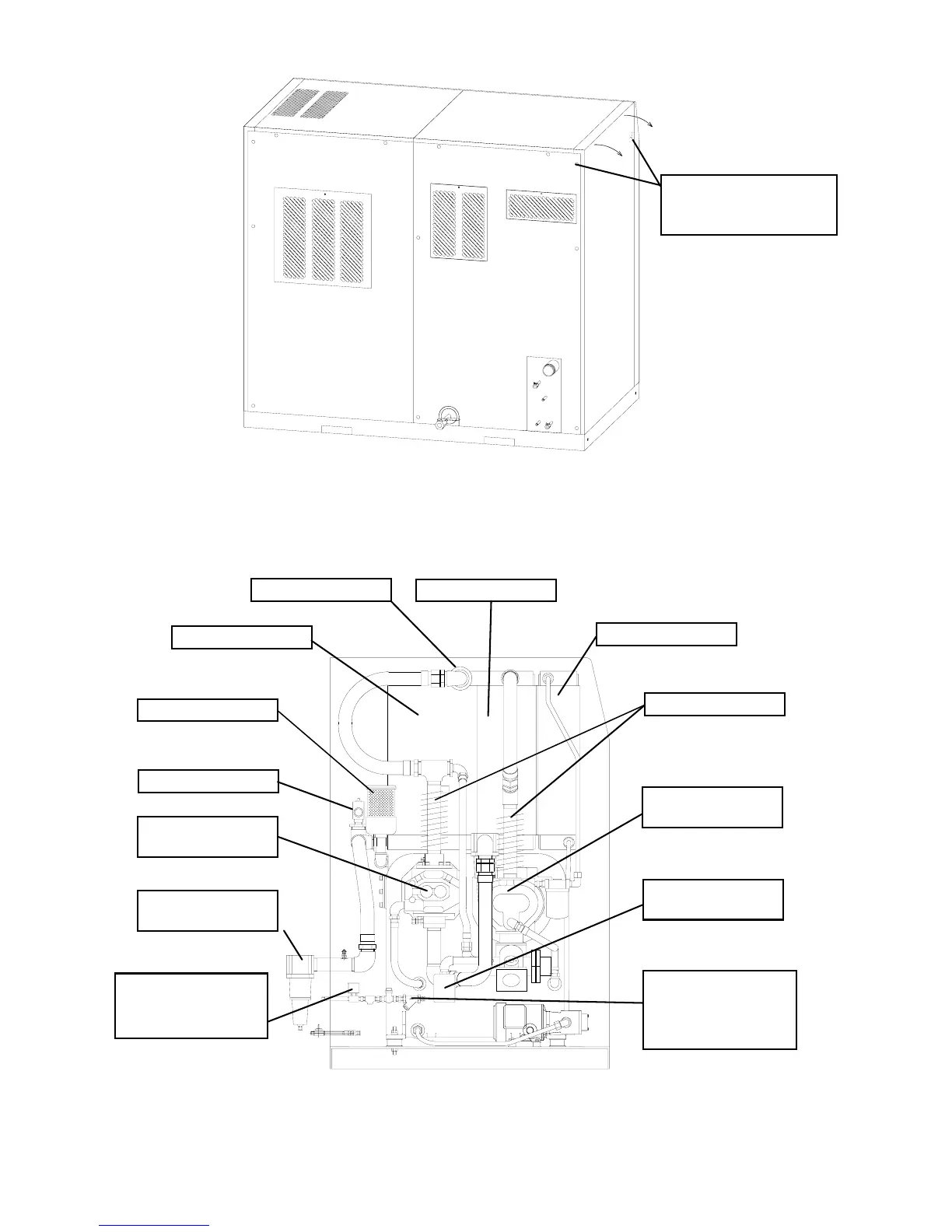

FIGURE 34 - TO REMOVE END PANEL FOR SERVICING

REMOVE 2 SCREWS INDICATED, PULL TOP OF PANEL OUT THEN LIFT

FIGURE 35 - END VIEW OF COMPRESSOR INTERIOR

AFTERCOOLER

INTERCOOLER

CHECK VALVE

OIL COOLER

SAFETY VALVE

COMPRESSOR

2ND STAGE

COMPRESSOR

1ST STAGE

PRE-COOLER

DISCHARGE

SEPARATOR

BLEED-OFF

SILENCER

INTERCOOLER

DRAIN

SOLENOID VALVE

INTERCOOLER

DRAIN

STRAINER AND

CHECK VALVE

END PANEL SCREWS

1 INSIDE

1 ON BACK

OIL SUMP
