27 of 30 DI-129/11/07.07.15 KOBRA CYCLONE ELECTRICAL SET-UP AND TUNING (
VALID FOR UNITS FROM SERIAL NUMBER : 200/208V -50/60Hz UNITS SERIAL NUMBER 1180/ PRODUCTION 2015)

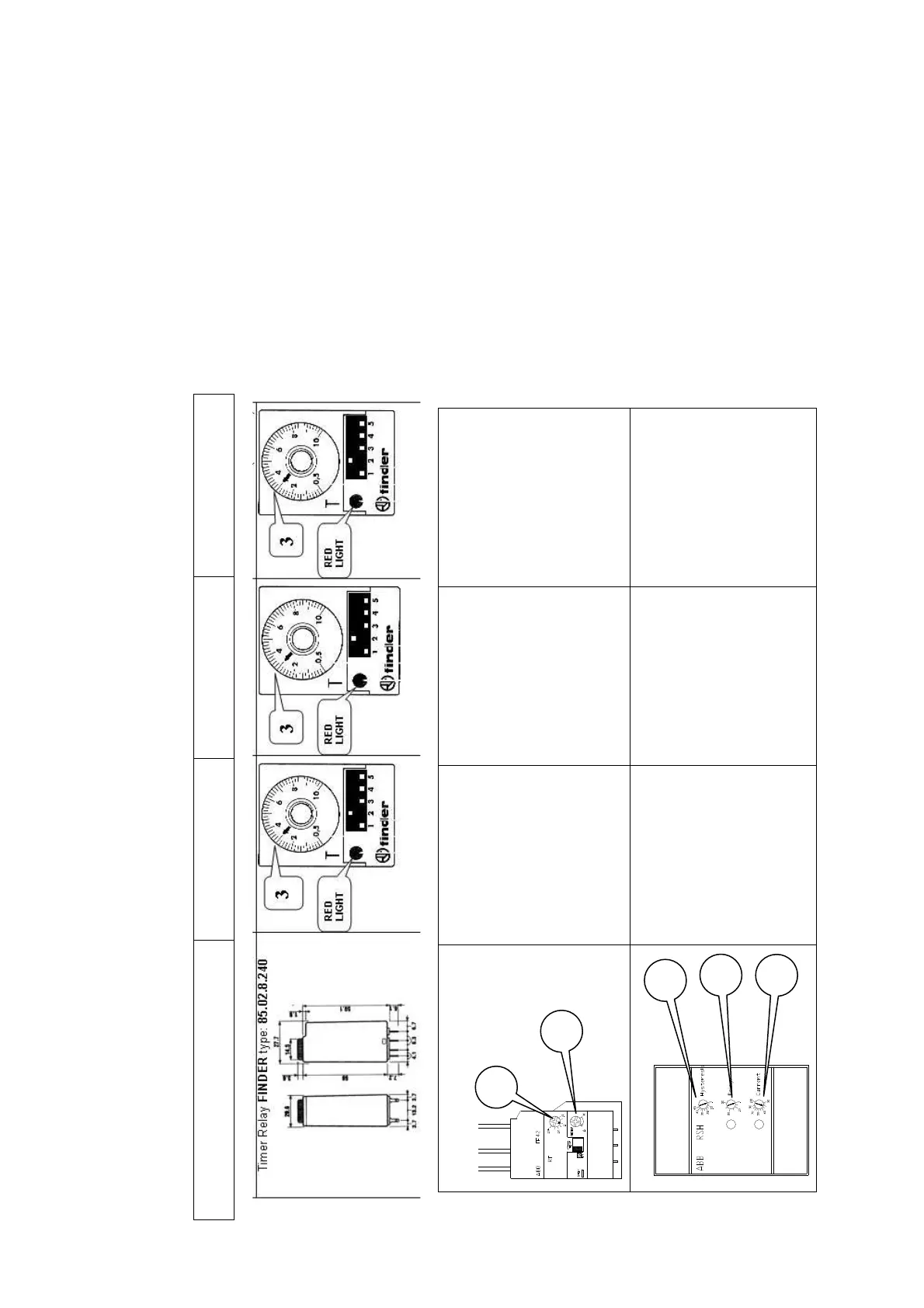

SET-UP VALUES
MODEL
Electrical supply:
380/400V.-50Hz
Electrical supply: 208V.-50/60Hz (USA)
Electrical supply:
200V.-50/60Hz (JAPAN)
Thermal relay ABB TF42
TF42-13
A= 11 Ampere B= Aut.
TF42-24
A= 21 -24 Ampere B= Aut.
TF42-24
A= 21 Ampere B= Aut.
Amps relay ABB RSH
A (Hysteresis)= 5 B (Delay)= 1 C (Current)= 35
A (Hysteresis)= 5 B (Delay)= 1 C (Current)= 60
A (Hysteresis)= 5 B (Delay)= 1 C (Current)= 70
A
B
A
B
C
(BLUE)
