KOCOM KCV-S701EB - Name and Functions of each Part

6

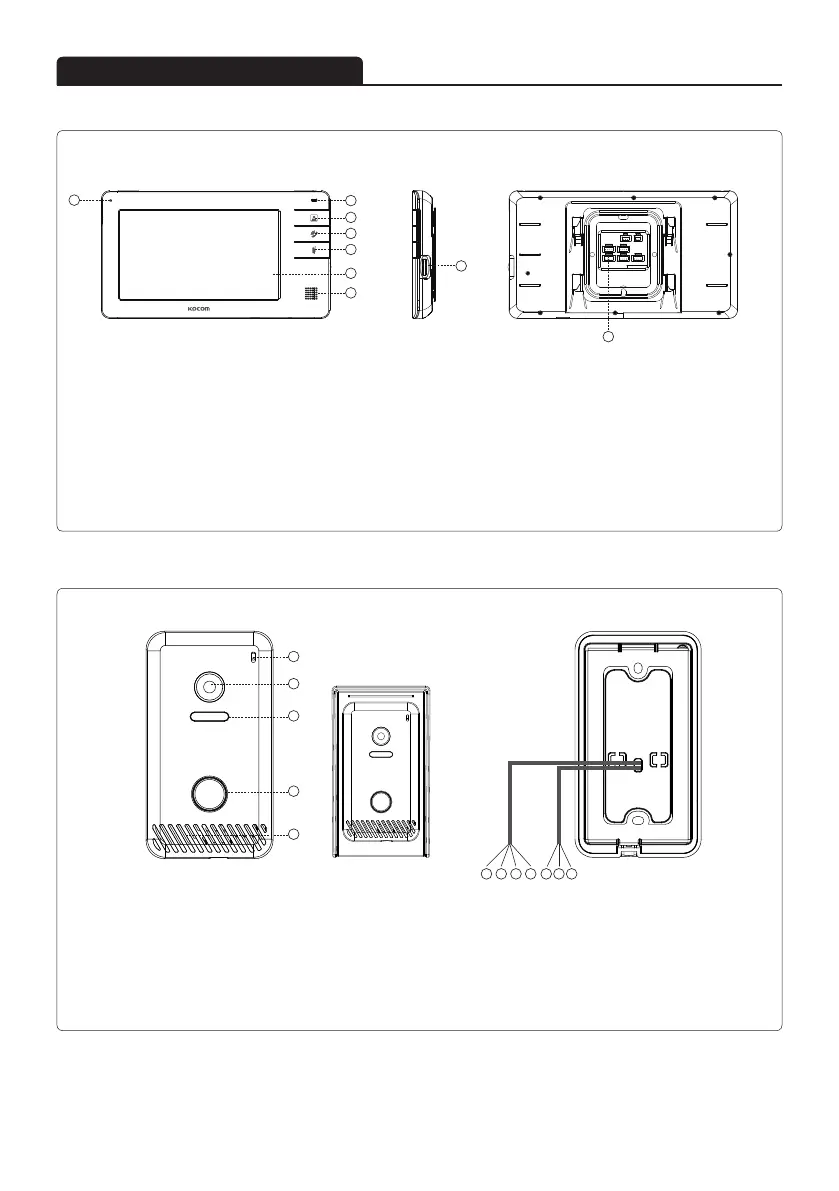

Name and functions of each part
■ Monitor
■ Door camera
·Side·Front
·Front
Door camera + Sun Visor (Option)
·Back
·Back
⑧ Jog switch
⑨ Terminal
① MIC
② Power LED
③ Monitoring button
④ Call button : connect Talk with the door camera
⑤ Open door button : open the door
⑥ LCD Monitor
⑦ Speaker
① Mic
② Camera Lens
③ LED
④ Call button
⑤ Speaker
① VCC (BLUE)
② GND (YELLOW)
③ Audio (RED)
④ Video (WHITE)
⑤⑥⑦ Door (COM/NO/NC)
(BLACK, BROWN, ORANGE)
2
2
2
5
5
5
6
6
7
7
8
1
1
1
3
3
3
4
4
4
9
