operation
10

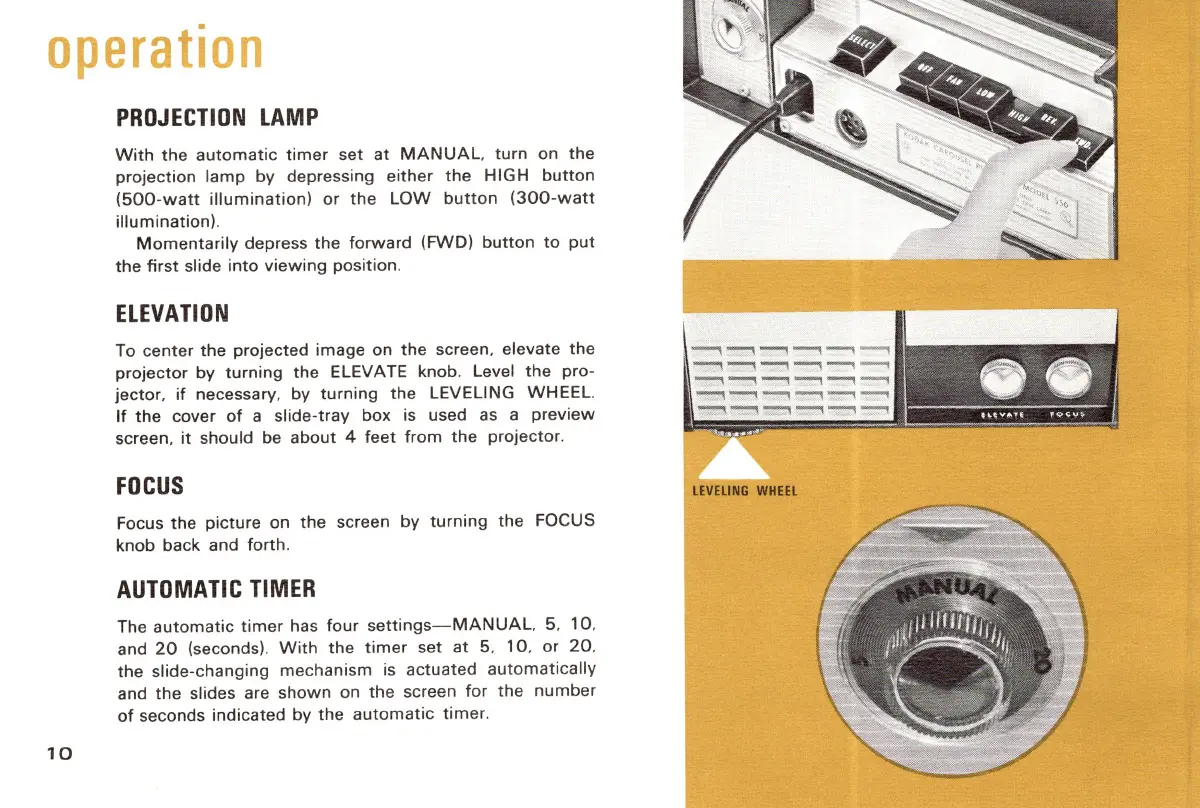

PROJECTION LAMP
With the automatic timer set at MANUAL turn on the
projection lamp by depressing either the HIGH button
(500-watt illumination) or the LOW button (300-watt
illumination) .
Momentarily depress the forward (FWD) button to put
the first slide into viewing position.
ELEVATION
To center the projected image on the screen, elevate the
projector by turning the ELEVATE knob. Level the pro -
jector, if necessary, by turning the LEVELING WHEEL.
If the cover of a slide-tray box is used as a preview
screen, it should be about 4 feet from the projector .
FOCUS
Focus the picture on the screen by turning the FOCUS
knob back and forth.
AUTOMATIC TIMER
The automatic timer has four settings - MANUAL, 5, 10,
and 20 (seconds). With the timer set at 5, 10 , or 20 ,
the slide-changing mechanism is actuated automati cally
and
the slides are shown on the screen for the number
of seconds indicated by the automatic timer .
---, ---, ---, ---, ---, ---,
---, ---, ---, ---, ---, ---,
---,
---, ---, ---, ---, ---,
---, ---, ---, ---, ---, ---,
---, ---, ---, ---, ---, --,
