Kodak Carousel 850H User Manual

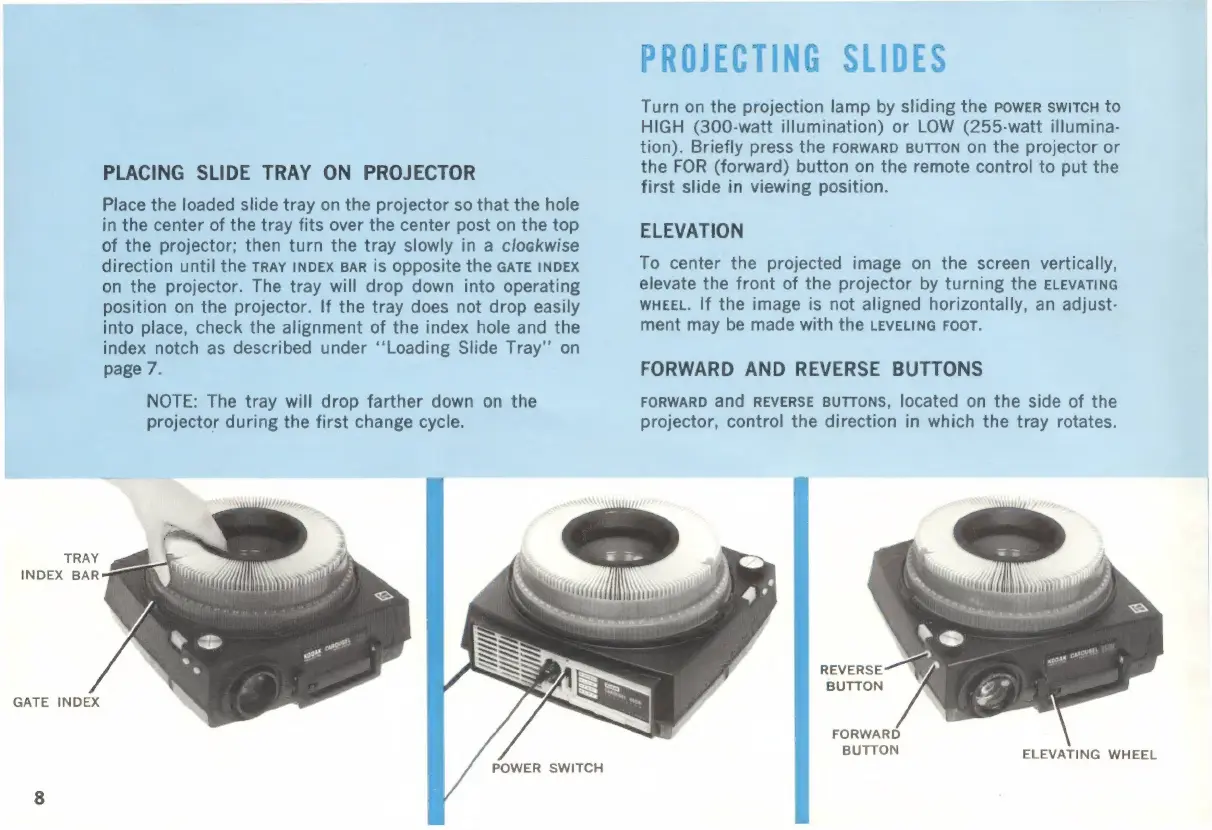

PLACING SLIDE TRAY ON PROJECTOR
Place the loaded slide tray on the projector so that the hole
in the center of the tray fits over the center post on the top
of the projector; then turn the tray slowly in a cloekwise
direction until the TRAY INDEX BAR is opposite the GATE INDEX
on the projector. The tray will drop down into operating
position on the projector. If the tray does not drop easily
into place, check the alignment of the index hole and the
index notch as described under ‘‘Loading Slide Tray’’ on
page 7.
NOTE: The tray will drop farther down on the
projector during the first change cycle.
PROJECTING SLIDES
Turn on the projection lamp by sliding the POWER SWITCH to
HIGH (300-watt illumination) or LOW (255-watt illumina-
tion). Briefly press the FORWARD BUTTON on the projector or
the FOR (forward) button on the remote control to put the
first slide in viewing position.
ELEVATION
To center the projected image on the screen vertically,
elevate the front of the projector by turning the ELEVATING
WHEEL. If the image is not aligned horizontally, an adjust-
ment may be made with the LEVELING FOOT.
FORWARD AND REVERSE BUTTONS
FORWARD and REVERSE BUTTONS, located on the side of the
projector, control the direction in which the tray rotates.
GATE INDEX
FORWARD
BUTTON ELEVATING WHEEL
POWER SWITCH
