Adjusting the inlet water
temperature
1. Turn on the water supply using the thermostatic mixing valve.
2. Turn the power switch to the On position.
3. Insert the thermometer in the thermometer fixed measuring point
sleeve located in the front right corner of the #1 rack.
4. Install the standpipe in the Archive Processor tank after the water
temperature, indicated on the mixing valve, reaches 34.5 to 36.5°C
(94 to 98°F).
Installing the standpipe after the water reaches the proper
temperature at the mixing valve enables the developer solution to
reach operating temperature sooner.
5. Route the tubing from the developer tank through the notch in the
partition.
6. Insert the tubing into the standpipe.
7. Allow the water jacket to fill up.
8. A float switch automatically turns off the water flow when the water
level is just below the top of the standpipe.
9. Close the processing section cover.
10.Allow approximately 25 minutes for the developer temperature to
stabilize before adjusting the temperature control setting.

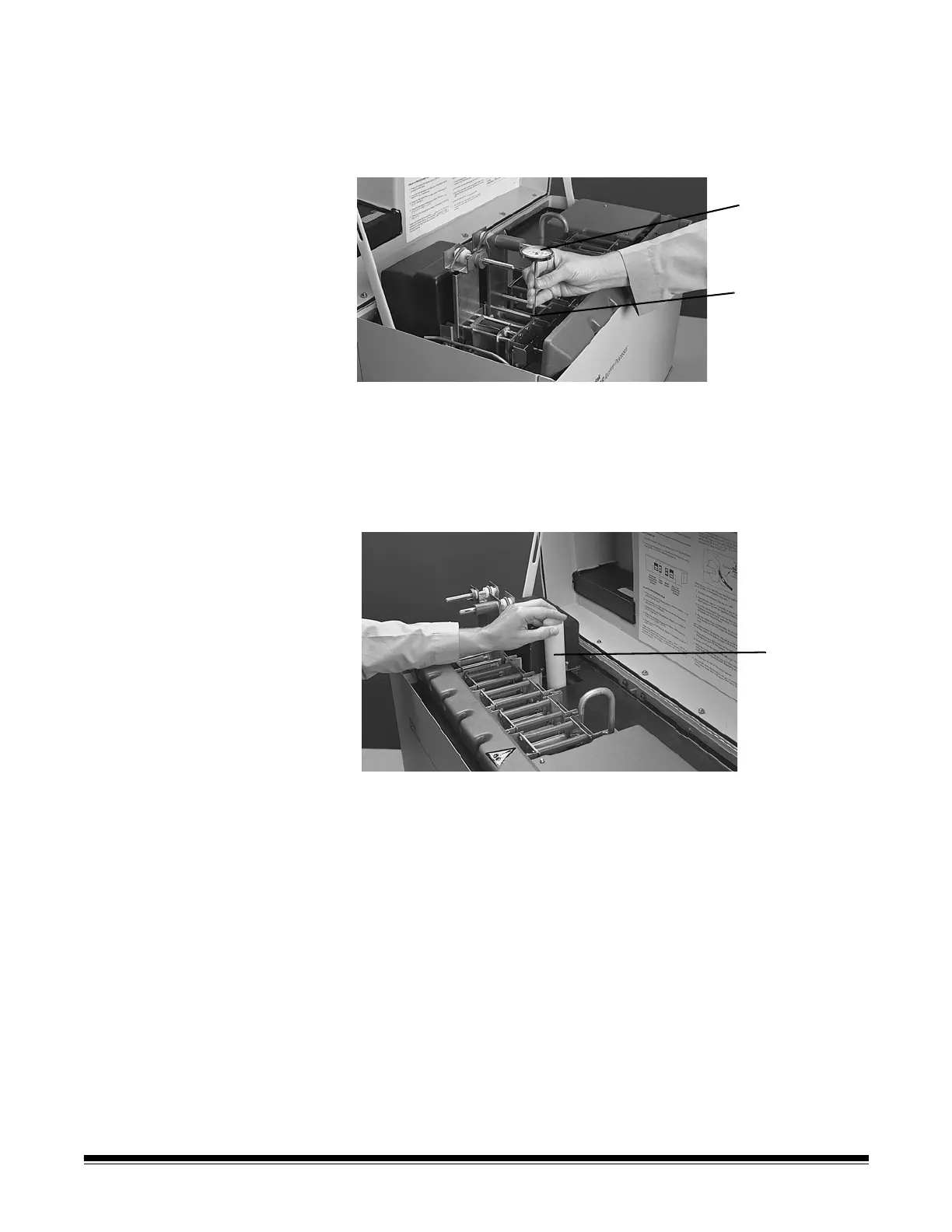

Thermometer
