Archive Processor Overview

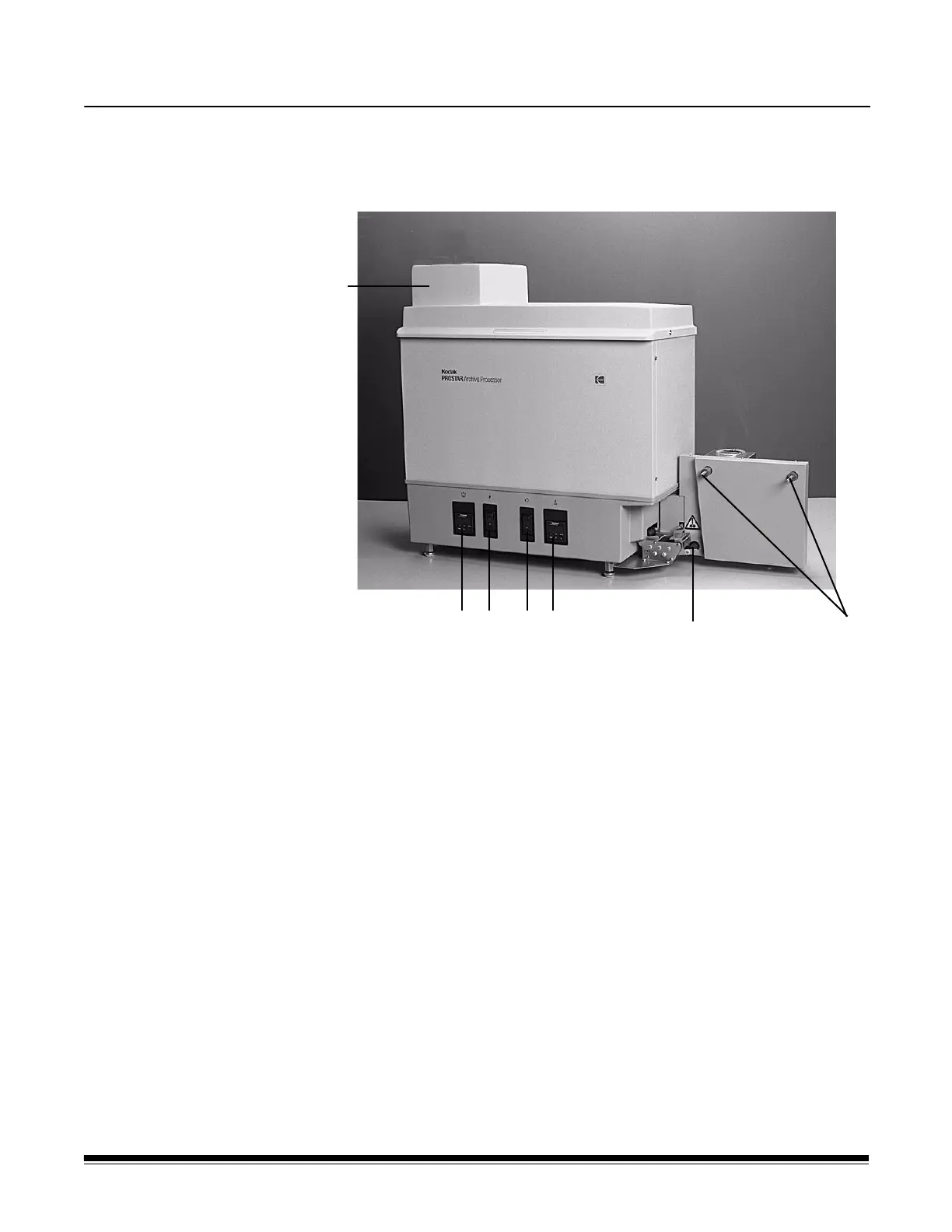

Front Shown throughout this manual is an Archive Processor equipped with
Dual-Strand Take-up Spindles
A Processing Section Cover — light-tight cover for the film
processing section.
B Developer Temperature Control and Display — controls the
developer temperature and displays a value relative to the water
temperature surrounding the developer tank.
C Power Switch — turns the power on (l) and off (O).
D Mode Switch — the standby position (O) maintains the developer
temperature. The run position (l) activates the film transport, rinse
water, and film dryer blower.
E Film Dryer Temperature Control and Display — controls the
dryer air temperature and displays the air temperature in the drying
chamber.
F Tension Roller — loss of film tension after processing causes the
tension roller to be released, initiating a time delay prior to
activating energy conservation mode. Once energy conservation is
activated, the film transport, rinse water, and film dryer blower will
all turn off.
G Take-Up Spindles — mechanisms that wind the processed film
onto the take-up reel.
