Kodak S3060 - Replacing the Pre-Separation Pad

A-61981 20 April 2022 59
Replacing the pre-
separation pad
Change the pre-separation pad when the frequency of multi-fed documents
increases.
1. Open the scanner cover.

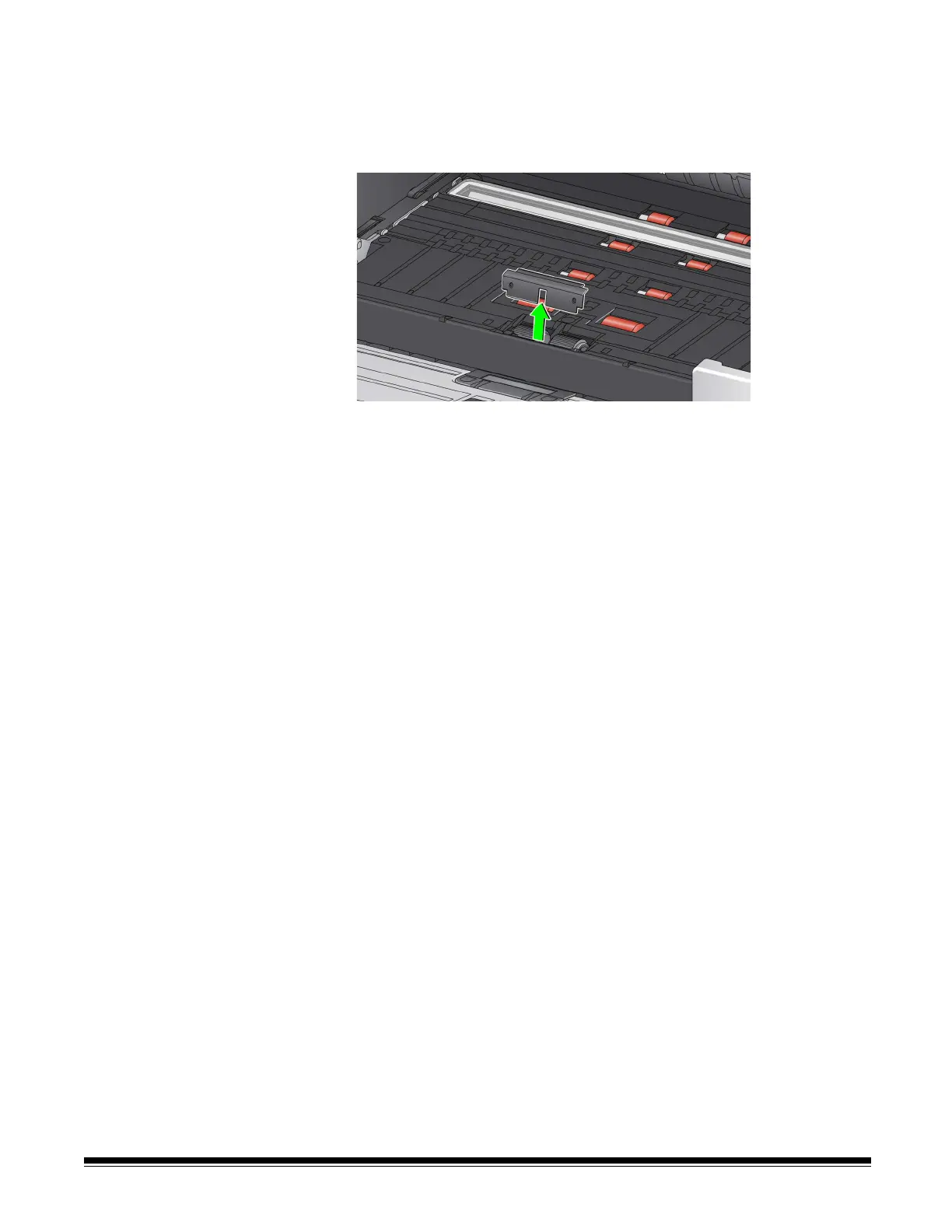

2. Remove the pre-separation pad by lifting the pad up and out of position.
3. Install the new pre-separation pad. Be sure it snaps into place.
4. Close the scanner cover.
