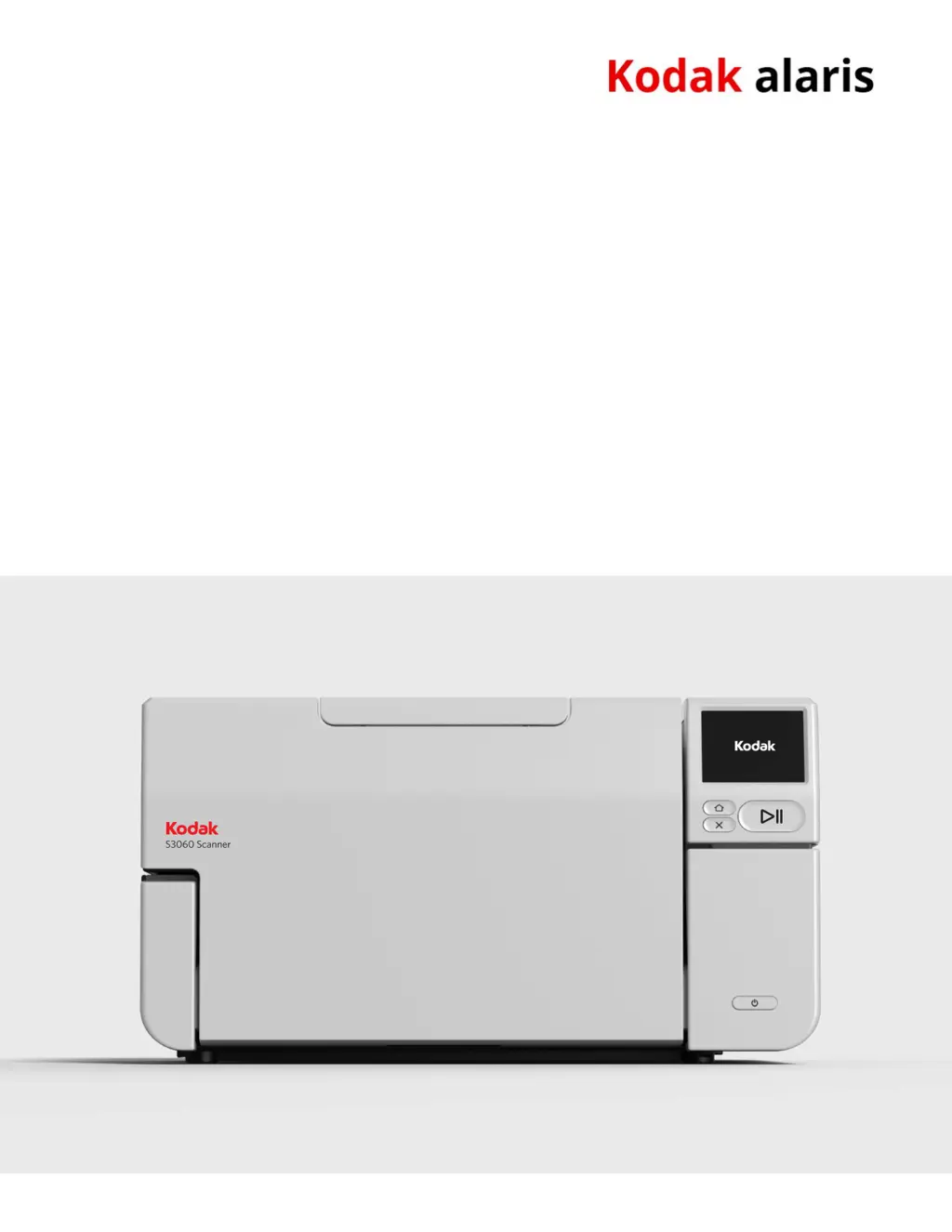

A-61981
KODAK S2085f Scanner
KODAK S3060 Scanner
KODAK S3060f Scanner
User's Guide
KODAK S3100 Scanner
KODAK S3100f Scanner
KODAK S3120 Scanner
KODAK S3120
Max
Scanner
KODAK S3140 Max Scanner
Kodak S2000f/S3000 Series Scanners

Table of Contents

Questions and Answers

  • B
    Brian SimpsonAug 19, 2025
    What to do if documents are jamming in my Kodak Scanner?
    • S
      Stephanie MartinAug 19, 2025
      To address documents jamming or multiple documents feeding in your Kodak scanner, ensure all documents meet the size, weight, and type specifications detailed in Appendix A. Remove all staples and paper clips. Clean all rollers and tires, and ensure the separation roller and feed module are properly installed. To remove a document jam, remove any documents from the feeder area, open the scanner cover, locate and remove the jammed document(s), then close the scanner cover and resume scanning.
  • B
    Becky EdwardsAug 21, 2025
    Why is my Kodak S3100f Scanner not feeding documents?
    • A
      Austin CarrollAug 21, 2025
      If your Kodak scanner won't scan or feed documents, check the following: Ensure the power cord is plugged in and the power is on, with the green LED lit. Verify the scanner cover is completely closed and documents are making contact with the feed module and covering the paper present sensor. Confirm documents meet the required size, weight, and type specifications. For thicker documents, turn the gap release dial vertically. For curled, wrinkled, perforated, or slippery documents, engage the feeder adjustment tab. Check the feed module and separation roller for wear and replace if necessary. Power cycling the scanner may also help.
  • M
    meyercatherineAug 23, 2025
    How to fix a paper jam in Kodak Scanner?
    • S
      Sara JohnsonAug 23, 2025
      If your Kodak scanner is experiencing a paper jam, open the scanner cover and carefully remove the jammed pages.
  • K
    Kelly MartinAug 26, 2025
    What to do if my Kodak S3100f is multifeeding?
    • B
      Brian BrownAug 26, 2025
      If your Kodak scanner is experiencing a multifeed, open the scanner cover and remove the pages that were fed together. Choose one of the options presented on the scanner screen to proceed.
  • C
    Crystal WrightAug 27, 2025
    What to do if long documents jam in Kodak S3100f Scanner?
    • R
      Ryan JordanAug 28, 2025
      If 11 inches / 27.94 cm or longer documents are not feeding or are jamming in your Kodak scanner, make sure the input and output tray extenders are pulled out to provide support for long documents.
  • M
    Michael JohnsonAug 29, 2025
    Why is my Kodak Scanner running so slow?
    • R
      Richard BaxterAug 30, 2025
      If your Kodak scanner is running slowly, your PC may not meet the minimum requirements. Try disabling any anti-virus or security suite software. Some image processing functions can reduce scanner speed. The resolution (dpi) setting may be too high. Ensure you are scanning to a local drive.
  • J
    Jacob DominguezAug 31, 2025
    How to fix skewed scanning on Kodak S3100f Scanner?
    • E
      Eric RobinsonAug 31, 2025
      To correct skewed documents during scanning with your Kodak scanner, ensure the input tray side guides are adjusted to fit the documents, and that documents are fed perpendicular to the feed module. Remove all staples and paper clips. Clean the feed module, separation roller, and drive rollers. Make sure the scanner cover is firmly closed.
  • R
    Ryan RamosSep 2, 2025
    How to remove vertical lines from Kodak S3100f images?
    • K
      Kenneth BarronSep 2, 2025
      If vertical lines appear on the image when using your Kodak scanner, clean the CIS Imagers. Alternatively, enable the Streak Filter option or increase its aggressiveness.
  • L
    Lindsey ScottSep 4, 2025
    Why is my Kodak S3100f multifeeding documents?
    • J
      Jennifer PerezSep 4, 2025
      To prevent documents from multifeeding in your Kodak scanner, ensure the leading edges of all batched documents are centered in the feeder. Verify that the feed module and separation roller are clean and not worn. Feed documents with an unusual texture or surface manually. Ensure the gap release is not in the vertical position.
  • L
    lfullerSep 6, 2025
    Why does my Kodak Scanner pause so much during scanning?
    • H
      Haley WebbSep 6, 2025
      If your Kodak scanner pauses excessively during scanning, ensure the host computer meets the minimum requirements. Verify there is enough free space on the hard disk drive and close all other applications. Use a USB 2.0 (or higher) connection. You can also try changing the scanning options (compression, etc.) in your scanning application.

Summary

Safety and Precautions

User Safety Guidelines

Essential safety measures for operating the scanner and its environment.

Warning Symbols and Labels

Identification and meaning of warning labels and symbols on the scanner.

Acoustic Emission Information

Details on the noise emission levels produced by the scanner during operation.

Understanding Your Scanner

Scanner Model Overview

Introduction to the Kodak S2000f/S3000 Series scanners and their capabilities.

Available Accessories

Describes optional accessories like Printer, Flatbed, and Document Extender.

Scanner Component Identification

Details of front, inside, and rear components of the scanner.

Installation and Initial Setup

Unboxing and Preparing the Scanner

Steps for unboxing and preparing the scanner for first use.

Scanner Setup and Connection

Guide for powering on, initial configuration, and connecting the scanner.

Network Configuration Options

Instructions for setting up wired network or USB-only connections.

Installing Scanner Software

Procedures for installing driver software from disc or website.

Firmware Management

How to verify and update the scanner's firmware.

Scanner Operations and Settings

Document Preparation for Scanning

Guidelines for preparing documents to ensure optimal scanning.

Using the Scanner Touch Screen

Explanation of touch screen navigation, status area, and buttons.

Navigating the Settings Menu

Accessing and using scanner settings for Information, Maintenance, Network, etc.

Scanner Adjustments and Features

Adjusting Input and Output Trays

How to adjust trays for document size and output stacking.

Flatbed Scanning Procedure

Steps for scanning exception documents using the flatbed scanner.

Using the Rear Document Exit

Instructions for using the rear exit for special document handling.

Maintenance and Cleaning

Recommended Cleaning Supplies

List of approved tools and materials for scanner maintenance.

Cleaning Internal Components

Procedures for cleaning rollers, background strips, and CIS imager.

Replacing Scanner Consumables

Step-by-step guides for replacing feed module, separation roller, and pads.

Troubleshooting Common Issues

Self-Help and Online Resources

Guidance on using the troubleshooting page and online resources.

Software and Firmware Updates

Information on updating drivers and firmware to resolve issues.

Contacting Technical Support

How to contact Kodak Alaris for assistance and service.

Document Printing Functionality

Printer Accessory Usage

Overview of the Kodak Printer Accessory's capabilities.

Ink Cartridge Management

Instructions for installing and replacing the ink cartridge.

Print Position Adjustment

How to change the horizontal print position of the printer.

Printer Troubleshooting

Solutions for common printing problems like quality and connectivity.

Warranty and Service Information

Limited Warranty Coverage

Details on the limited warranty period and what is covered.

Warranty Exclusions and Limitations

Conditions that void the warranty and liability disclaimers.

Obtaining Warranty Service

Procedures for requesting and receiving warranty service.

Contacting Kodak Alaris Support

Ways to contact Kodak Alaris for information and support.

Regulatory and Compliance Information

Environmental Compliance

Information on product disposal, recycling, and environmental requirements.

EMC and Safety Statements

Statements regarding electromagnetic compatibility and regional safety compliance.

Kodak S3100f Specifications

General IconGeneral
Scanning TechnologyCIS
Optical Resolution600 dpi
Automatic Document Feeder (ADF)Yes
Duplex ScanningYes
Scanner TypeFlatbed
Color Depth24-bit
Grayscale Depth8-bit
Document Size8.5" x 11.7"
InterfaceUSB 3.2 Gen 1
CompatibilityWindows
Output File FormatPDF, JPEG, TIFF, BMP
