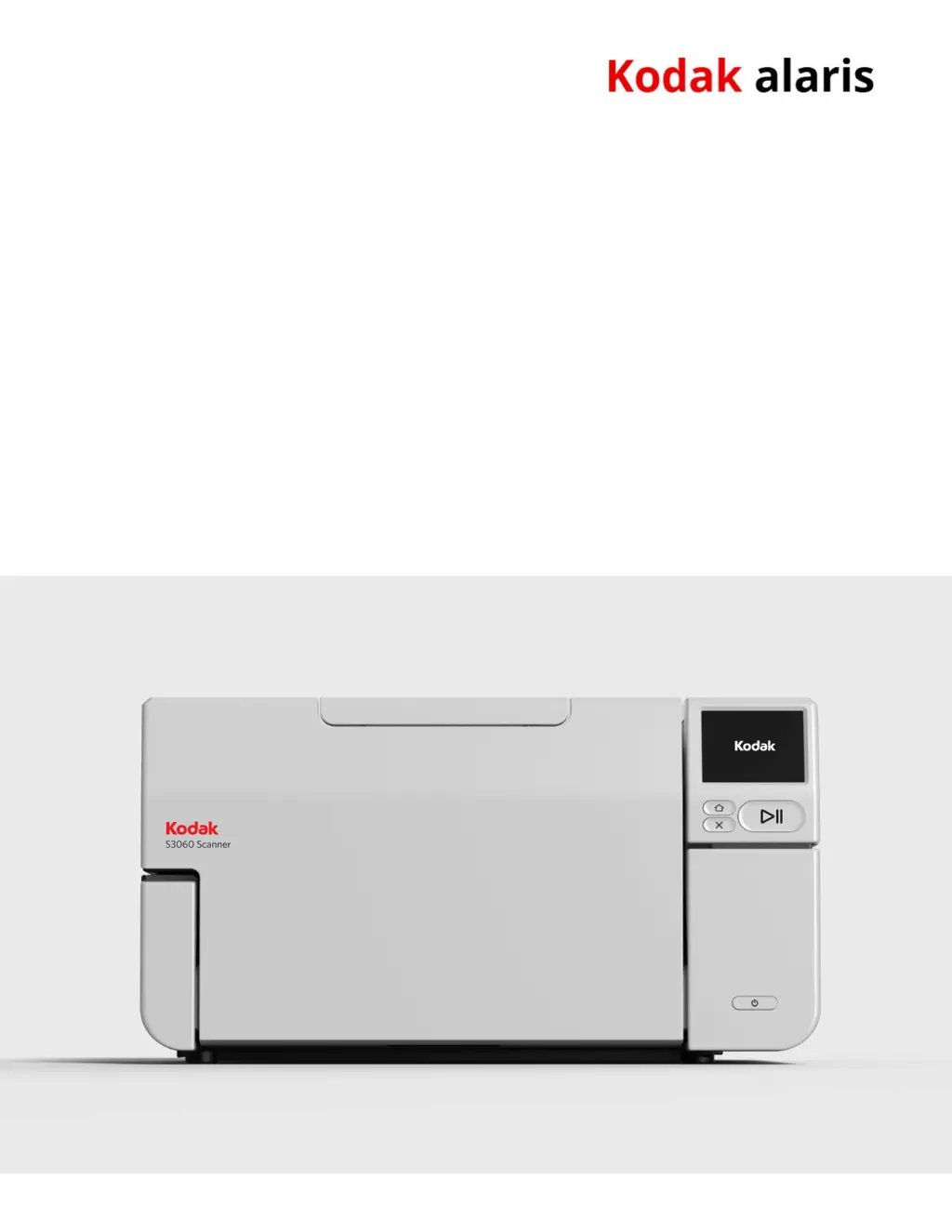

A-61981

KODAK S2085f Scanner

KODAK S3060 Scanner

KODAK S3060f Scanner

User's Guide

KODAK S3100 Scanner

KODAK S3100f Scanner

KODAK S3120 Scanner

KODAK S3120

Max

Scanner

KODAK S3140 Max Scanner

Kodak S2000f/S3000 Series Scanners

Table of Contents

Questions and Answers:

K
kmunozAug 19, 2025
What to do if documents are jamming in my Kodak S2085f?
- S
  stewartedwardAug 20, 2025
  To address documents jamming or multiple documents feeding in your Kodak scanner, ensure all documents meet the size, weight, and type specifications detailed in Appendix A. Remove all staples and paper clips. Clean all rollers and tires, and ensure the separation roller and feed module are properly installed. To remove a document jam, remove any documents from the feeder area, open the scanner cover, locate and remove the jammed document(s), then close the scanner cover and resume scanning.
A
Alexander MorrisAug 21, 2025
Why is my Kodak S2085f not feeding documents?
- L
  Lisa ShawAug 21, 2025
  If your Kodak scanner won't scan or feed documents, check the following: Ensure the power cord is plugged in and the power is on, with the green LED lit. Verify the scanner cover is completely closed and documents are making contact with the feed module and covering the paper present sensor. Confirm documents meet the required size, weight, and type specifications. For thicker documents, turn the gap release dial vertically. For curled, wrinkled, perforated, or slippery documents, engage the feeder adjustment tab. Check the feed module and separation roller for wear and replace if necessary. Power cycling the scanner may also help.
K
Katie BensonAug 25, 2025
How to fix a paper jam in Kodak Scanner?
- M
  marshbarryAug 25, 2025
  If your Kodak scanner is experiencing a paper jam, open the scanner cover and carefully remove the jammed pages.
D
david03Aug 26, 2025
What to do if my Kodak S2085f is multifeeding?
- D
  david45Aug 26, 2025
  If your Kodak scanner is experiencing a multifeed, open the scanner cover and remove the pages that were fed together. Choose one of the options presented on the scanner screen to proceed.
B
Brandi MurphyAug 27, 2025
What to do if long documents jam in Kodak S2085f?
- F
  finleykimAug 27, 2025
  If 11 inches / 27.94 cm or longer documents are not feeding or are jamming in your Kodak scanner, make sure the input and output tray extenders are pulled out to provide support for long documents.
A
Andrew GibsonAug 29, 2025
Why is my Kodak S2085f Scanner running so slow?
- A
  Alicia MartinezAug 29, 2025
  If your Kodak scanner is running slowly, your PC may not meet the minimum requirements. Try disabling any anti-virus or security suite software. Some image processing functions can reduce scanner speed. The resolution (dpi) setting may be too high. Ensure you are scanning to a local drive.
M
Michelle VillarrealAug 31, 2025
How to fix skewed scanning on Kodak S2085f?
- M
  Michael LangAug 31, 2025
  To correct skewed documents during scanning with your Kodak scanner, ensure the input tray side guides are adjusted to fit the documents, and that documents are fed perpendicular to the feed module. Remove all staples and paper clips. Clean the feed module, separation roller, and drive rollers. Make sure the scanner cover is firmly closed.
U
uhallSep 2, 2025
How to remove vertical lines from Kodak Scanner images?
- S
  Shannon TaylorSep 2, 2025
  If vertical lines appear on the image when using your Kodak scanner, clean the CIS Imagers. Alternatively, enable the Streak Filter option or increase its aggressiveness.
J
Jason SmithSep 4, 2025
Why is my Kodak S2085f Scanner multifeeding documents?
- S
  Sydney HughesSep 5, 2025
  To prevent documents from multifeeding in your Kodak scanner, ensure the leading edges of all batched documents are centered in the feeder. Verify that the feed module and separation roller are clean and not worn. Feed documents with an unusual texture or surface manually. Ensure the gap release is not in the vertical position.
C
Claudia ChavezSep 6, 2025
Why does my Kodak S2085f Scanner pause so much during scanning?
- M
  Melissa ReyesSep 6, 2025
  If your Kodak scanner pauses excessively during scanning, ensure the host computer meets the minimum requirements. Verify there is enough free space on the hard disk drive and close all other applications. Use a USB 2.0 (or higher) connection. You can also try changing the scanning options (compression, etc.) in your scanning application.

Kodak S2085f Specifications

General

Scanner Type	Document Scanner
Optical Resolution	600 dpi
Duplex Scanning	Yes
Color Depth	24-bit
Grayscale Depth	8-bit
Output File Formats	PDF, JPEG, TIFF, RTF, BMP
Maximum Document Size	8.5 x 14 inches
Output Resolution	75 / 100 / 150 / 200 / 240 / 300 / 400 / 600 dpi
Interface	USB 3.2 Gen 1
Supported Operating Systems	Windows 10

Summary

Safety

User Precautions

Essential safety guidelines and precautions for operating the scanner safely.

Installation and First Scan

Unboxing and Initial Setup

Covers unboxing the scanner and performing the initial setup procedures.

Software Installation and Updates

Guidance on installing drivers, firmware, and available scanning software.

Preparing for Scanning

Steps to get the scanner and documents ready for the initial scanning process.

Scanner Adjustments and Operation

Input and Output Tray Adjustments

Touch Screen and Settings Configuration

Navigating the touch screen interface and configuring scanner settings.

Document Printing

Maintenance and Replacement Procedures

Cleaning Tools and Procedures

Lists necessary tools and detailed steps for cleaning scanner components.

Replacement of Consumables

Troubleshooting and Service

Problem Resolution Resources

Contacting Technical Support

Warranty Information

Service Programs
