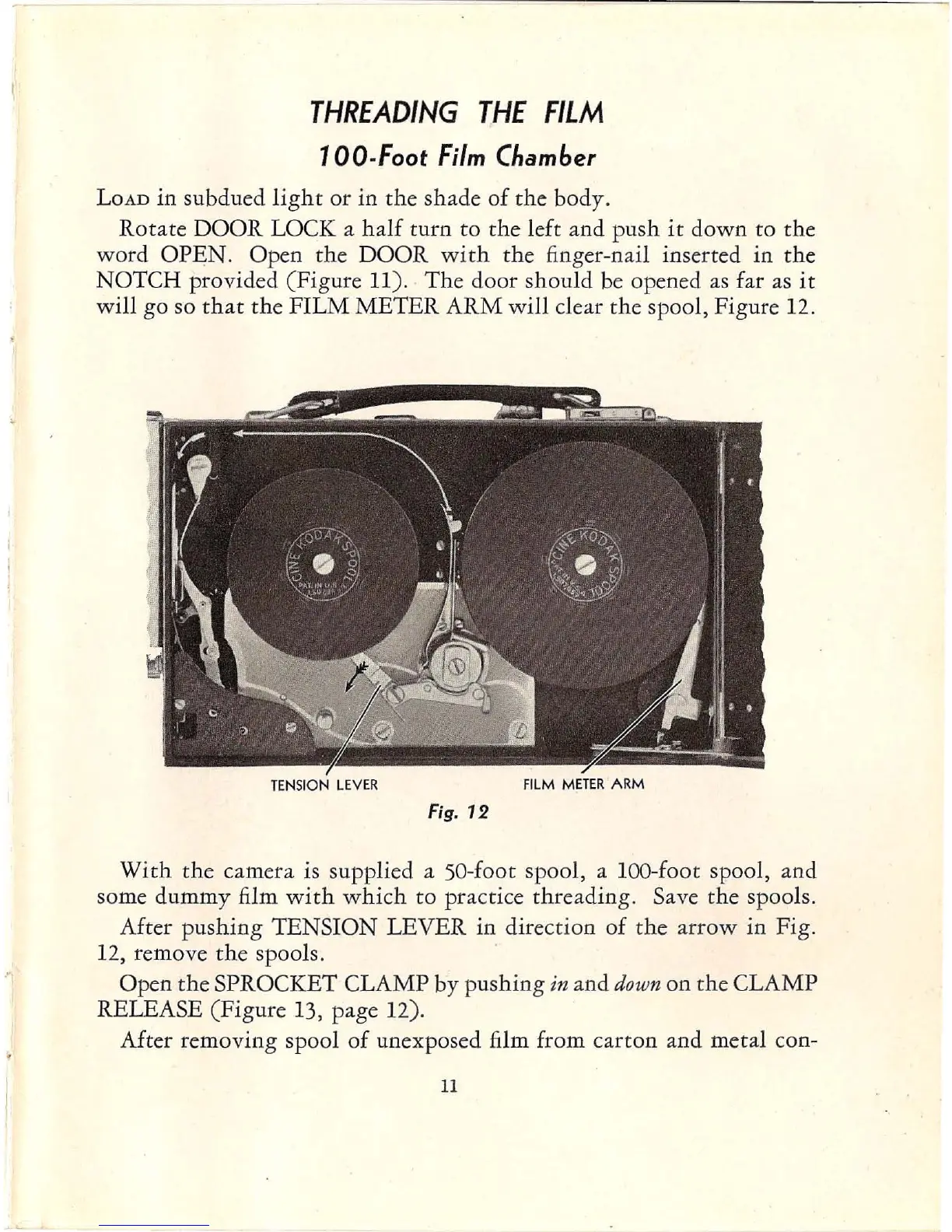

THREADING
THE
FILM
100-Foot
Film
Chamber
LOAD
in
subdued
light
or
in
the
shade
of
the body.
Rotate
DOOR LOCK a
half
turn to
the
left and push
it
down to the
word
OPF;N. Open
the
DOOR
with
the finger-nail inserted in the
NOTCH provided (Figure 11). The door should be opened
as
far
as
it
will
go so
that
the
FILM
METER
ARM
will
clear the spool, Figure 12.
TENSION
LEVER
FILM
METER
ARM
Fig.
12
With
the camera is supplied a 50-foot spool, a lOO-foot spool, and
some dummy film
with
which
to practice threading. Save
the
spools.
After
pushing
TENSION LEVER in direction
of
the
arrow
in
Fig.
12, remove
the
spools. .
Open
the
SPROCKET CLAMP by pushing in and down on
the
CLAMP
RELEASE (Figure 13, page 12
).
After removing spool
of
unexposed film from carton and metal con-
11
