Kodak SPECIAL User Manual

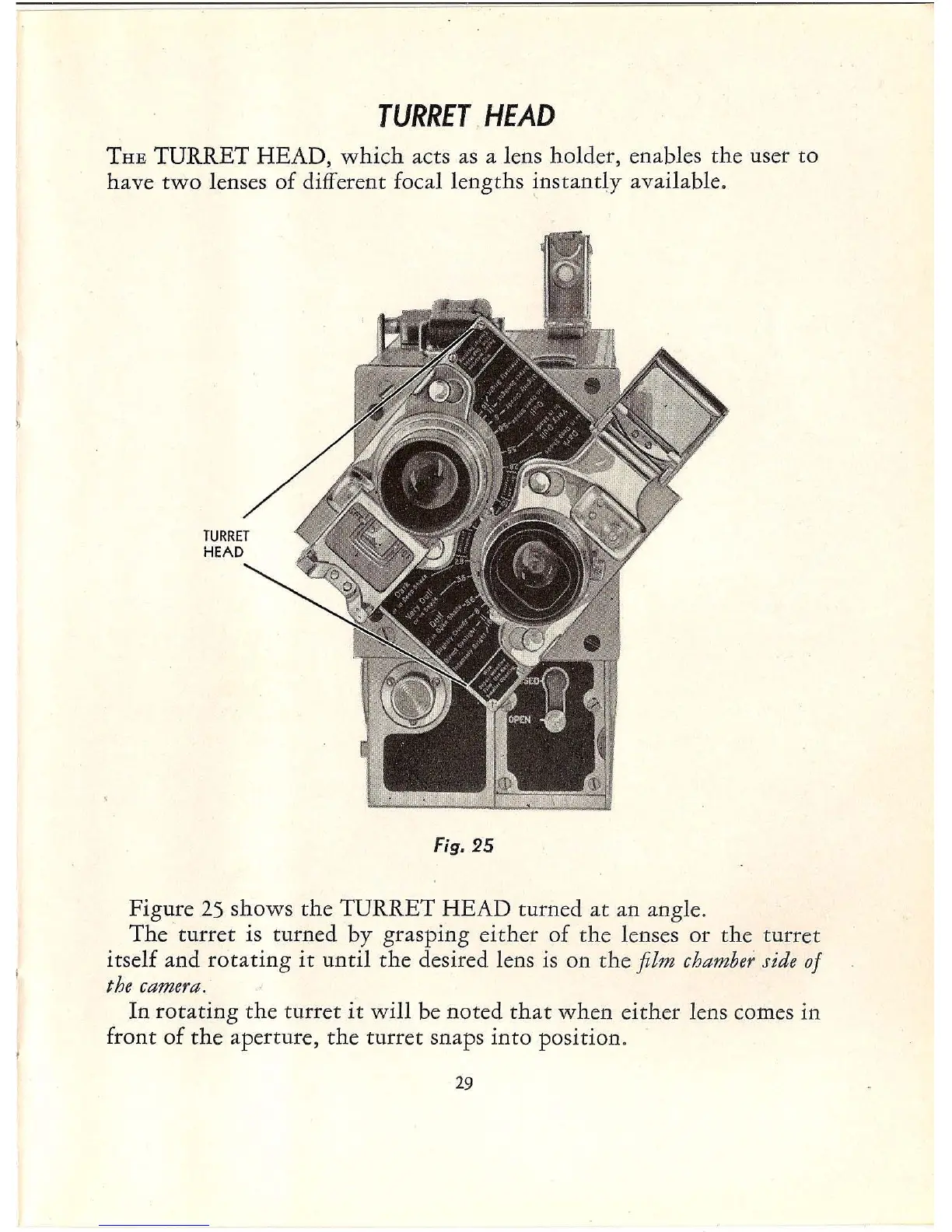

TURRET HEAD
THE TURRET HEAD, which acts as a lens holder, enables the user to
have two lenses of different focal lengths instantly available.
Fig. 25
Figure 25 shows the TURRET HEAD turned at an angle.
The · turret is turned by grasping either of the lenses or the turret
itself and rotating it until the desired lens is on the film chamber side of
the camera.
In rotating the turret it will be noted that when eithe r lens comes in
front of the aperture, the turret snaps into position.
29

Kodak SPECIAL Specifications

General

Film Format	35mm
Image Size	24 x 36mm
Type	Rangefinder camera
Film Type	35mm
Focus	Manual
Viewfinder	Optical rangefinder
Aperture	f/3.5 - f/16
