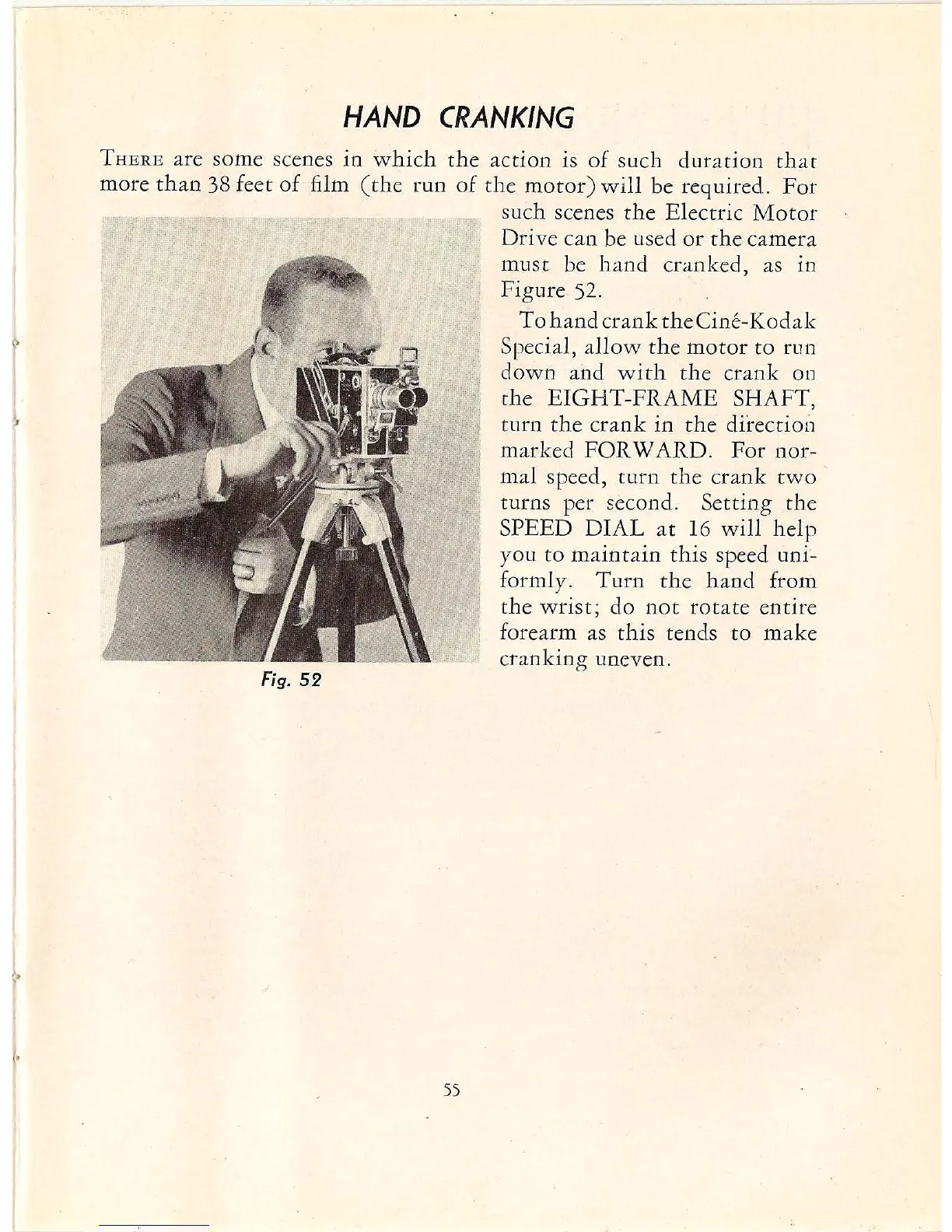

HAND CRANKING
THERE are some scenes in which the action is of such duration thar
more than 38 feet of film (the run of the motor) will be required. For
Fig. 52
55
such scenes the Electric Motor
Drive can be used or the camera
must be hand cranked, as in
Figure
S2.
To hand crank the Cine- Kodak
Special, allow the motor to run
down and with the crank on
the EIGHT-FRAME SHAFT,
turn
the crank in the directioil
marked FORWARD. For nor-
mal speed, turn
the crank two
turns per second. Setting the
SPEED DIAL at 16 will help
you to maintain this speed uni-
formly. Turn the hand from
the wrist; do not rotate entire
forearm as
this tends to make
cranking uneven.

Kodak SPECIAL Specifications

General

Film Format	35mm
Image Size	24 x 36mm
Type	Rangefinder camera
Film Type	35mm
Focus	Manual
Viewfinder	Optical rangefinder
Aperture	f/3.5 - f/16
