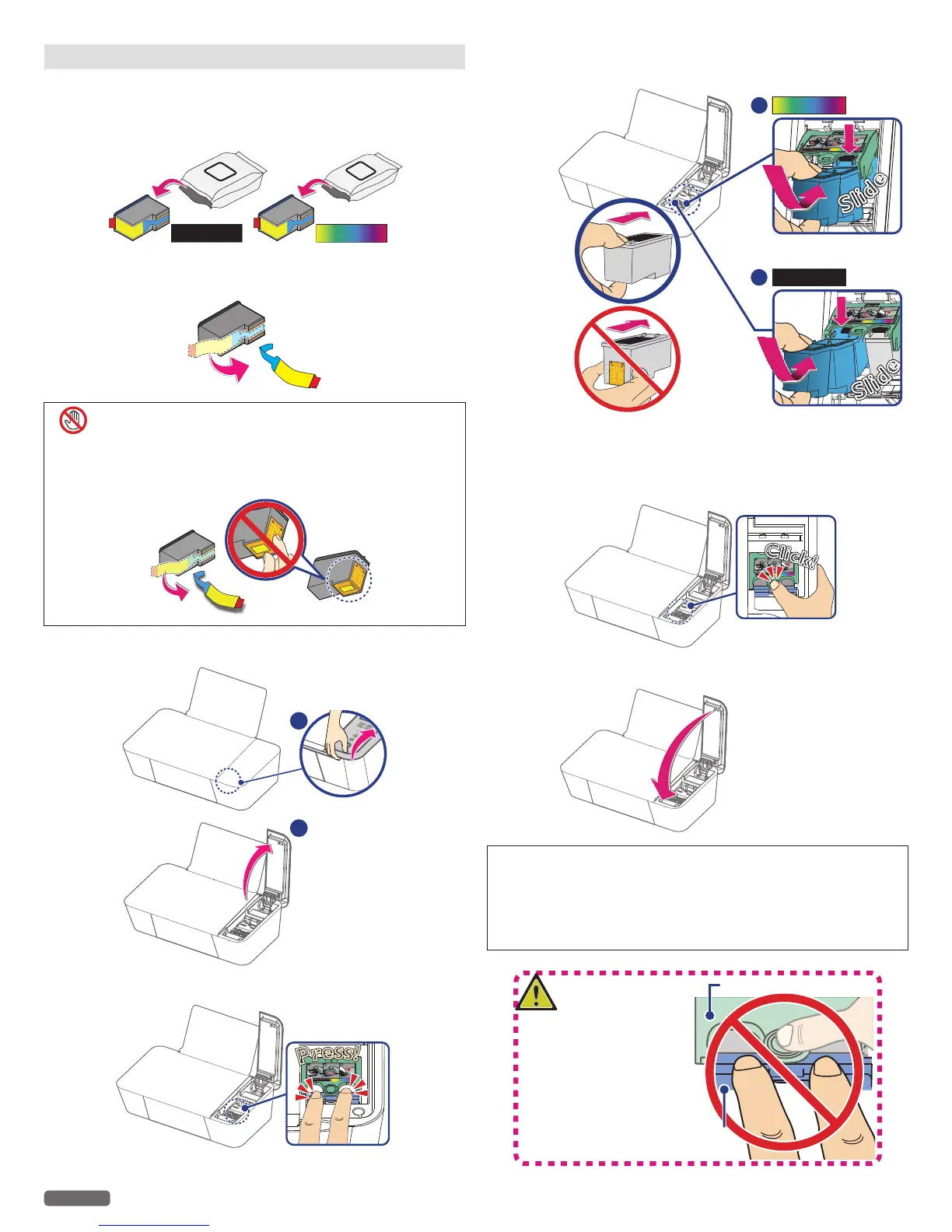

Install ink cartridges
Install ink cartridges to ink cartridge holder
1 Remove the black and color ink cartridges from packaging.
5
■■
L
BLACK
5
■■
L
COLOR
ColorBlack
2 Remove the plastic tapes on the black and color ink cartridges
using the red pull tab.
DO NOT TOUCH
• Do not touch the gold contact area on the back or the metal
nozzles on the bottom of the cartridge.
3 Lift the ink door to access the cartridge slot.
1
2
4 Press the cartridge tab to open the cartridge slot.
P
r
e
s
s
!
P
r
e
s
s
!
5 Set the color ink cartridge all the way into the cartridge slot on the
right side.
1
Color
(Right)
2
Black
(Left)
S
l
i
d
e
S
l
i
d
e
S
l
i
d
e
S
l
i
d
e
S
l
i
d
e
S
l
i
d
e
6 Set the black ink cartridge all the way into the cartridge slot on the
left side.
7 Push and click the cartridge tab to close the cartridge slot until the
cover snaps securely into position.
C
l
i
c
k
!
C
l
i
c
k
!
8 Close the ink door.
CAUTION C
Ink Cartridge Not Inserted Correctly!
• If the ink door does not close properly, the ink cartridges are
not inserted correctly. Remove the ink cartridges and then
insert them again.
Blue
Green
Do NOT push the green/blue
parts at the same time.
Continued on next page.
