VRM Unit Setting VRM unit
••
NM: Nautical mile
••
KM: Kilometer
••
SM: Statute mile
g) Water temperature Setting water temperature
unit
°
C: Celsius
F: Fahrenheit
h) Depth Unit Setting Depth unit
M: Meter
FT: Feet
FM: Fathom
i) EBL Mode Setting Mode of EBL
REL: Relative bearing from HM
TRUE: True bearing
MAG: Magnetic bearing
j) WayPoint Mode Setting WayPoint bearing mode
TRUE: True bearing
MAG: Magnetic bearing
k) Heading Source Setting Heading source;
NMEA
SIN/COS: Compass Data with SIN/COS signal
12BIT: Compass Data with 12bits serial signal
10BIT: Compass Data with 10bits serial signal
l) Heading Type Heading Information Type setting
MAG: Magnetic bearing
TRUE: True bearing
m) Cross cursor position display Mode
DIST/BRG: Range and Bearing indication
LAT/LON: Latitude and Longitude indication

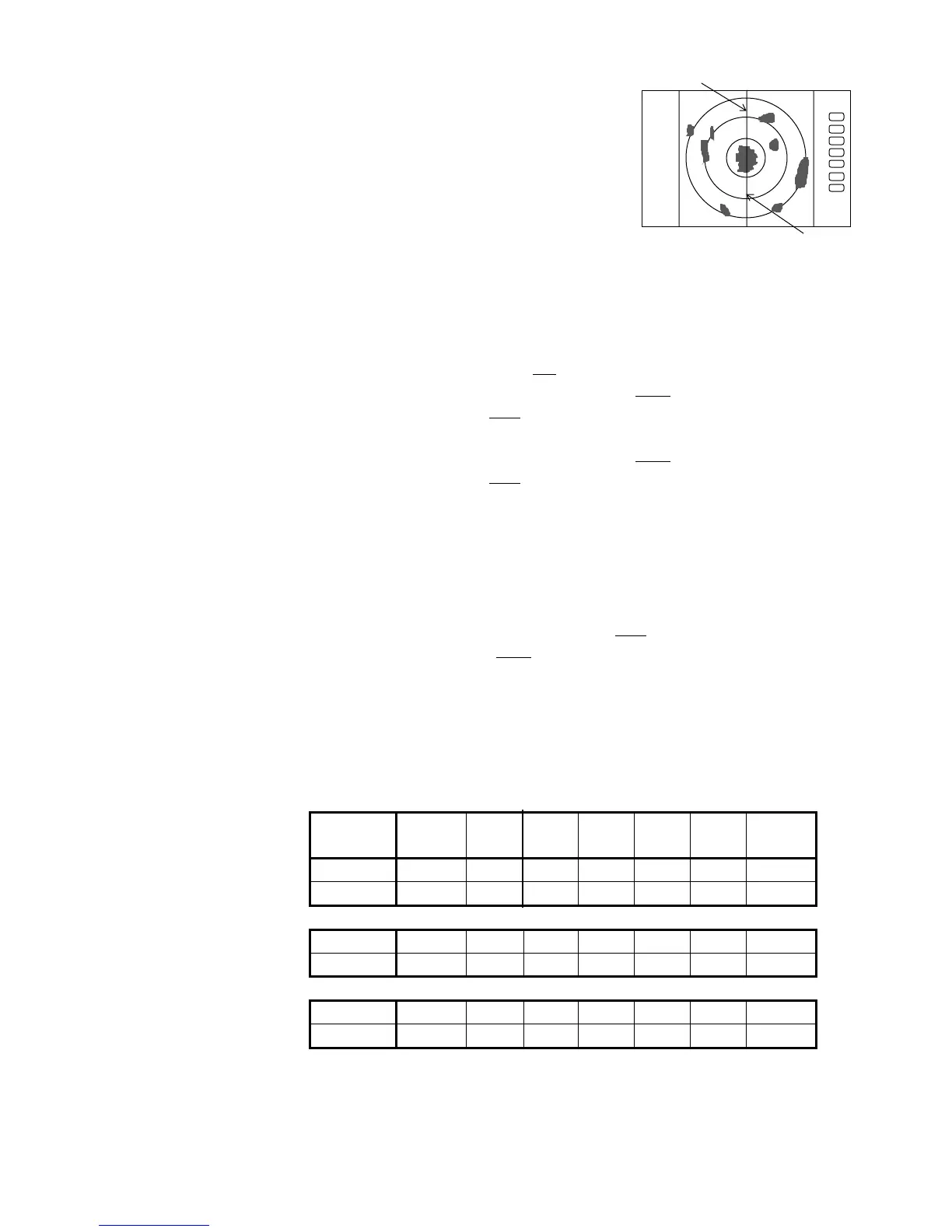

n) Transmitting pulse width Pulse setting for Range (Note: )
Note: P TABLE
PUSLE
TYPE
•
0.25
NM
0.5 0.75
NM NM
1.5
NM
3
NM
6
NM
•
12
NM
P TABLE 0
SHORT 0 0 0 0 0 1 2
LONG 0 0 0 1 1 2 2
P TABLE 1
SHORT 0 0
•
0
011 2
LONG 0 0 1122 2
P TABLE 2
SHORT 0 0 0 1 1 1 2
LONG 0 1 1222 2
Note
•
RA40C Pulse width 0 : 0.12 uS, 1 : 0.3 uS, 2 : 0.8 uS
ΡΑ41Χ/42Χ Πυλσε ωιδτη
0 : 0.08 uS, 1 : 0.25 uS, 2 : 0.8 uS
Heading Marker
S
tern Marker
.75
.25
HU
