TP-6068 10/0212 Section 3 Scheduled Maintenance
3.4 Lubrication System
See the Scheduled Maintenance section for oil change
and oil filter replacement intervals. See Section 1 for the
oil drain, oil check, oil fill, and oil filter locations.
x:sm:001:002:
3.4.1 Oil Specifications
Use oil that meets the American Petroleum Institute
(API) classification of CD, CC/CD, or CC. Using an
unsuitable oil or neglecting an oil change may result in

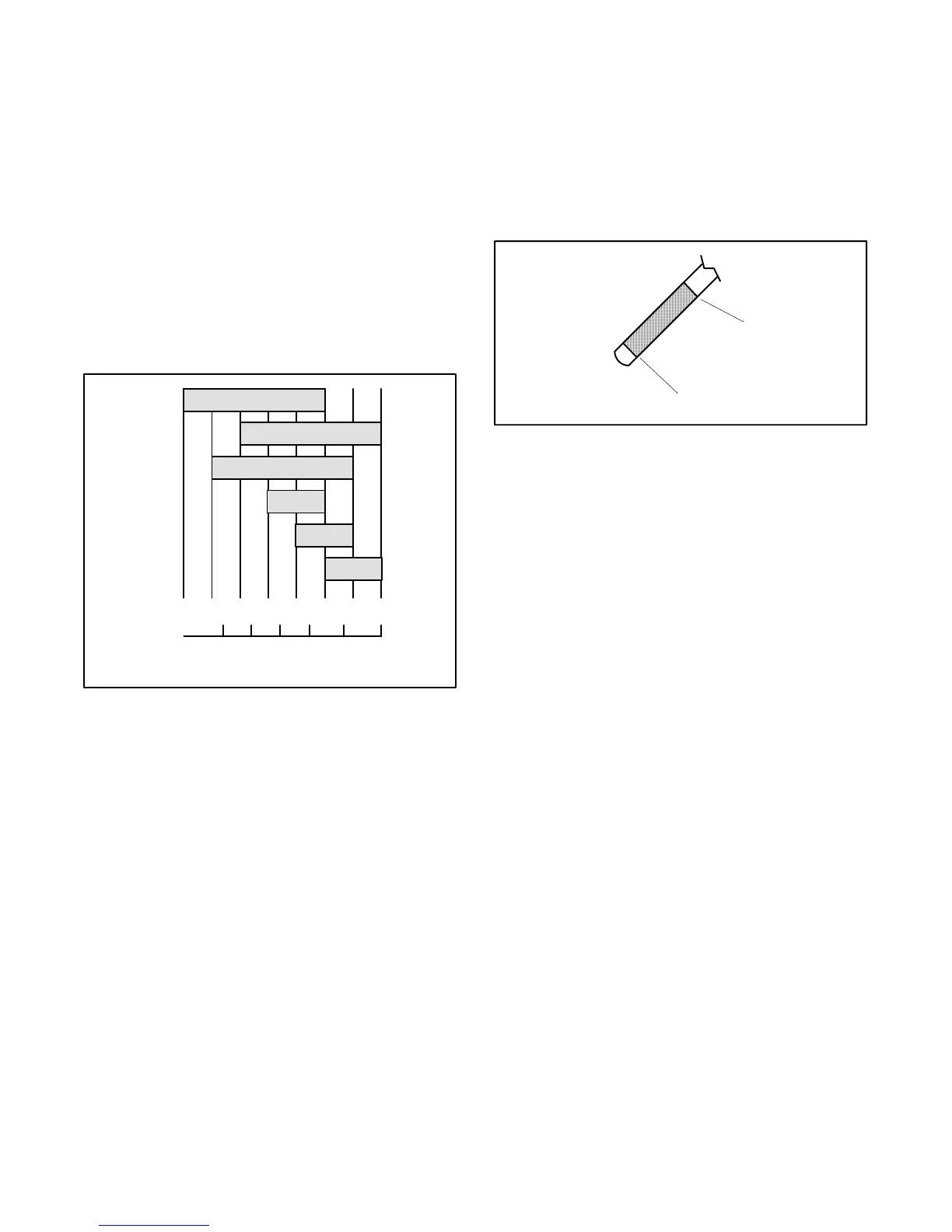

damage and a shorter engine life. Figure 3-1 shows the
recommended Society of Automotive Engineers (SAE)
viscosity designation for given operating temperature
ranges.
°C
°F
-- 3 0 -- 2 0 -- 1 0 0 1 0 2 0 3 0 4 0
0204060 80 100
°C
°F
5W20
20W40
10W30
20W20
20W30
20W40
TP-5856-1
SAE
Service
Grade
Operating Temperature
Figure 3-1 Engine Oil Selection
Note: Failure to observe the oil specifications may
cause inadequate lubrication/oil pressure and
cold-starting difficulties.
3.4.2 Oil Check
Check the oil level in the crankcase daily or before each
startup to ensure that the level is in the safe range. To
check the oil level, remove the dipstick and wipe the end
clean, reinsert as far as possible, and remove. Maintain
the oil level between the Min and Max marks on the
dipstick, as shown in F igure 3-2. See Section 1 for
dipstick location.
1
2
TP-5586-3
1. Min mark
2. Max mark
Figure 3-2 Oil Level Check Marks
Note: Do not operate the set if the oil level is below the
Min mark or above the Max mark.
