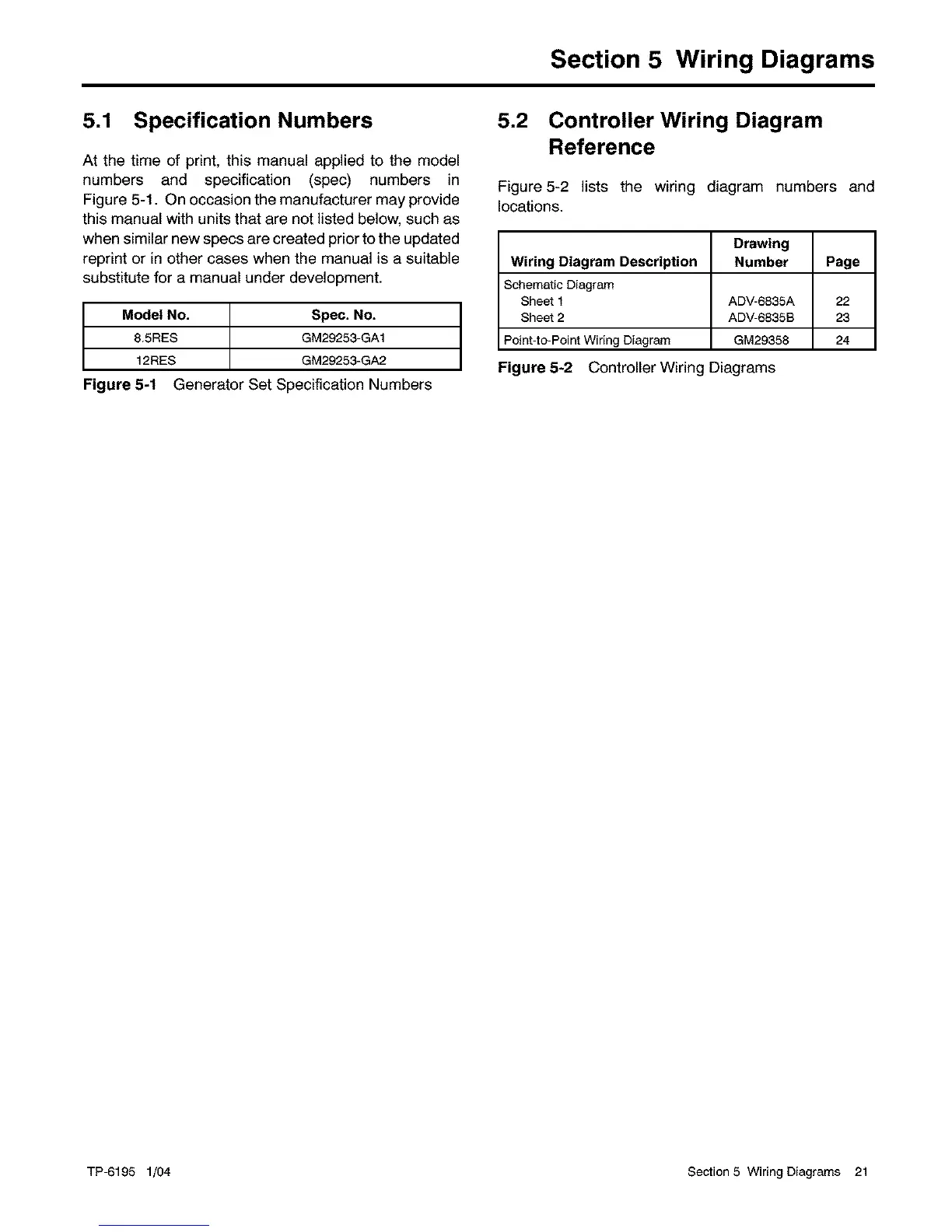

Section 5 Wiring Diagrams
5.1 Specification Numbers
At the time of print, this manual applied to the model
numbers and specification (spec) numbers in
Figure 5-1. On occasion the manufacturer may provide
this manual with units that are not listed below, such as
when similar new specs are created prior to the updated
reprint or in other cases when the manual is a suitable
substitute for a manual under development.
Model No. Spec. No.
8.5RES GM29253-GA1
12RES GM29253-GA2
Figure 5-1 Generator Set Specification Numbers
5.2 Controller Wiring Diagram
Reference
Figure5-2 lists the wiring diagram numbers and
locations.
Drawing
Wiring Diagram Description Number Page
Schematic Diagram
Sheet 1 ADV-6835A 22
Sheet 2 ADV-6835B 23
Point-to-Point Wiring Diagram GM29358 24
Figure 5-2 Controller Wiring Diagrams
TP-6195 1/04 Section 5 Wiring Diagrams 21
