TP-6196 10/0918 Section 1 Specifications
1 2 3 65 7
25
1617
4
13
20
12
19
24
14
9
26
ADV6823
10
11
12
18
8
21 2322
15
Fuel System DetailStarter (non-service side)
1. Enclosure
2. Muffler
3. Oil check
4. Oil fill
5. Air cleaner
6. Spark plug locations (both sides)
7. Controller
8. Generator set master switch (RUN\OFF/RESET\AUTO)
9. Nameplate
10. Line circuit breaker
11. Battery charger
12. Air intake
13. Engine starting battery location
14. Oil drain hose
15. High engine temperature (HET) sensor
(located on non-service side)
16. Oil drain valve
17. Oil filter
18. Air intake, alternator
19. Exhaust
20. Spark arrestor (not visible in this view)
21. Relay interface board (RIB)
22. SCR module
23. Digital spark advance module leads
(DSAM leads, ignition timing)
24. Multi-fuel block
25. Secondary fuel regulator assembly
26. Fuel solenoid valve
27. Starter solenoid
28. Positive battery connection
29. Starter relay
30. Negative battery connection
31. DSAM ground screw
26
25
24
27
28
30
31
29

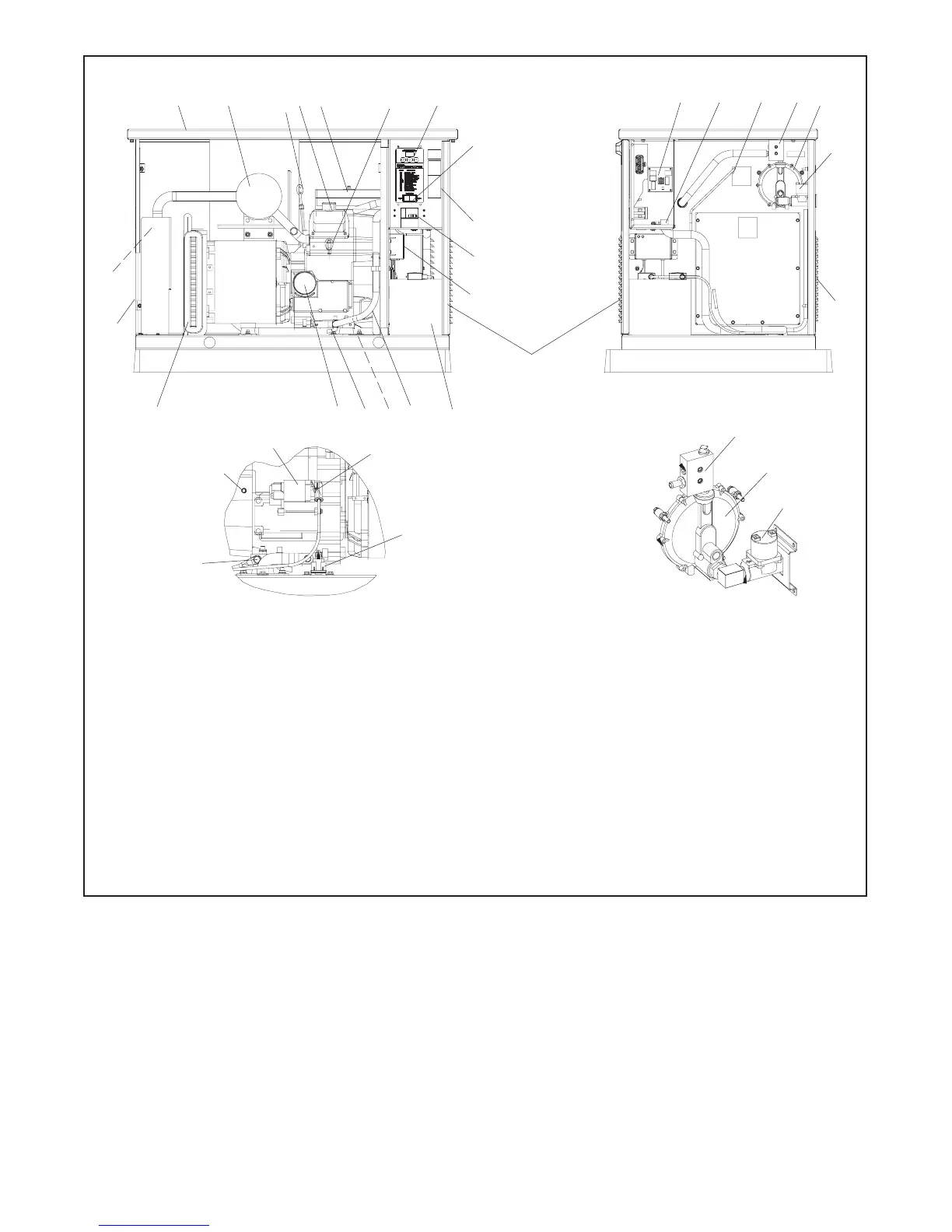

Figure 1-3 Generator Set Service View, 12 kW Model with ADC 2100 Controller
