7-20 Component Testing and Adjustment TP-5606 6/02
D There must be continuity between leads 1 and 2.
D There must be continuity between leads 3 and 4.
D There must be continuity between leads 33 and 44.
D There must be continuity between leads 33 and 55.
D There must be continuity between leads B1 and
B2.
D There must be NO continuity between lead 1 and
leads 3, 4, 33, 44, and 55.
D There must be NO continuity between lead 1 and
leads B1 and B2.
D There must be NO continuity between lead 4 and
leads B1 and B2.
D There must be NO continuity between any stator
lead and ground on stator housing or frame
laminations.
D If any check fails, the stator must be repaired or
replaced.
1-847

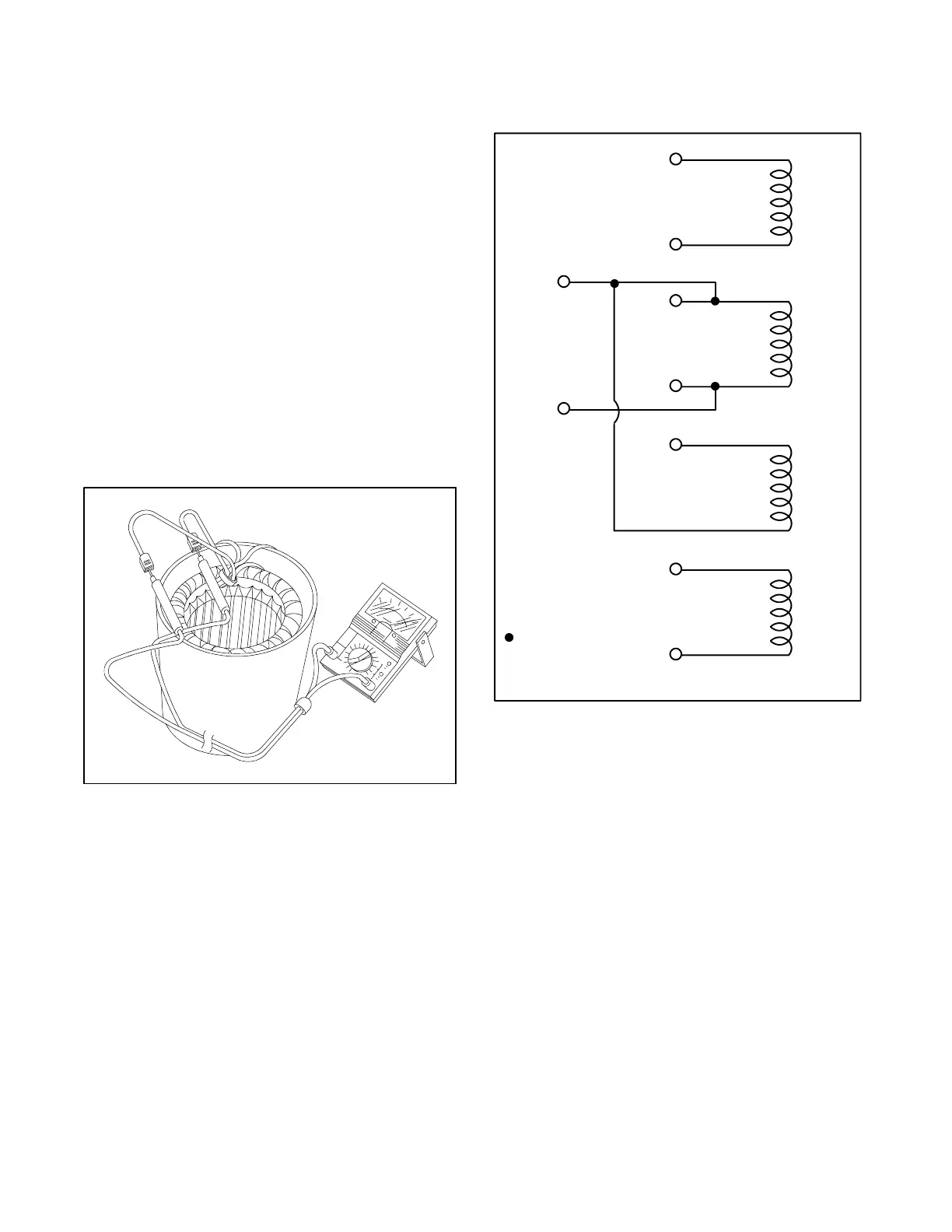

Figure 7-16. Stator Resistance Check
1
2
3
4
B1
B2
55
33
44
Denotes
internal
connections only
TP-5414-7
Figure 7-17. Generator Stator Leads
