Disassembly/Reassembly 8-7TP-5606 6/02
20. Replace the mounting screws securing the
controller cover to the controller.
21. Remove the retaining wires from the brush holders
in the end bracket. Be sure that the brushes are
centered on the slip rings. Improper brush position
will cause premature wear.
22. Replace the six screws securing the end bracket
panel.
Three-Phase Generator
Disassembly
NOTE
The voltage regulator is located in the controller.
Adjustments are possible without removing the
controller.

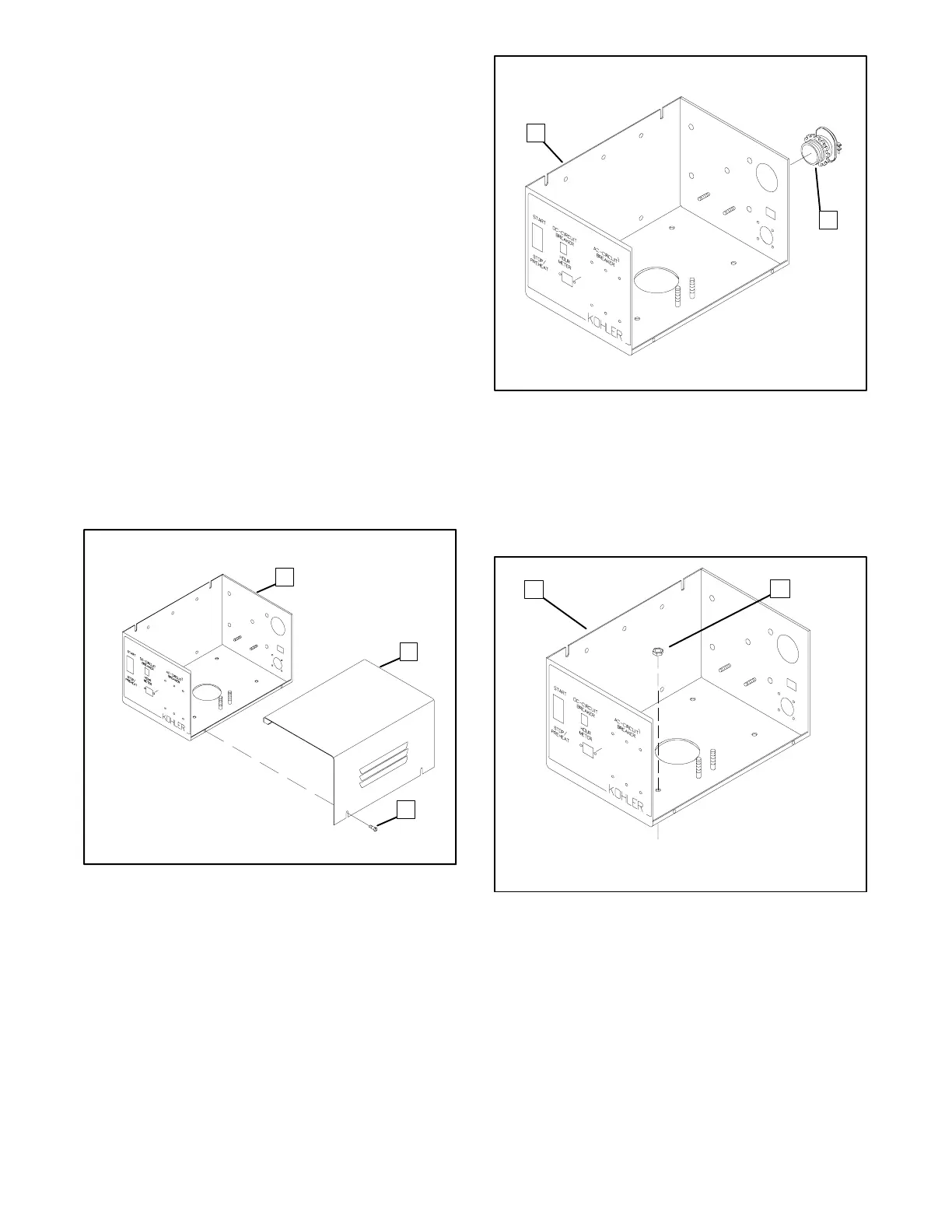

1. Loosen the four screws securing the controller
cover. Separate the cover from the controller. See
Figure 8-19.
1. Controller
2. Cover
3. Screw
2
3
1
Figure 8-19. Removing the Controller Cover
2. Disconnect the 22-pin harness connector from the
stationary connector at the back of the controller.
See Figure 8-20.
1
2
1. Controller 2. 22-Pin Connector
Figure 8-20. Disconnecting the 22-Pin Connector
3. Remove the nuts securing the controller to the
bumpers using a 3/8-inch wrench or nut driver. See
Figure 8-21.
1
2
1. Controller 2. Bumper Nuts
Figure 8-21. Removing the Bumper Nuts
4. Disconnect stator leads from terminals within the
controller.
To Next Page
