Kohler 20CCOZ Service Manual

TP-5606 6/022-8 Operation
Remote Start and
Two-Meter Panel Kit
Allows starting/stopping from a location remote of the
generator set. The illuminated gauges include engine oil
pressure gauge and water temperature gauge.
Generator sets come equipped with a 6-pin connector
on controller for connection of the kit. Overall
dimensions are 6 in. (152 mm) by 6 in. (152 mm) with a
minimum mounting depth of 2.75 in. (70 mm). Requires
Remote Connection/Extension Harness and sender kit.

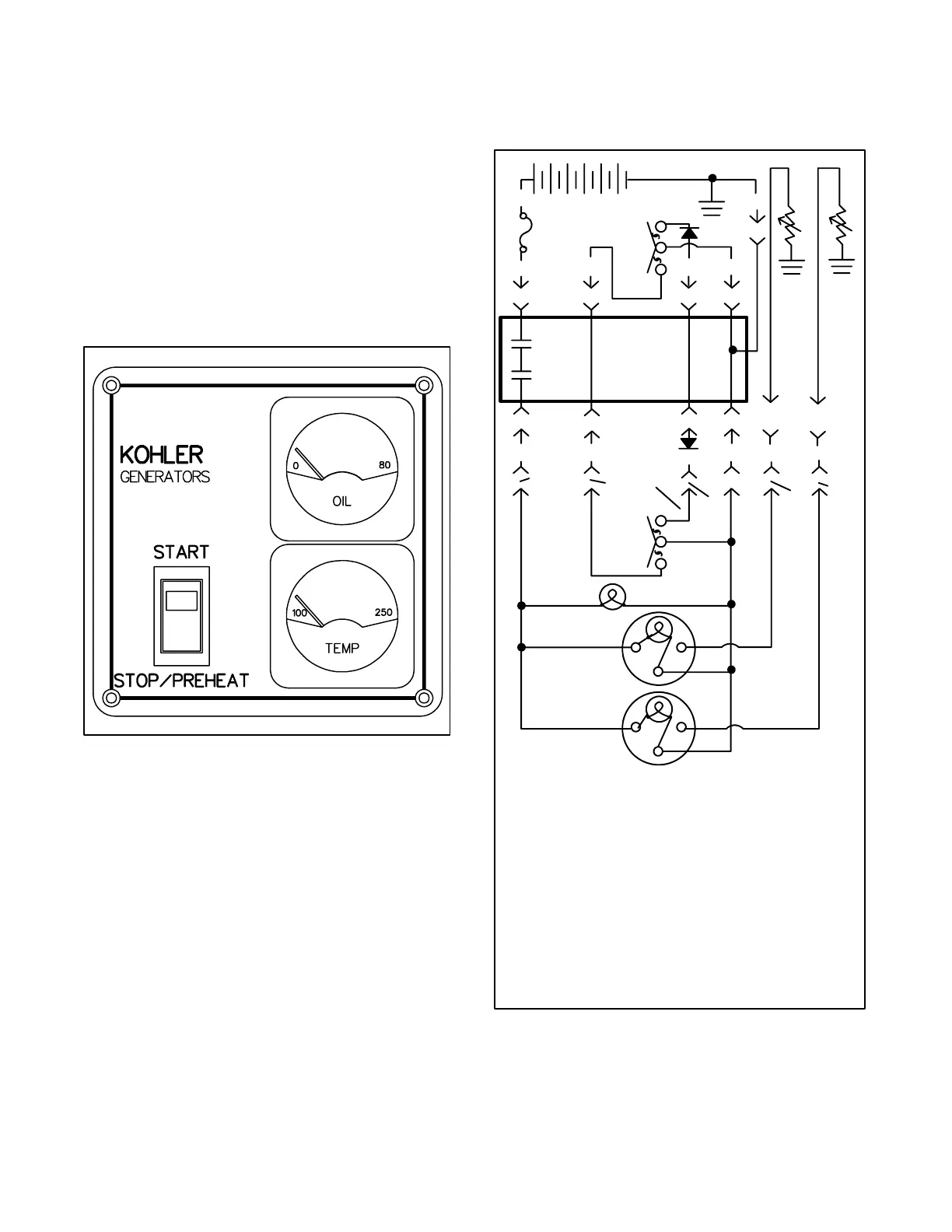

See Figure 2-8 and Figure 2-9 for remote start and
two-meter panel kit.
TT-874
Figure 2-8. Remote Start & Two-Meter Panel Kit
Start-Stop/Preheat Switch--Rocker-type switch with
“ON” light used to start and stop generator set.
During cold weather starts (below 50_F[10_C]):
Place controller start switch in STOP/PREHEAT
position for 15--20 seconds before attempting to start
generator set. This provides energizing of the glow
plugs.
Engine Oil Pressure Gauge--Measures engine oil
pressure. Normal engine operating range is 36--50 psi
(248--345 kPa).
NOTE
During the engine break-in period, it is normal for the
engine to produce higher oil pressure readings.
Water Temperature Gauge--Measures engine coolant
temperature. Normal engine operating range is
180--205° F (82--96°C).
P4-13
(P4-2)
Start
P
P
11(7C)
K1
53(70)
3(47)
2(43)
4(N)
Oil Pressure
Gauge
Water Temp.
Gauge
Gen. ‘ON’
Light
Remote
Switch
10(5)
P3-4
(P3-5)
P3-5
(P3-6)
P3-1
P3-3
(P3-2)
P3-6
(P3-3)
P2-3
P2-7
P2-8 P2-9
P4-10
(P4-3)
K2
P1-14
3(47)
P2-4
2(43)
P2-5 P2-6
4(N)
P1-9
N
+-
Relay
Circuit
Board
Local
Switch
Violet
Tan
Black
Yellow/
Red
Grey/
Black
L.
Blue
Start
10 A.
Fuse
P3-2
(P3-4)
W.T .
Sender
O.P.
Sender
Stop/
Preheat
Stop/Preheat
TT-874
NOTE
When the Start-Stop/Preheat
Switch is in the Start position,
contacts 3 and 4 are closed.
NOTE
Wire and pin numbers for
single-phase systems may differ
from those for three-phase systems,
where they are different, the
single-phase numbers are shown
first followed by the three-phase
numbers in parentheses.
Figure 2-9. Remote Start and
Two-Meter Panel Kit
