TP-5964 7/01 1Section 1 Service Views
Section 1 Service Views
ADV-6346-D
A-226911-D
1. Air cleaner
2. Pressure cap (at surge tank)
3. Overflow tube
4. Surge tank
5. Oil fill
6. Belt guard
7. Lube oil filter
8. Oil drain
9. Fuel feed pump
10. Oil check
11. Fuel filter
12. Controller
13. Nameplate
14. Blower fan circuit breaker (15-amp)
15. Cooling air inlet
16. AC main circuit breaker (80-amp)
17. Remote start connector (rear)
18. Exhaust outlet
19. V-belt
20. Controller harness connector
21. Hourmeter
22. Fuel prime switch
23. Start/stop switch
24. Remote on/off switch
25. Fuel solenoid fuse
26. Input fuse
27. Remote start fuse
1
2
4
3
5
6
7
8911 1013 12
15
14
20
16
19
21
22
23
17
26
25
27
12
12
18
24
26
25
27
20
21
23
24
23
24
Spec: PA-135332 Spec: PA-135333

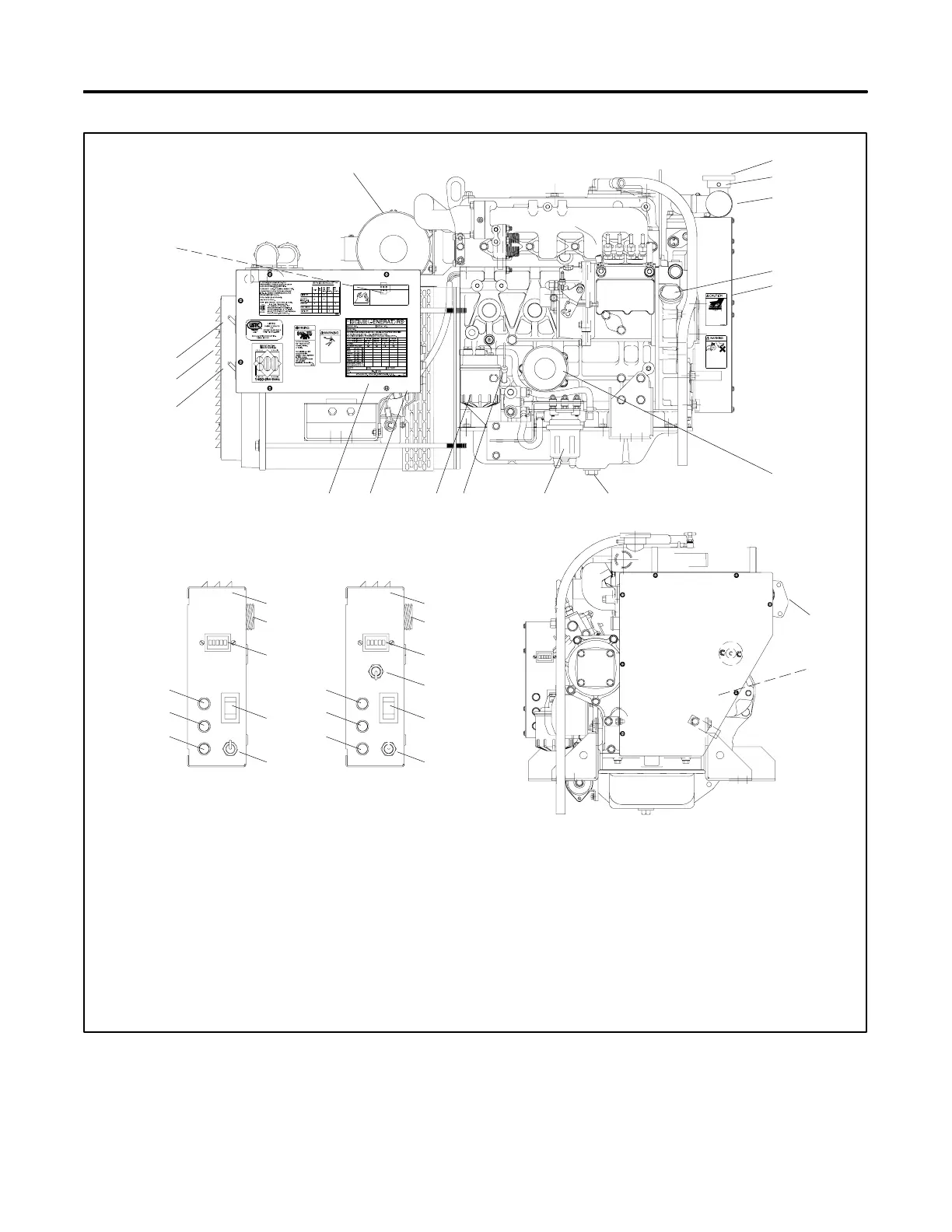

Figure 1-1 Service Views
Note: Consult installation drawings in the spec sheet or
installation manual for fuel-, coolant-, and
battery-connection points.
Note: Consult the distributor/dealer or service manual
for items not shown.
