TP-6805 8/15 105Section 6 Component Testing and Adjustment
6. If the engine speed hunts or surges while the
throttle is held steady, check the carburetor and
engine operation. Refer to the engine service
manual for engine diagnostic and service
information.
1. Electronic governor stepper motor
2. Carburetor throttle linkage
3. Carburetor
3
1
2
1
2
3
14 kW models
20 kW models

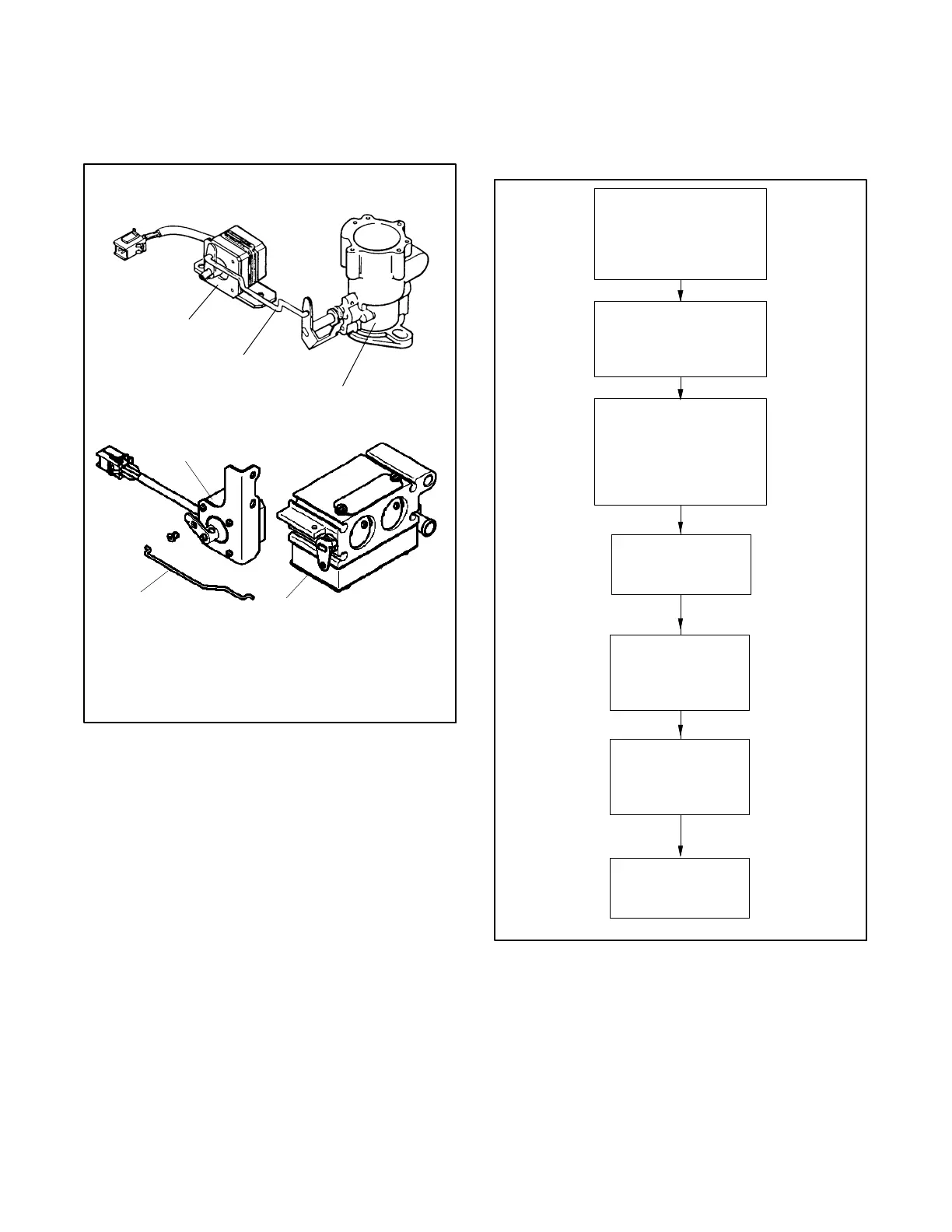

Figure 6-15 Stepper Motor and Carburetor
6.8.4 Governor System Operation Test
If the engine continues to operate erratically after the
previous checks, test the governor system operation
using the following procedure. The procedure is
summarized in the flowchart in Figure 6-16.
tp6805
Check stepper motor
operation at startup. Does
it move to fully open and
then move to and stay in
the fully closed position?
See steps 3 through 7.
Check the stepper
motor coils.
See steps 8
through 10.
Troubleshoot the
controller.
Seestep13.
Check the stepper
motor connections
to the controller.
Check for broken or
loose wiring or
connections and other
itemsinstep2.
Check that the
carburetor throttle
linkage is connected to
the stepper motor as
shown in Figure 6-15.
Check the linkage
to the carburetor.
See steps 11
and 12.
Figure 6-16 Governor System Operation Test
Procedure Summary
To Next Page
