TP-6805 8/15 55Section 4 Controller
3
#
1. Adapter harness GM92802
2. Fuse connection
3. Run relay. Install near start relay. Install fuse (not shown) near relay.
tp6806
1
2
GM92803
14/20RESA/L
GM93317
20RESB
3

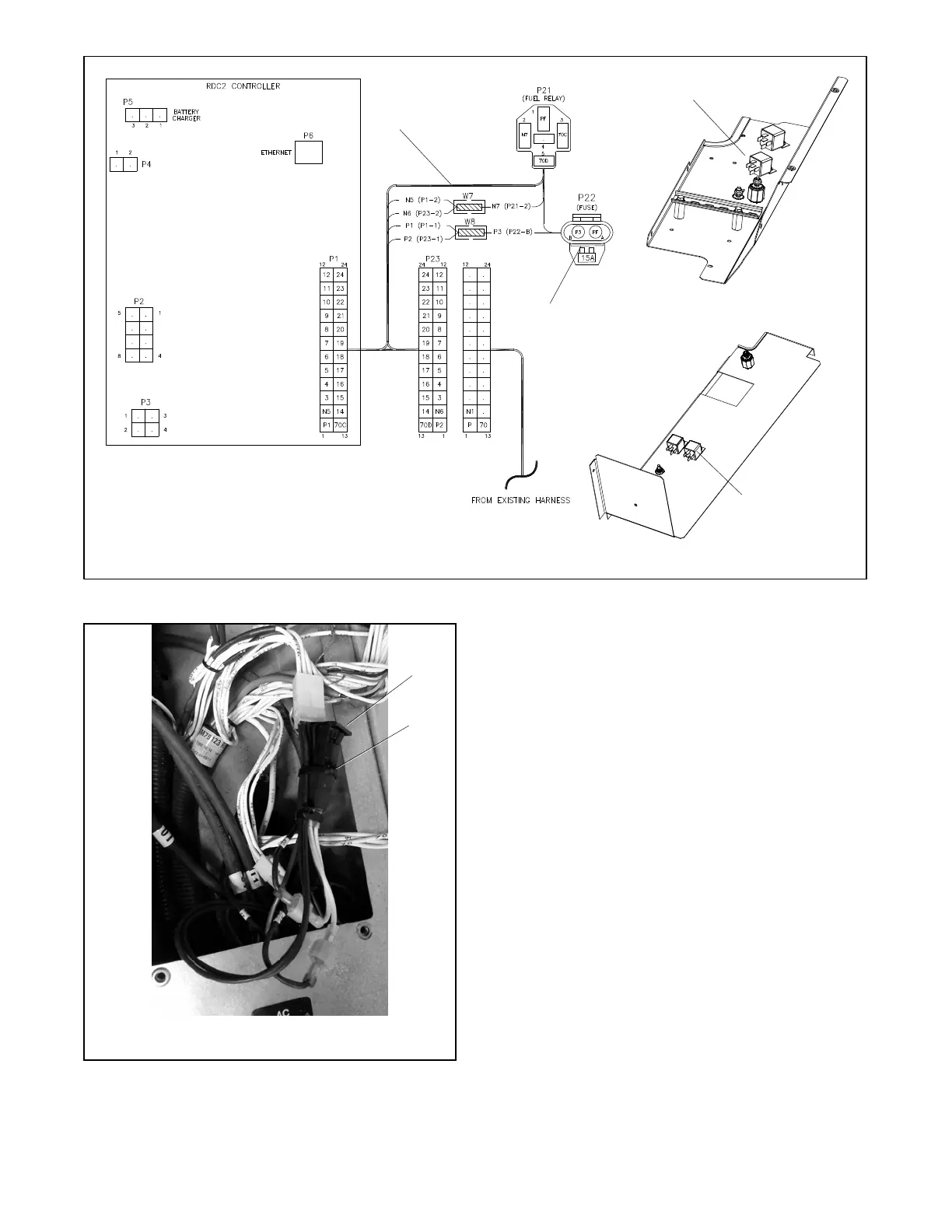

Figure 4-12 Relay and Adapter Harness (for replacing original controller with revised controller only)
1. Mini circuit breaker
2. Cable tie
1
141329
2
Figure 4-13 Mini Circuit Breaker (for replacing
original controller with revised controller
only)
15. Check the firmware version on the controller. See
Section 4.5. Use SiteTech or the USB utility with a
laptop computer connected to the controller’s USB
port to update the firmware to the latest released
version. See the SiteTech Software Operation
Manual or the USB Utility instruction sheet for
instructions.
16. Set up the controller as instructed in Section 4.7,
Controller Setup.
17. Calibrate the voltage. See Section 4.8, Voltage
Calibration.
18. If OnCuer Plus is used to monitor this generator
set, reset the OnCue password on the controller
and note the new password. See Section 4.9,
Setting the OnCue Password. Then connect with
OnCue Plus and enter the new password.
19. Verify that OnCuer Plus can communicate with the
generator set over the Internet before leaving the
job site.

Kohler 20RESC Specifications

General

Rated Output (Gasoline)	20 kW
Rated Output (LPG)	18 kW
Voltage	120/240 V
Frequency	60 Hz
Fuel Type	Gasoline, LPG, Natural Gas
Starting System	Electric
Warranty	5 years limited
Dimensions	48.5 in L x 29 in H
