6.1.12 Remote emergency stop kit.
This switch uses a glass piece that must be replaced after activation.
1. To stop the generator set, pull down on the handle, breaking the glass piece.
2. To reset the emergency stop switch, return the handle to the original position and replace the glass piece with a new
one.
3. Press and hold the controller’s OFF/RESET button for 3 seconds.
Use the single glass piece located inside the switch for replacement and order additional glass pieces as service parts.
6.1.13 Lockable Emergency Stop Switch
This switch can be locked in the activated position to prevent generator set starting. Use a customer-provided locking device
inserted into the holes in the shroud to lock the switch until the generator set can be operated safely.
Operation
Press the red STOP button to shut down the generator set in an emergency.
Using the emergency stop button bypasses the engine cooldown cycle, stopping the engine immediately. The emergency stop
LED on the RSA III lights (if equipped) and the unit shuts down. The generator set cannot be restarted until the emergency stop
switch(es) is/are reset.
Lockout/Tagout
The emergency stop button can be locked in the STOP position. Insert a lock through two openings in the yellow shroud to
prevent the stop button from being pulled out. See Figure 81. Remove the lock for normal operation.
A lock is not required in order to keep the switch activated. The switch button will stay depressed until it is pulled out by the
operator.
Resetting the Emergency Stop Switch
To reset the E-stop switch, remove the locking device and pull the button out. Reset the controller by pressing and holding the
OFF/RESET button for 3 seconds.

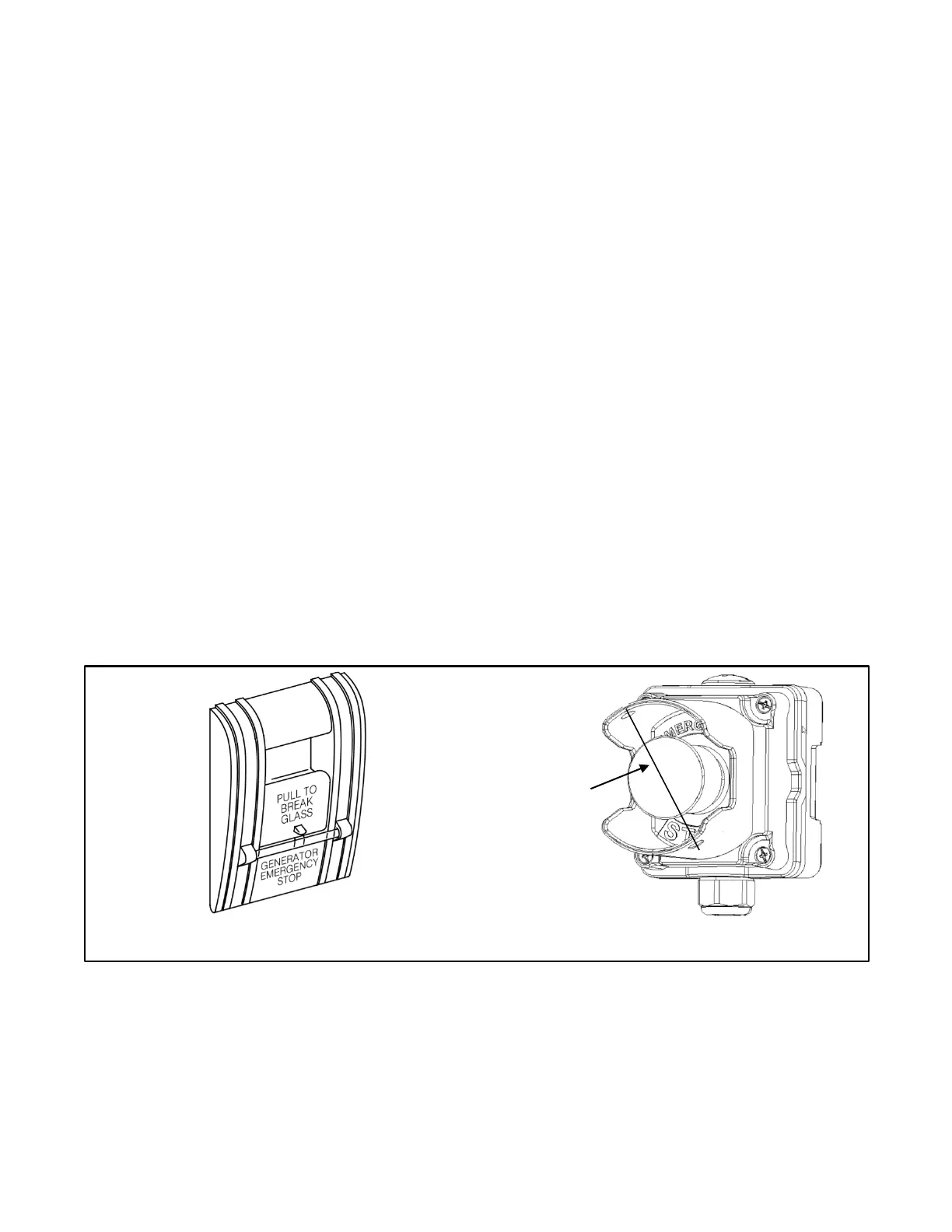

Figure 81 Remote Emergency Stop Switches
