TP-6862 6/14 15Section 3 Cooling System
Seawater
Freshwater (Coolant/Antifreeze)
TP-5592-6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1. Oil c ooler
2. Engine block
3. Thermostat
4. Wa ter-cooled manifold
5. Heat exchanger
6. Exhaust m ixer elbow
7. Water-cooled turbocharger
8. Silencer (customer-supplied)
9. Exhaust outlet
10. Intake strainer
11. Seacock
12. Seawater strainer
13. Engine-driven seawater pump
14. Engine-driven water pump

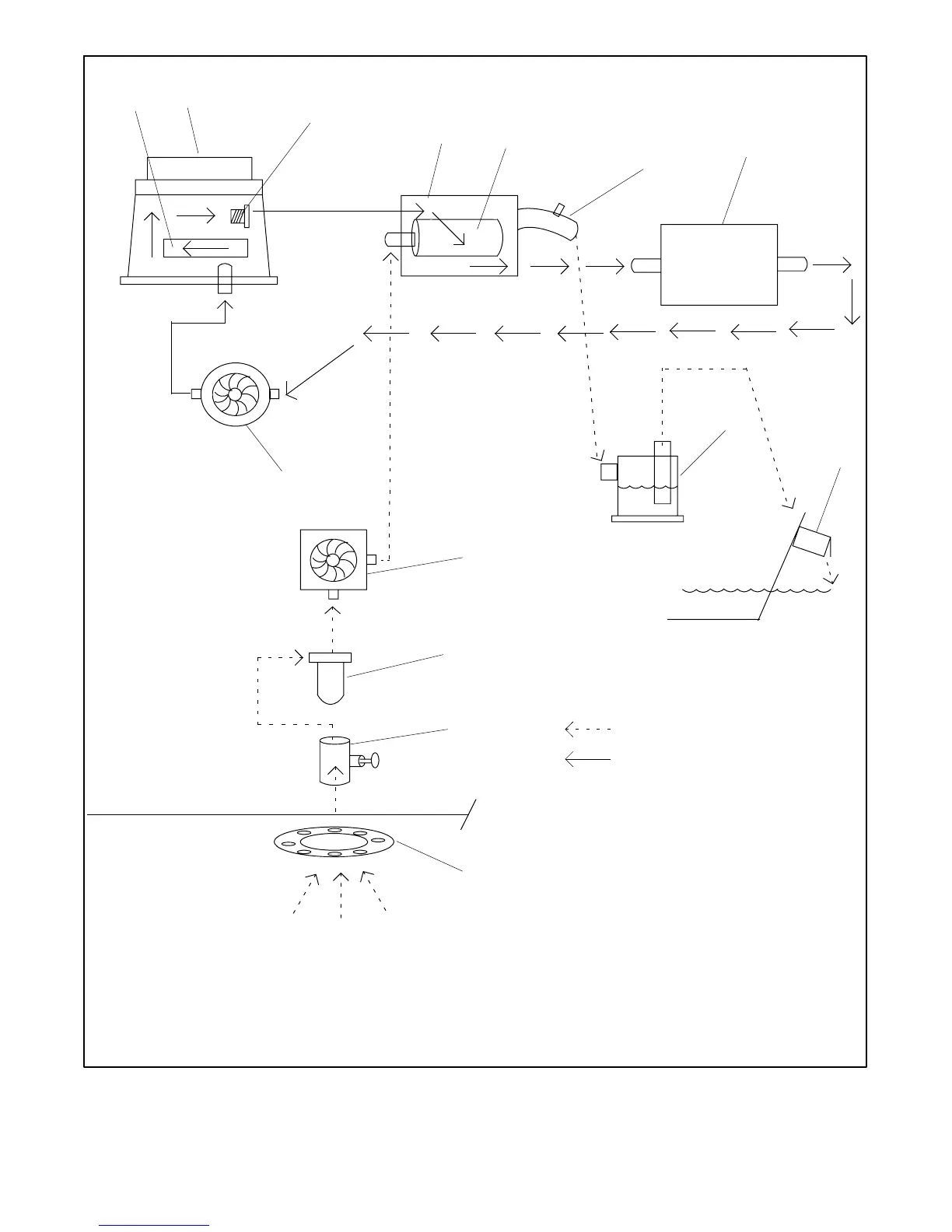

Figure 3-6 Typical Closed/Heat Exchanger Cooling System (40--99EOZD(C)J/33--80EFOZD(C)J Models)
