TP-7102 3/20 45Section3 RDC2ControllerOperation
3.17.3 RBUS Information Submenu
The RBUS Information menu contains settings f or
remote modules that communicate with the RDC2
controller using RBUS protocol. This includes the
following optional modules:
D Model RXT transfer switch
D Programmable Interface Module (PIM)
D Load Shed Kit or RXT combined interface/load
management board
tp6804
Modules Connected:
3
Module Timeouts:
1234
Net Cycle Time:
123ms
Module Errors:
1
<-- Return
RD
Remote - - >
Devices
See Figure 3-21.
Networking- - >
Information
Networking- - >
Status
RBUS - - >
Information
<- - Return
Networking- - >
Configuration

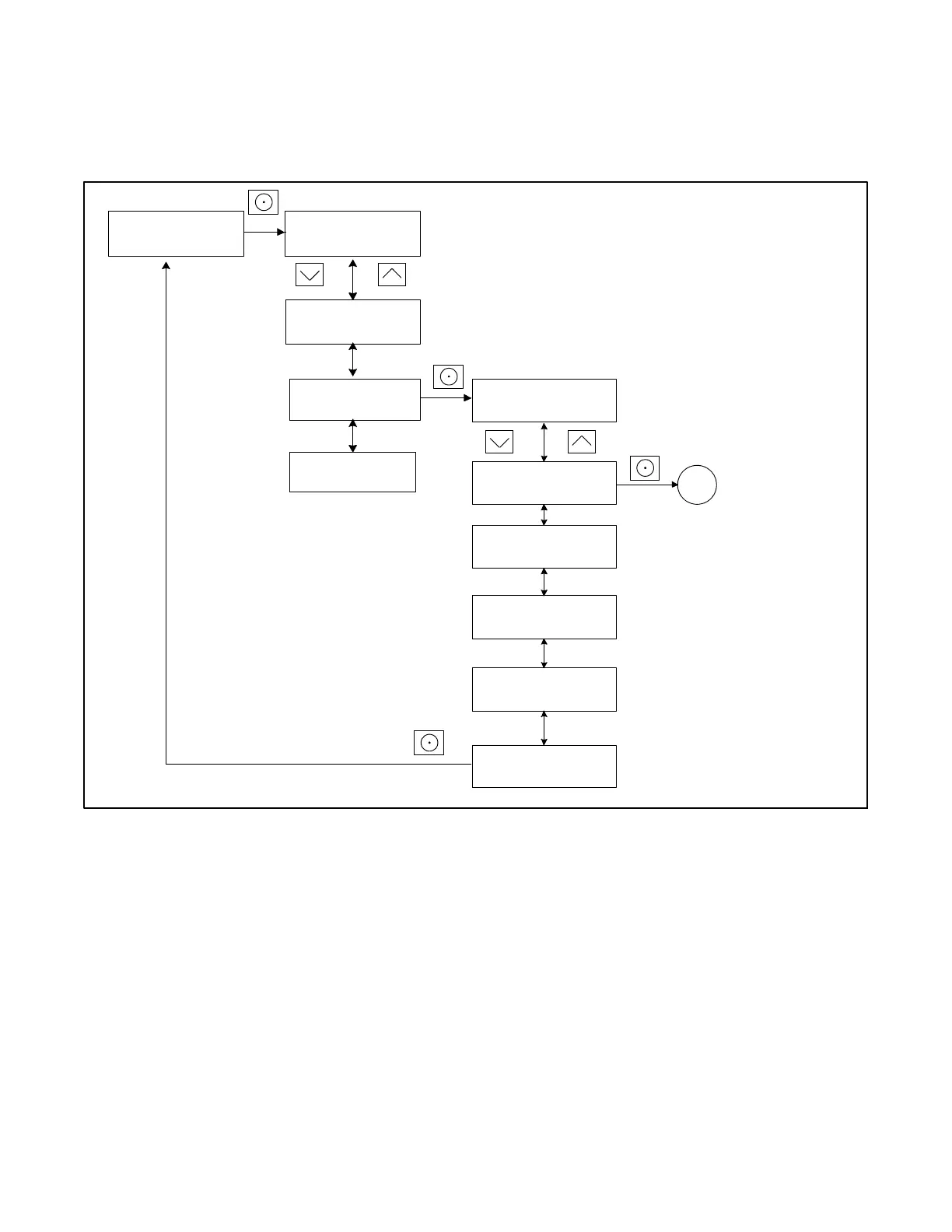

Figure 3-20 RBUS Information Submenu
