Kohler 5ECD Operation Manual

TP-6390 1/06 33Section 3 Scheduled Maintenance
Waterline
1
2
3
7
8
9
19
10
11
12
13
14
15
16
17
18
21
20
6
5
4
TP-5586-3
22
1. Mounting base
2. Retaining cap
3. Reed valve assembly
4. Silencer vertical lift 1.2 m (4 ft.) max.
5. Exhaust catalyst assembly distance above waterline. If less
than 23 cm (9 in.), siphon break is required.
6. Siphon break distance above waterline 30.5 cm (1 ft.) min.
7. Siphon break
8. Exhaust catalyst assembly
9. Heat exchanger (locations vary by model)
10. Coolant recovery tank
11. Locate coolant recovery tank at same height as heat exchanger
12. Seawater strainer
13. Seacock
14. Intake strainer
15. Engine-driven seawater pump
16. Exhaust hose pitch 1.3 cm per 30.5 cm (0.5 in. per ft.) min.
17. Water lock (optional)
18. Silencer distance from exhaust catalyst assembly 3 m (10 ft.)
max.
19. Silencer (customer-supplied)
20. Exhaust hose pitch 1.3 cm per 30.5 cm (0.5 in. per ft.) min.
21. Exhaust outlet distance above waterline 10 cm (4 in.) min.
22. Seawater outlet

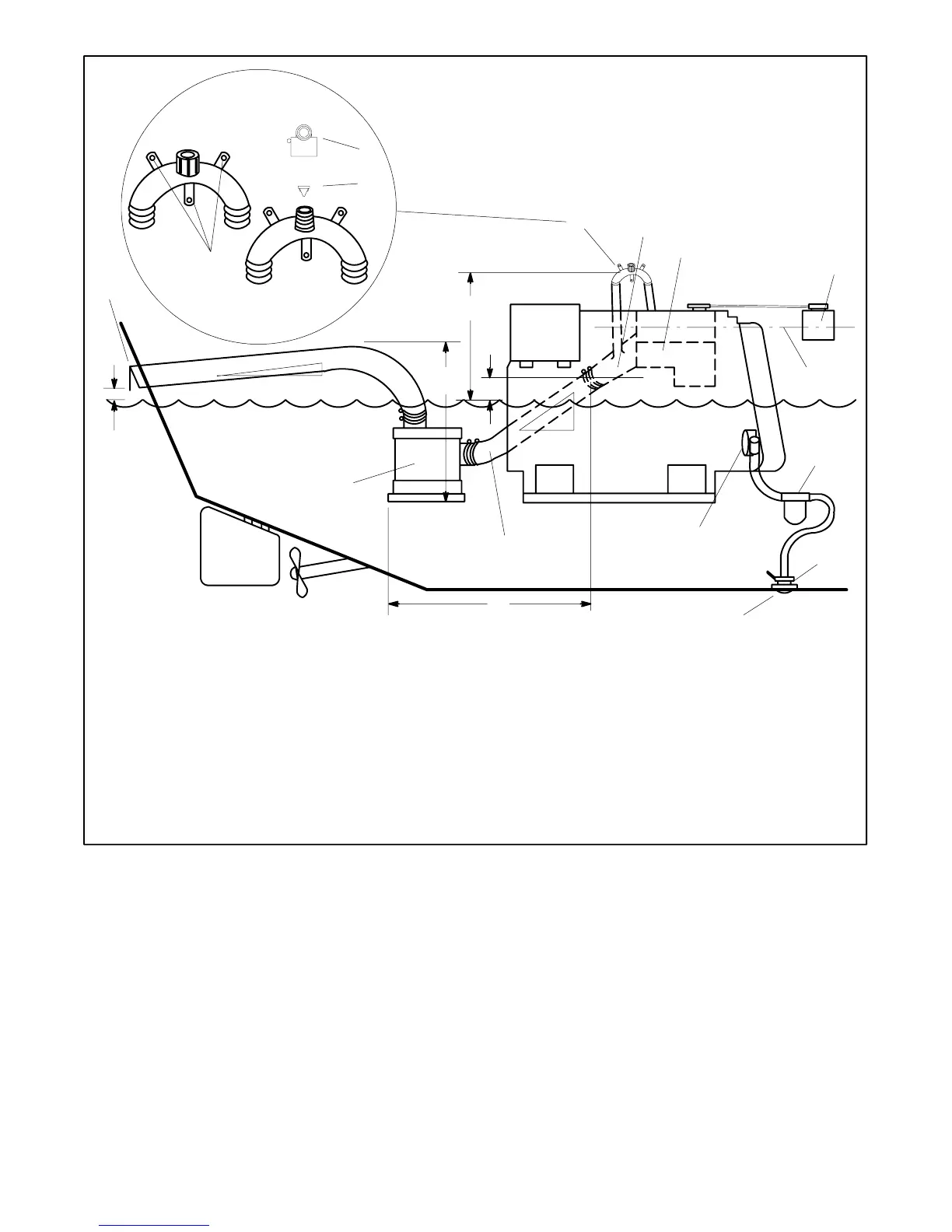

Figure 3-11 Siphon Break (Plastic “U” Type) Installation
Note: Consult the installation manual for complete
explanation of dimensions and other installation
considerations.

Kohler 5ECD Specifications

General

Power Output	5 kW
Frequency	60 Hz
Fuel Type	Diesel
Cylinders	2
Engine Type	4-cycle
Starter System	Electric
Phase	Single
