TP-6774 2/14a92 Section 9 Generator Disassembly/Reassembly
10. Loosen and remove the four controller mounting
screws securing the controller and carefully lift the
controller. See Figure 9-2.
Note: Be careful of the leads and harness
connected to the controller.

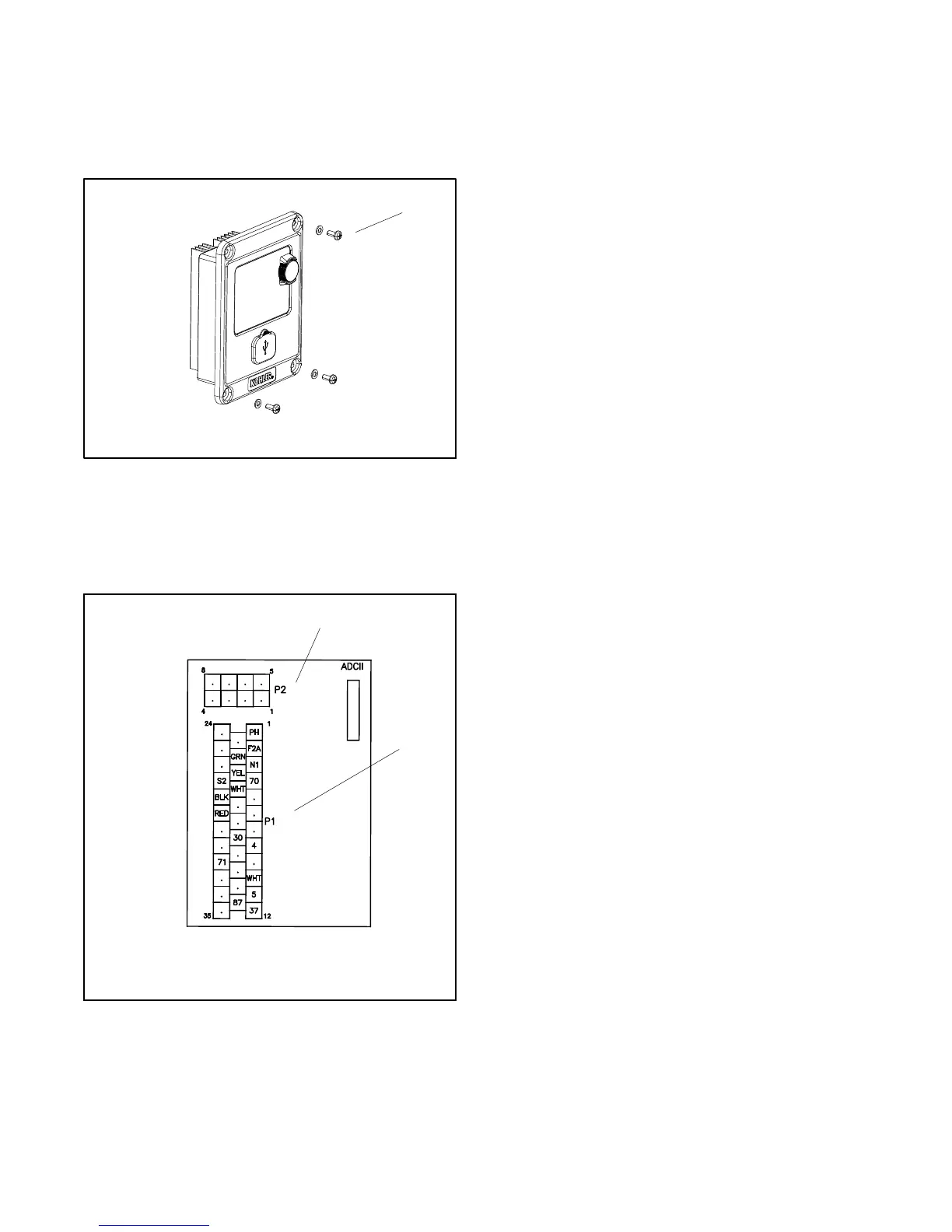

1. Controller mounting screws (4 ea.)
1
Figure 9-2 ADC IId Mounting Screws
11. Note the connections on the back of the controller
and then disconnect wiring harness plugs P1
(35-pin plug) and P2 (8-pin plug) from the ADC IId.
SeeFigure9-3.
1
GM79009-A
1. P1
2. P2
2
Figure 9-3 Controller Connections
12. Refer to Figure 9-4 while performing steps 13
to 20.
13. Remove the controller.
14. Remove the junction box controller panel.
15. Disconnect the generator output leads from the
circuit breakers.
16. Disconnect the LO and GRD lead connections.
17. Disconnect the leads to the fuses.
18. Disconnect the connectors to the preheat relays.
19. Disconnect the AC lead connections and the P4
connector to the battery charging module.
20. Remove the junction box from the four
vibromounts.
