Kohler Command PRO CH270 Service Manual

1.6
Section 1
Safety and General Information
Dimensions in millimeters.
Inch equivalents shown in ( ).

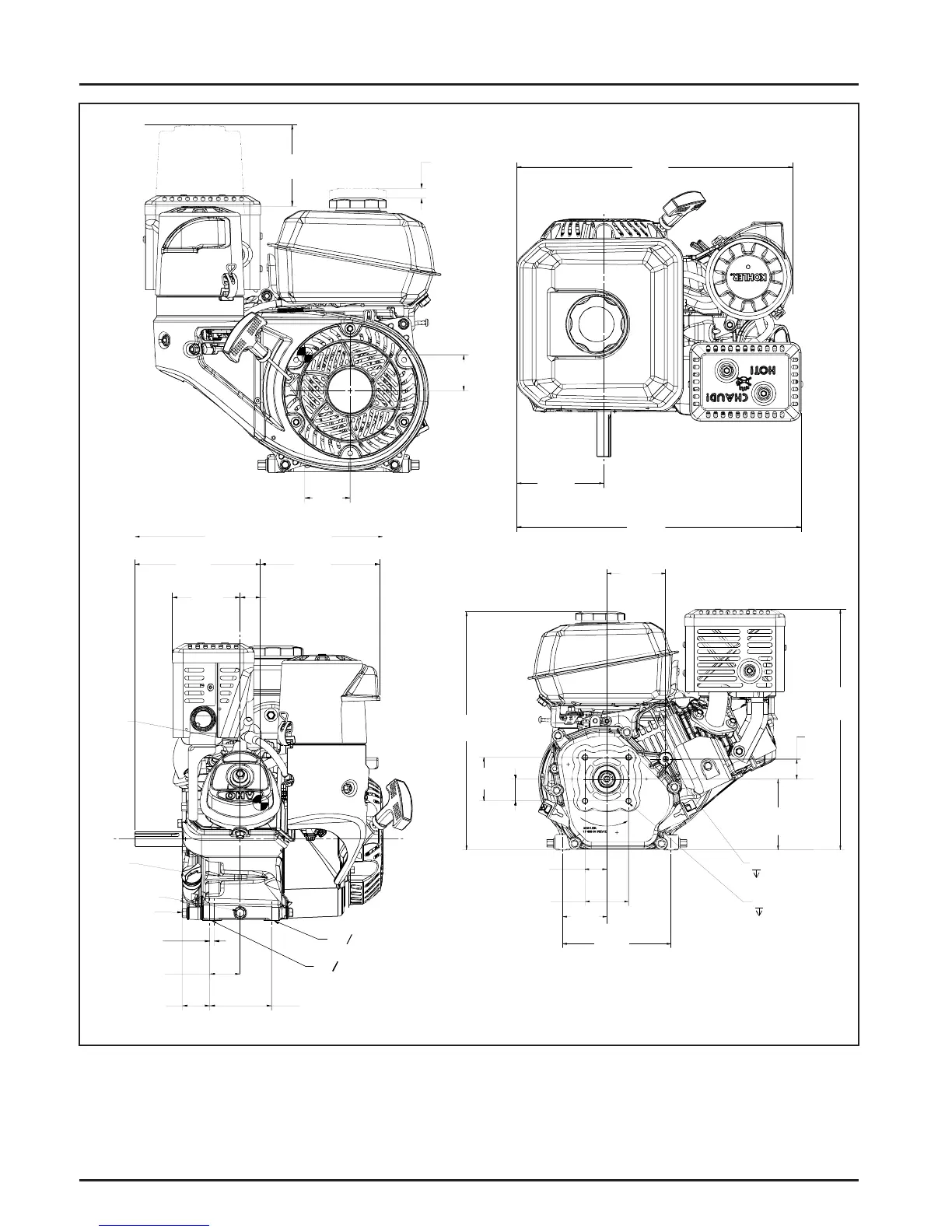

Figure 1-5. Typical Engine Dimensions-CH270.
373.53
(14.706)
SPARK
PLUG
118.03
(4.647)
384.87
(15.153)
47.11
(1.855)
12.50
(0.492)
GAS CAP
REMOVAL
AIR CLEANER
COVER REMOVAL
106.00
(4.173)
58.75
(2.313)
322.25
(12.687)
STRAIGHT PTO
163.28
(6.428)
155.03
(6.104)
26.48
(1.043)
88.23
(3.474)
OIL
FILL
OIL
DRAIN PLUG
MOUNTING
FACE
2X 0 10.00
(0.394)
2X 0 10.00 x 15.50 SLOT
(0.394 x 0.610)
79.99
(3.149)
35.70
(1.406)
39.33
(1.548)
5.50
(0.217)
162.00
(6.378)
66.00
(2.598)
65.08
(2.562)
32.55
(1.281)
88.00
(3.465)
360.57
(14.196)
30.00
(1.181)
106.00
(4.173)
M8 x 1.25-6H
THRU
4X M8 x 1.25-6H
15.00 (0.591)
356.46
(14.034)
65.10
(2.563)
32.55
(1.281)

Kohler Command PRO CH270 Specifications

General

Compression Ratio	8.5:1
Fuel System	Carburetor
Starter	Recoil
Engine Type	4-cycle, gasoline, OHV, single-cylinder
Power	7.0 HP (5.2 kW) @ 3600 RPM
Oil Capacity	0.6 L (0.63 U.S. qt.)
Ignition System	Electronic
