8.6
Section 8
Electrical System and Components
Battery Charging Systems
General
These engines may be equipped with a 3 amp, 4 amp, 10 amp or 18 amp regulated ba ery charging system. Refer
to the appropriate wiring diagram for troubleshooting and servicing your system.

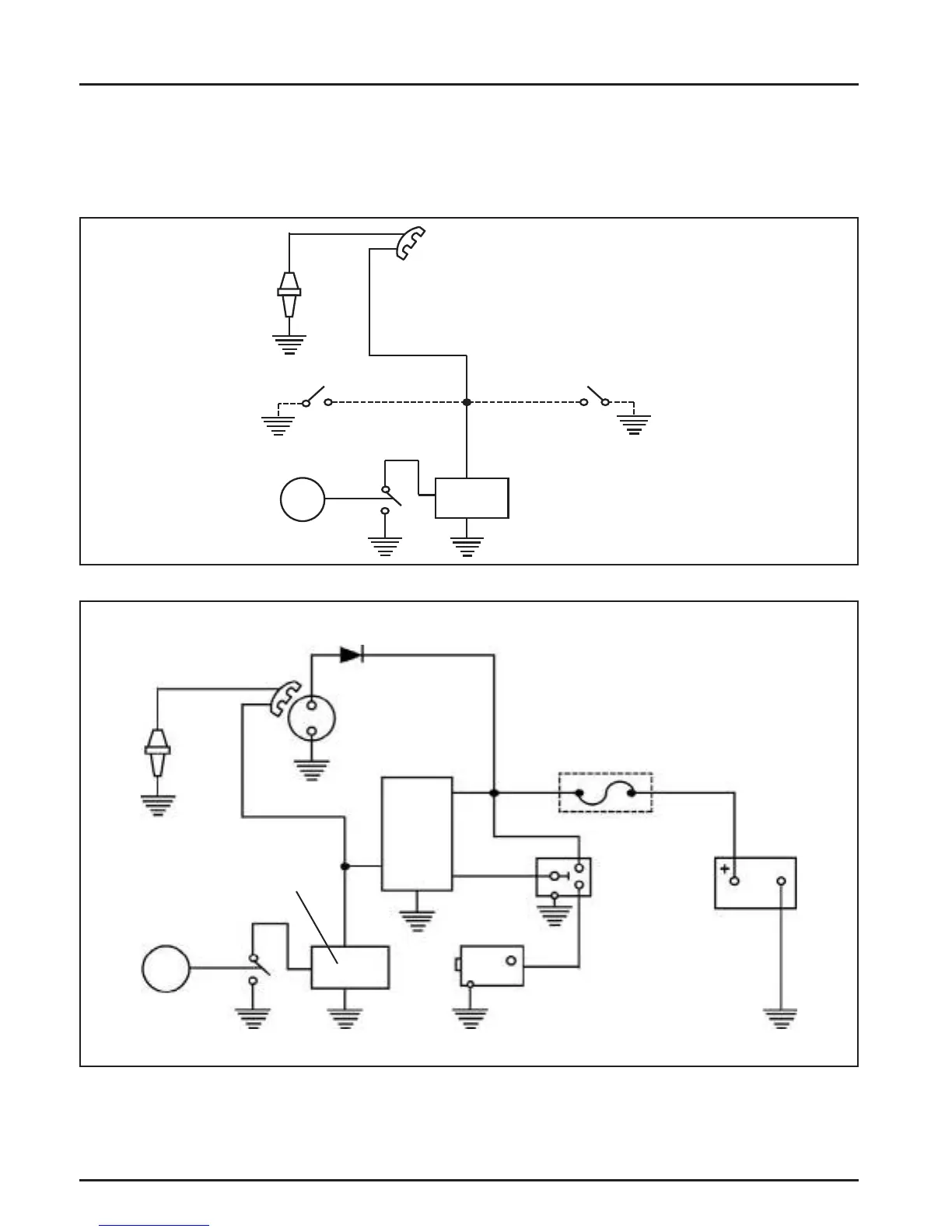

Figure 8-5. Wiring Diagram, Retractable Starter.
Figure 8-6. Wiring Diagram-3/4 Amp Charging System, Rectifi ed Only.
Ignition
Module
Ignition
Module
Spark
Plug
Spark
Plug
Oil Float
Switch
Oil Float
Switch
Oil Control
Module
Oil Control
Module
Optional Micro
Shut Down
Switch
Optional Red
Ignition Switch
Key
Switch
Battery
Fuse
Relay
Starter
Motor
12 Volt
Battery
Diode
Stator
