Kohler Command PRO CH270 - Center Screw and Drive Plate

7.4
Section 7
Retractable Starter
Friction
Friction
Spring
Spring
Drive Plate
Drive Plate

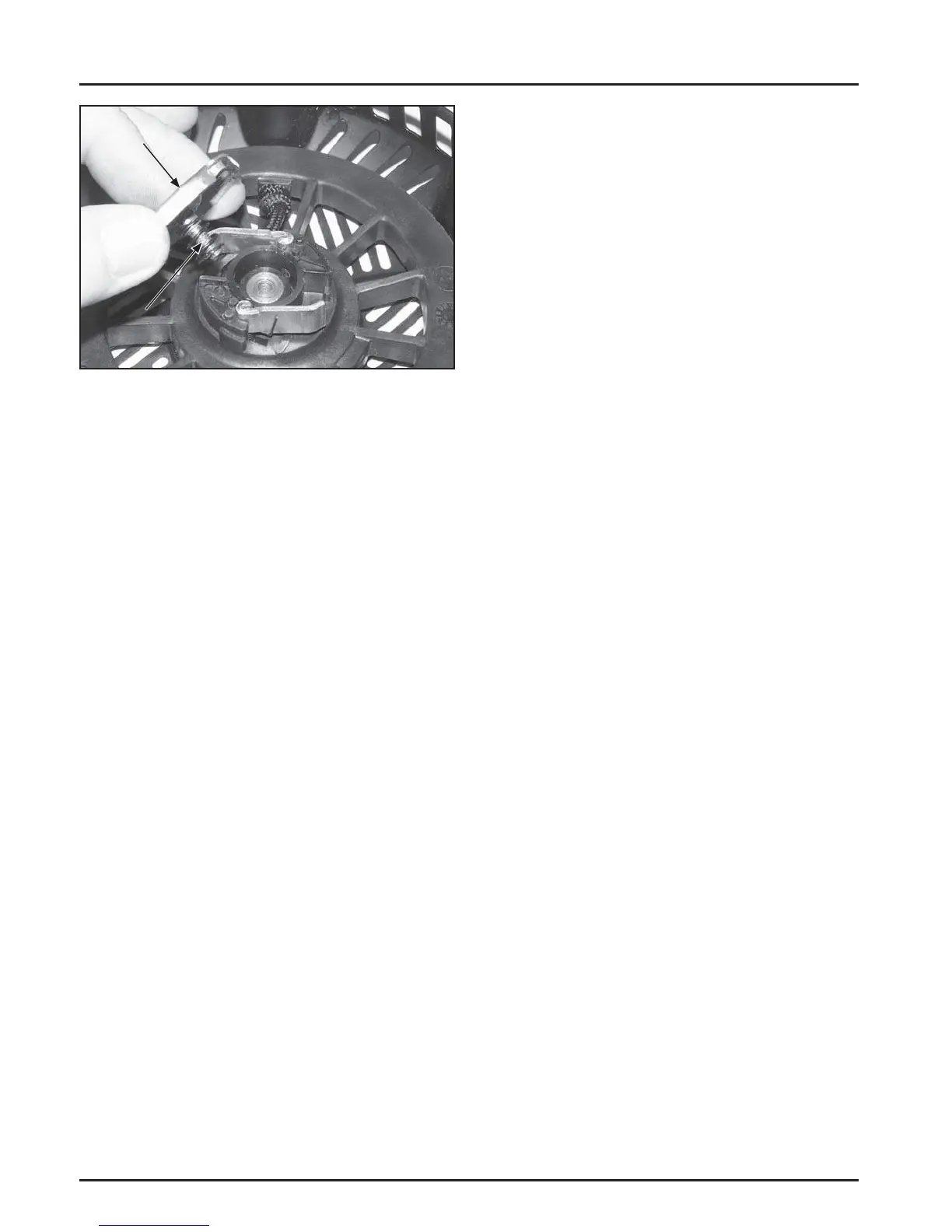

Figure 7-8. Center Screw and Drive Plate.
7. Rehook the slack in the rope into the notch of the
pulley and rotate the pulley counterclockwise
(viewed from pawl side) to re-tension the spring
(approximately 4 full turns).
