Kohler Command PRO CH270 Service Manual

9.6
Section 9
Disassembly
4. Remove the hex fl ange screws securing the lower
shield and remove the shield. See Figures 9-23
and 9-24.

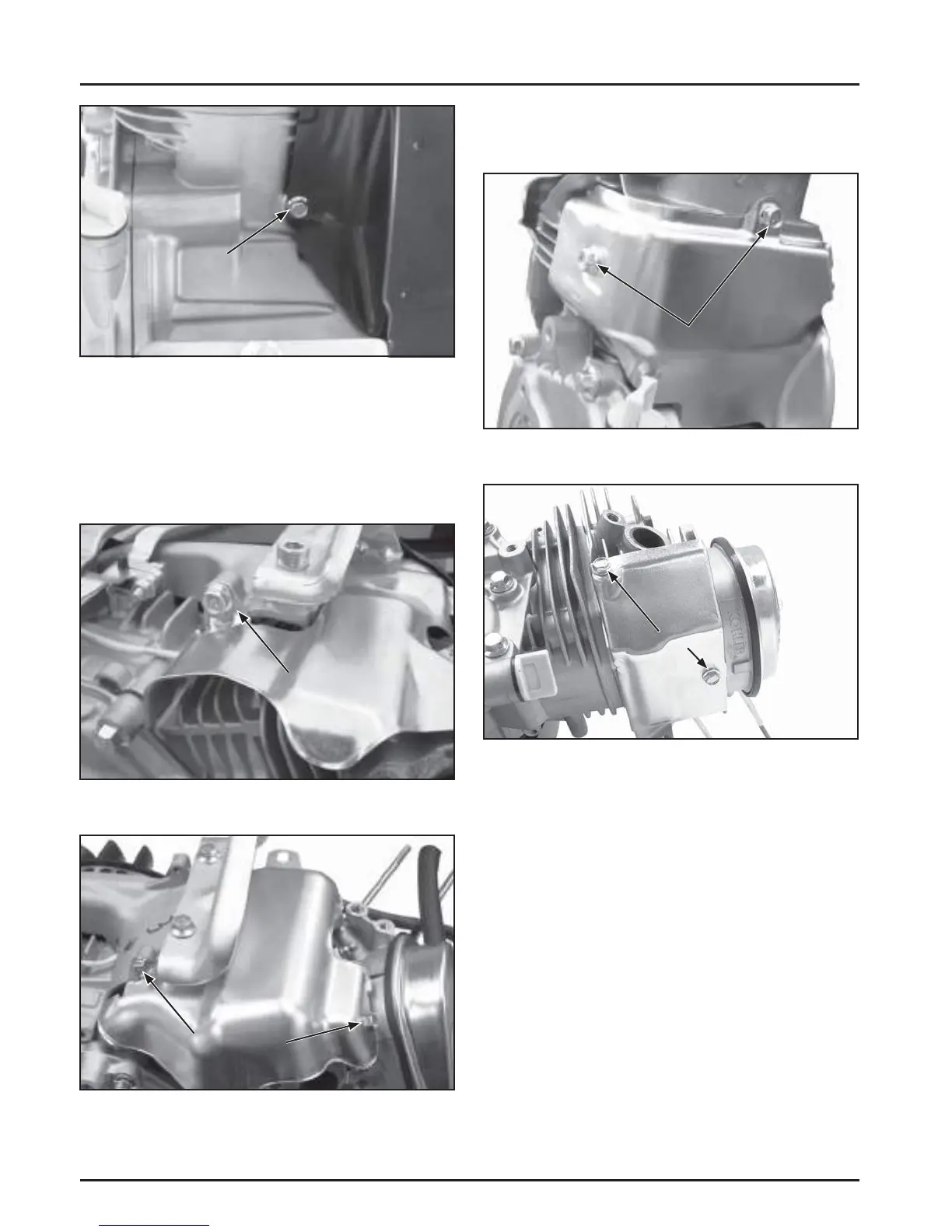

Figure 9-23. Remove CH270 Lower Shield Hex
Flange Screws.
Figure 9-24. Remove CH395, CH440 Lower Shield
Hex Flange Screws.
Remove Electrical Wiring, Micro Shut
Down Switch & Bracket and Fuel Tank
Brackets
1. Disconnect the wiring harness bullet connectors
for the Oil Sentry™ fl oat switch and module.
Remove the mounting screw securing the module
to the fuel tank bracket. See Figure 9-25.
Hex
Hex
Screw
Screw
Figure 9-20. Remove CH395, CH440 Blower
Housing Hex Flange Screw Under Cylinder Head.
2. Remove the blower housing.
3. Remove the hex fl ange screws securing the upper
shield and remove the shield. See Figures 9-21 or
9-22.
Figure 9-21. Remove CH270 Upper Shield Hex
Flange Screws.
Figure 9-22. Remove CH395, CH440 Upper Shield
Hex Flange Screws.
Hex Screw
Hex Screw
Hex Screws
Hex Screws
Hex Screws
Hex Screws
Hex Screws
Hex Screws

Kohler Command PRO CH270 Specifications

General

Compression Ratio	8.5:1
Fuel System	Carburetor
Starter	Recoil
Engine Type	4-cycle, gasoline, OHV, single-cylinder
Power	7.0 HP (5.2 kW) @ 3600 RPM
Oil Capacity	0.6 L (0.63 U.S. qt.)
Ignition System	Electronic
