Section 11
Reassembly
11.12
7. Install a new gasket (dry) onto the housing and
attach the cover with the four mounting screws,
so the Oil Fill and Oil Level port locations are
positioned exactly as shown. Torque the screws to
20-24 N·m (177-212 in. lb.).

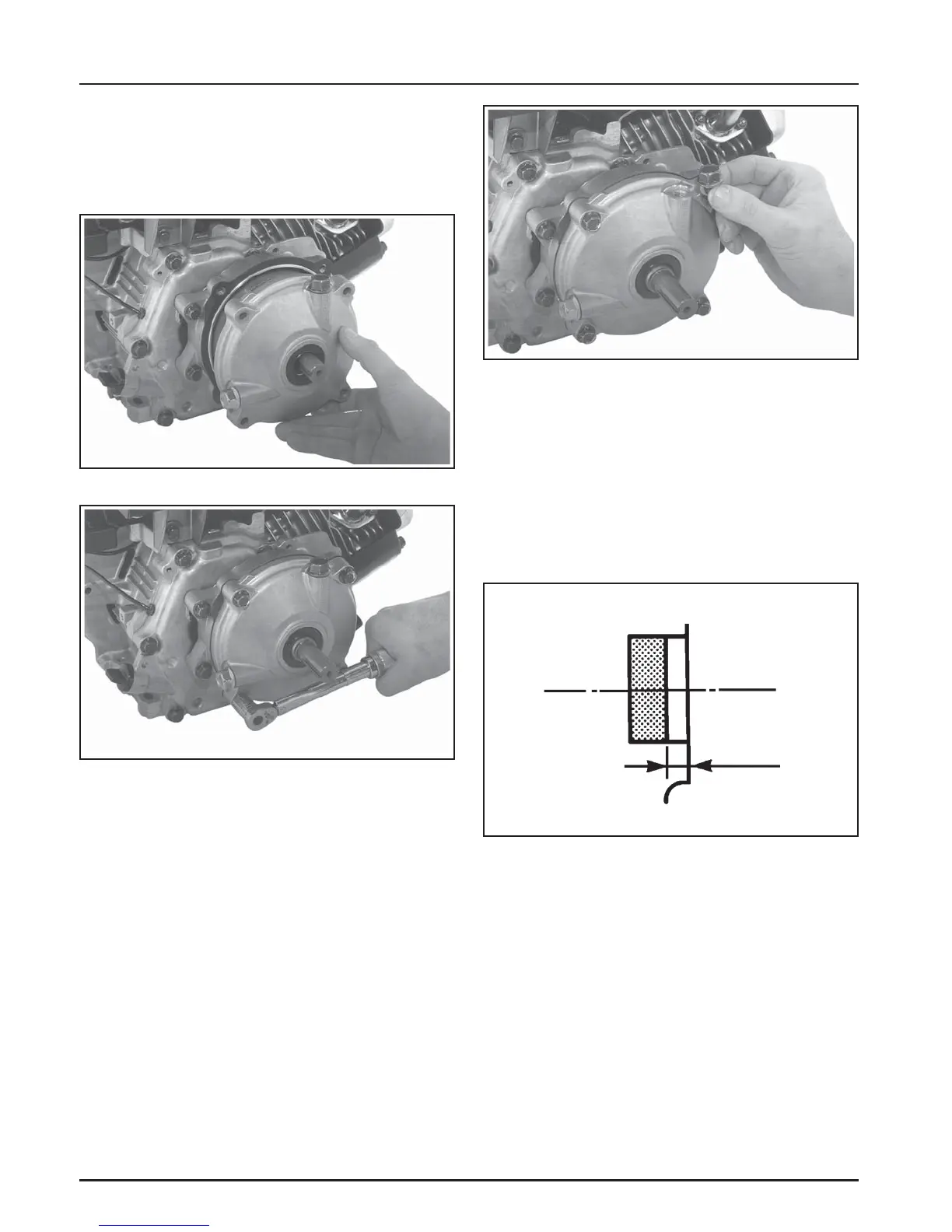

Figure 11-44. Installing Cover Assembly.
Figure 11-45. Torquing Cover Mounting Screws.
8. Add oil. Use the same weight oil as in the engine.
Fill through the fill plug hole (on top) until oil is
even with bottom of level plug hole (on side).
Capacity=0.15 liter (5.02 fl. oz.).
9. Install the level plug and fill plug into their
respective locations. The fill plug contains a vent
hole and must be installed on top. See Figure
11-46. Torque the plugs to 15-19 N·m
(133-168 in. lb.).
Figure 11-46. Fill/Vent Plug Installation.
CS8.5-12
1. If any bearings were removed, press the new
bearing(s) into the housing so the manufacturer’s
marks are visible. Pre-lube the bearings with
engine oil on installation.
2. Install a new oil seal in cover, to a depth of 2 mm
(0.08 in.) See figure 11-47. Apply a light coating of
lightweight lithium grease to the lip of the seal.
Figure 11-47. Oil Seal Installation Depth.
2 mm
(0.08 in.)
