Kohler Command Pro EFI ECH940

Specifi cations
8 62 690 13 Rev. AKohlerEngines.com

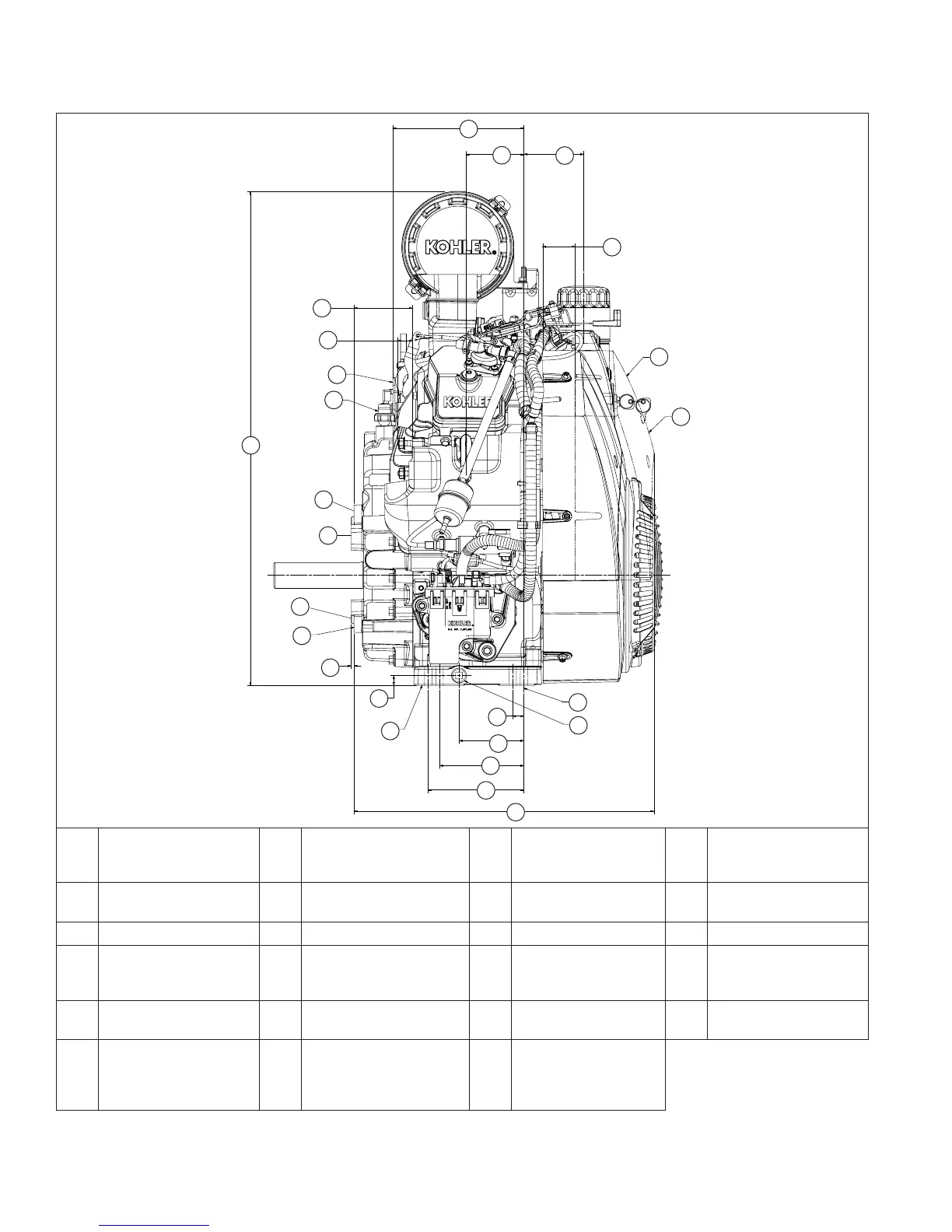

Engine Dimensions with Heavy-Duty Air Cleaner - Opposite Starter Side
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
R
Q
T
U
S
V
W
A 184.9 mm (7.28 in.) B
81.8 mm (3.22 in.)
Center Line Spark
Plug
C
84.0 mm (3.31 in.)
Oil Filter
D
45.6 mm (1.80 in.)
Cylinder #2 Shroud
Removal
E Cylinder #2 Shroud F
Access to
Oil Cooler
G Mounting Hole "A" H
Oil Drain Plug
1/2 NPT Inch
I 16.0 mm (0.63 in.) J 91.5 mm (3.60 in.) K 119.0 mm (4.69 in.) L 135.0 mm (5.32 in.)
M
422.8 mm (16.65 in.)
Cylinder #2 Shroud
Removal
N
Engine Mounting
Surface
O 13.88 mm (0.55 in.) P
4 X 4.0 mm (0.16 in.)
Pilot Height
Q
PTO Mounting
Surface
R Pilot Surface S 696.3 mm (27.41 in.) T Oil Pressure Switch
U Lifting Point V
4 X 20.6 mm
(0.81in.)
Muffl er Mounting Stud
Height
W
82.4 mm (3.24 in.)
Exhaust Port #2
