Reassembly
62 690 13 Rev. A KohlerEngines.com
Install Fuel Pump Module (FPM)
WARNING
Explosive Fuel can cause fi res and severe
burns.
Do not fi ll fuel tank while engine is hot or
running.
Gasoline is extremely fl ammable and its vapors can
explode if ignited. Store gasoline only in approved
containers, in well ventilated, unoccupied buildings,
away from sparks or fl ames. Spilled fuel could ignite
if it comes in contact with hot parts or sparks from
ignition. Never use gasoline as a cleaning agent.

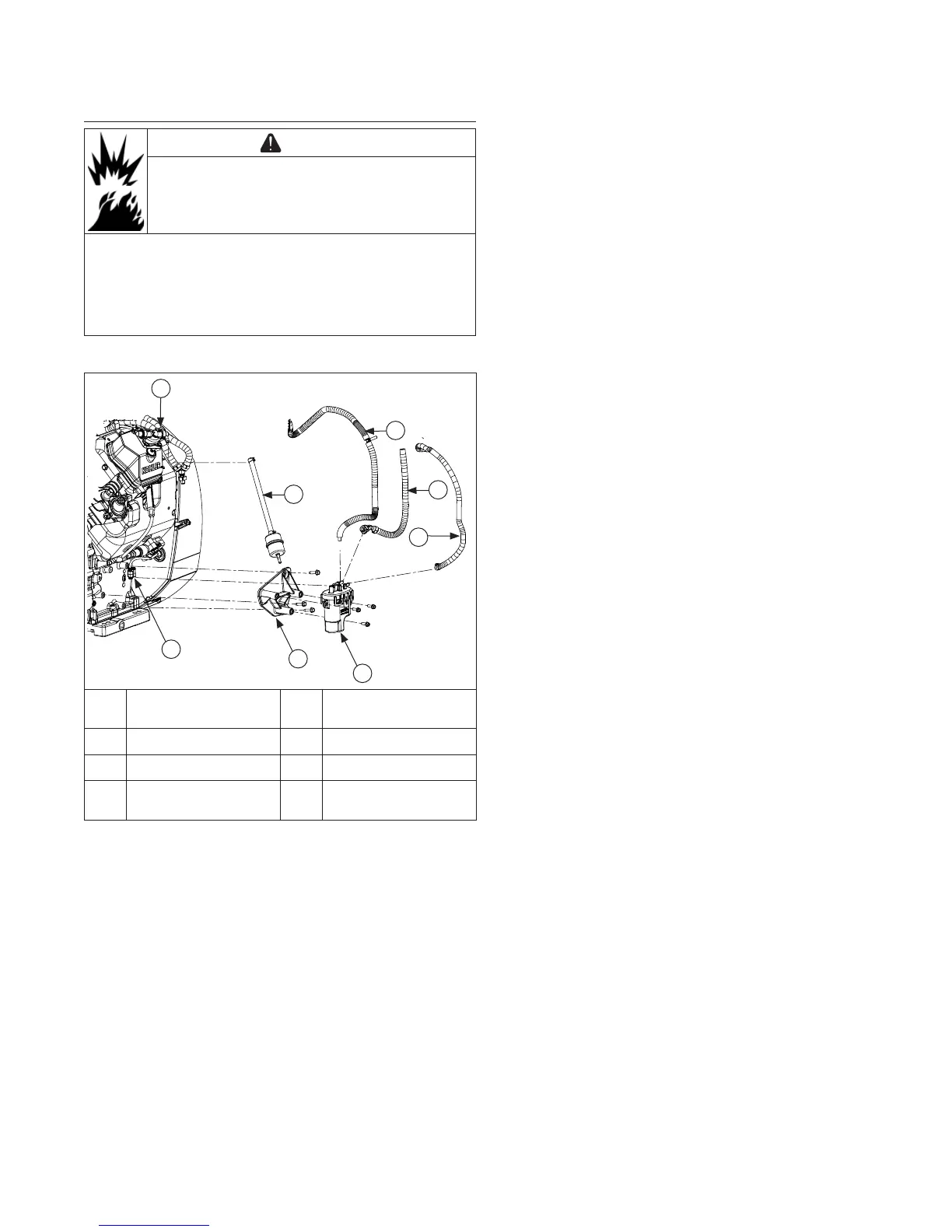

FPM Components
B
A
E
D
F
H
G
C
A Fuel Pump B
Inlet Fuel
Line
C Electrical Connector D FPM Baffl e
E FPM F Vent Hose
G
High Pressure Fuel
Line
H
Outlet Fuel Line to
FPM
NOTE: Ensure all parts are clean, undamaged and free
of debris and make sure electrical connector has
seal in place.
NOTE: FPM pins should be coated with a thin layer of
electrical grease to prevent fretting and
corrosion and may be reapplied if FPM is being
reused.
1. Install screws to secure FPM baffl e to crankcase.
Torque screws to 11.3 N·m (100 in. lb.).
2. If removed, push high pressure fuel line connector
onto FPM fi tting.
3. If Oetiker clamp was cut to remove inlet fuel line,
slide a new Oetiker clamp onto fuel line and connect
fuel line. Only use an Oetiker clamp pliers to crimp
Oetiker clamps. Oetiker clamp crimp must point up,
away from top of FPM and abrasion sleeve must be
positioned over Oetiker clamp.
4. Connect electrical connector to top of FPM. Ensure
grey locking tab is pulled out before connecting.
Push connector onto terminal until a click is heard,
then push in grey locking tab to lock connector.
5. Install FPM to baffl e using screws. Torque screws to
9.2 N·m (81 in. lb.).
6. Install vent line to top of FPM.
7. Install fuel lines into clip and secure to barrel baffl e.
