Kohler Command Pro EFI ECH980

Specifi cations
1162 690 13 Rev. A KohlerEngines.com

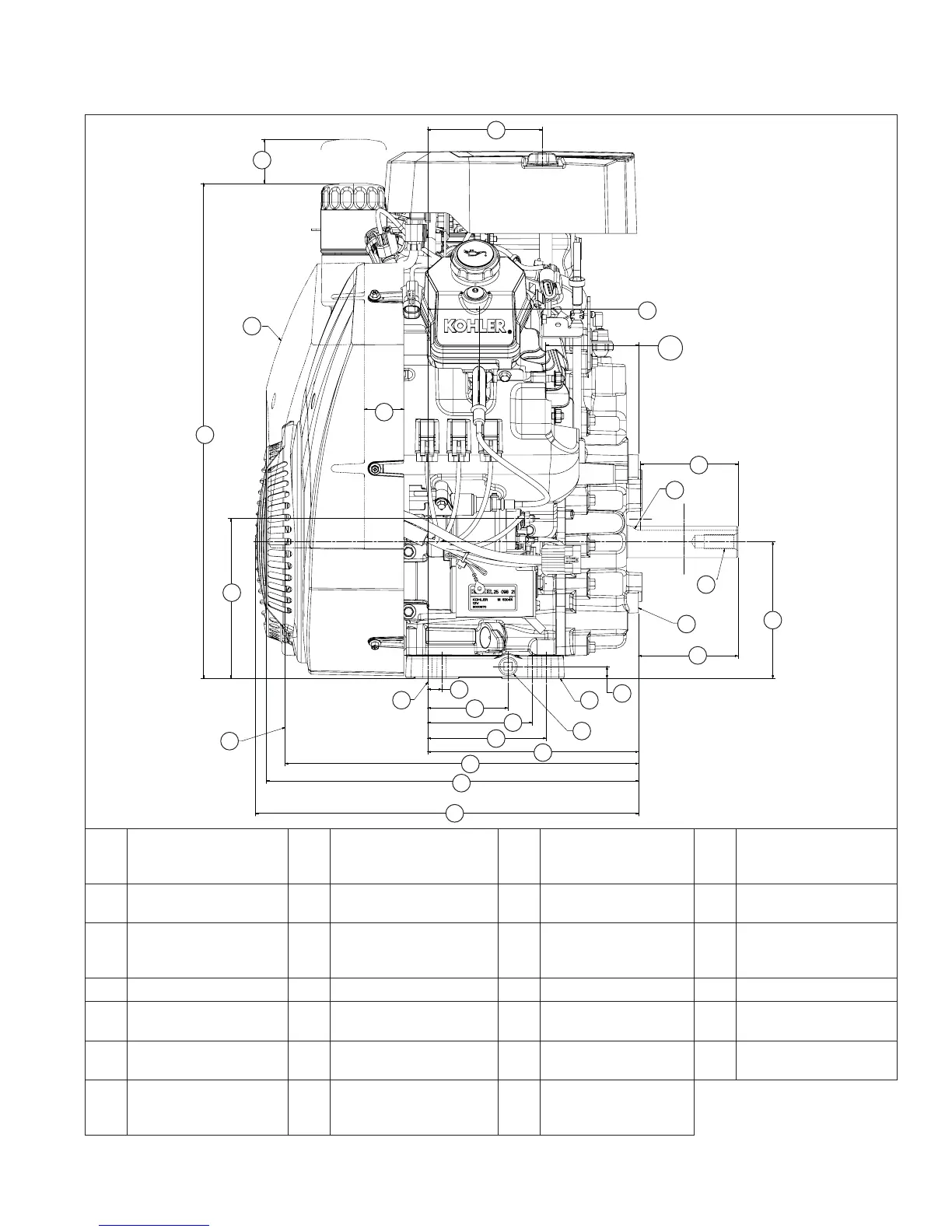

Engine Dimensions with Low-Profi le Air Cleaner - Starter Side
A
B
C
E
F
I
G
H
L
K
J
M
N
O
P
Q
S
R
T
U
V
D
W
X
Y
AA
Z
A 130.4 mm (5.13 in.) B
50.0 mm (1.97 in.)
Oil Filter Removal
C Cylinder #1 Shroud D
45.0 mm (1.77 in.)
Cylinder #1 Shroud
Removal
E 562.7 mm (22.16 in.) F
181.9 mm (7.16 in.)
Starter Stud
G Grass Screen H 435.13 mm (17.13 in.)
I
422.8 mm (16.65 in.)
Cylinder #1 Shroud
Removal
J 401.5 mm (15.81 in.) K 239.6 mm (9.44 in.) L 135.0 mm (5.32 in.)
M 119.0 mm (4.69 in.) N 91.5 mm (3.6 in.) O Mounting Hole "A" P 16.0 mm (0.63 in.)
Q
Oil Drain Plug
1/2 NPT Inch
R
Engine Mounting
Surface
S 13.88 mm (0.55 in.) T 155.6 mm (6.13 in.)
U 113.1 mm (4.45 in.) V
PTO Mounting
Surface
W
5/8-18 UNF-2B in.
38.1 mm (1.5 in.) Deep
X 12.7 mm (0.50 in.)
Y 110.7 mm (4.36 in.) Z
58.4 mm (2.30 in.)
Center Line
Spark Plug
AA
105.4 mm (4.15 in.)
Exhaust Port #1
