Kohler Command Pro EFI ECH980

Specifi cations
562 690 13 Rev. A KohlerEngines.com

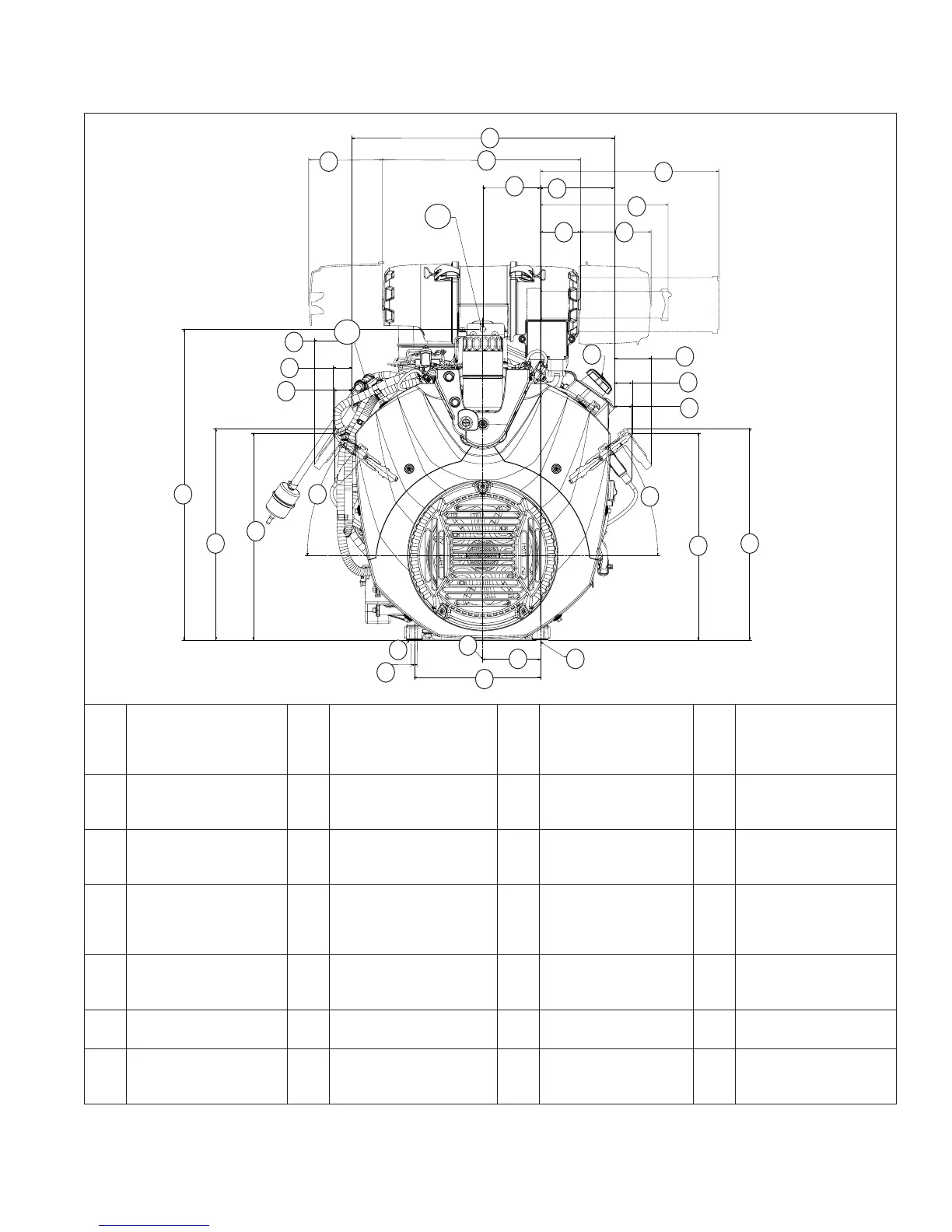

Engine Dimensions with Heavy-Duty Air Cleaner - Flywheel Side
AB
A
C
E
D
B
G
F
U
T
S
R
Q
P
O
M
N
L
K
J
H
I
N
O
P
V
W
X
Y
Z
AA
A 483.0 mm (19.02 in.) B
135.0 mm (5.32 in.)
Rain Cap Cover
Removal
C 365.5 mm (14.39 in.) D
328.69 mm (12.94
in.)
Primary Air Filter
Element Removal
E
105.99 mm (4.17 in.)
Lifting Point
F 136.17 mm (5.36 in.) G 74.03 mm (2.92 in.) H
235.39 mm (9.27 in.)
Safety Air Filter
Element Removal
I
130.0 mm (5.12 in.)
Air Filter
Cover Removal
J Oil Fill K
68.62 mm (2.70 in.)
Spark Plug Boot
Removal
L
33.28 mm (1.31 in.)
Spark Plug Removal
M
32.22 mm (1.27 in.)
Spark Plug Boot
N 37° O
381.05 mm (15.00 in.)
Spark Plug Removal
P
389.59 mm (15.34
in.)
Spark Plug Boot
Removal
Q Mounting Hole "A" R 106.0 mm (4.17 in.) S 232.0 mm (9.13 in.) T
8 X Ø 10.7 mm (0.42
in.)
Thru Mounting Holes
U
Engine Mounting
Surface
V Center Line Engine W
572.48 mm (22.54 in.)
Lifting Point
X
32.7 mm (1.29 in.)
Spark Plug Boot
Y
34.62 mm (1.36 in.)
Spark Plug Removal
Z
69.97 mm (2.76 in.)
Spark Plug Boot
Removal
AA
Mechanical Fuel
Pump
AB Lifting Point
